Datasheet LT1991 (Analog Devices) - 4
| 制造商 | Analog Devices |
| 描述 | Precision, 100µA Gain Selectable Amplifier |
| 页数 / 页 | 28 / 4 — ELECTRICAL. CHARACTERISTICS The. denotes the specifications which apply … |
| 文件格式/大小 | PDF / 782 Kb |
| 文件语言 | 英语 |

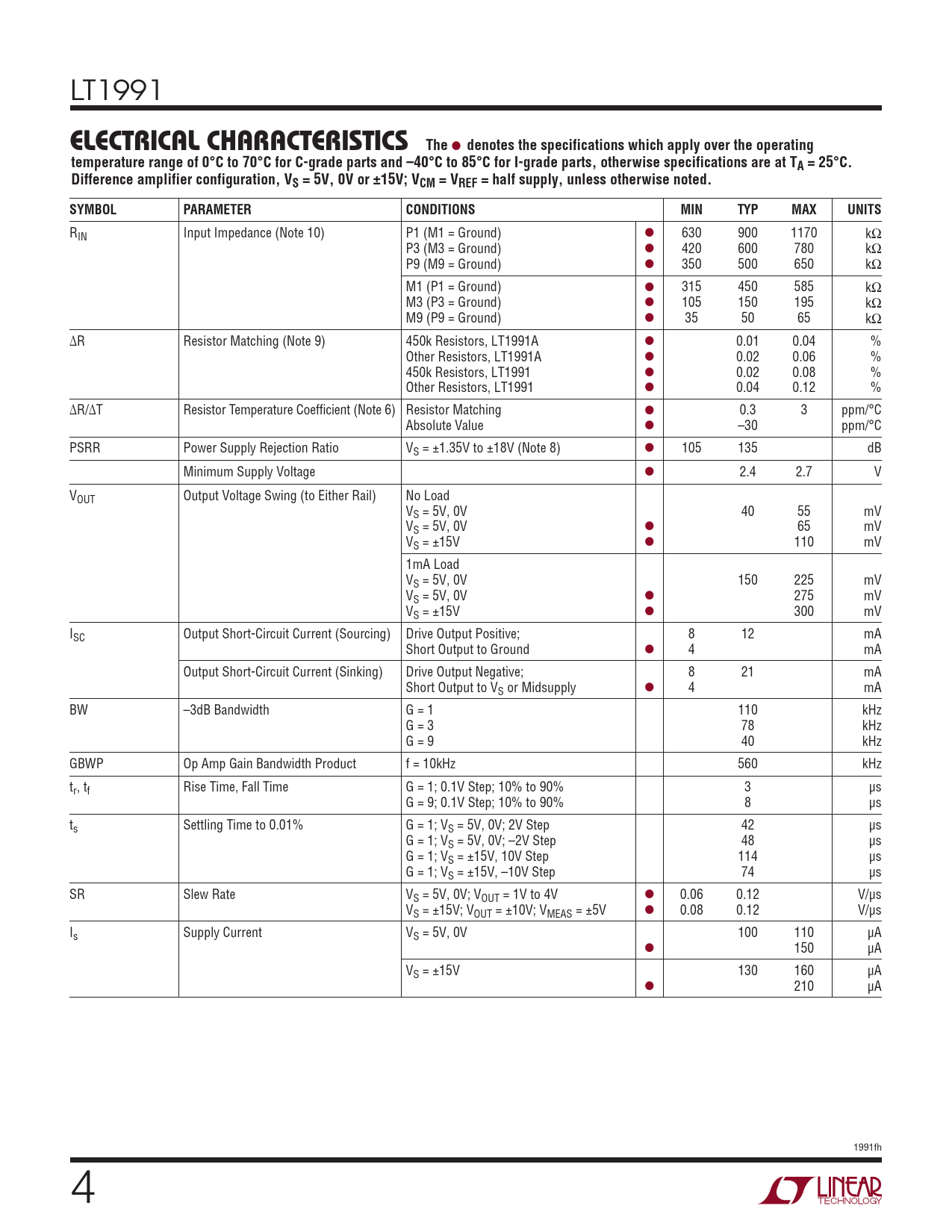

ELECTRICAL. CHARACTERISTICS The. denotes the specifications which apply over the operating
该数据表的模型线
- LT1991ACDD#PBF LT1991ACDD#TRPBF LT1991ACMS#PBF LT1991ACMS#TRPBF LT1991AIDD#PBF LT1991AIDD#TRPBF LT1991AIMS#PBF LT1991AIMS#TRPBF LT1991CDD#PBF LT1991CDD#TRPBF LT1991CMS#PBF LT1991CMS#TRPBF LT1991HDD#PBF LT1991HDD#TRPBF LT1991HMS#PBF LT1991HMS#TRPBF LT1991IDD#PBF LT1991IDD#TRPBF LT1991IMS#PBF LT1991IMS#TRPBF
文件文字版本
LT1991
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the operating temperature range of 0°C to 70°C for C-grade parts and –40°C to 85°C for I-grade parts, otherwise specifications are at TA = 25°C. Difference amplifier configuration, VS = 5V, 0V or ±15V; VCM = VREF = half supply, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
RIN Input Impedance (Note 10) P1 (M1 = Ground) l 630 900 1170 kΩ P3 (M3 = Ground) l 420 600 780 kΩ P9 (M9 = Ground) l 350 500 650 kΩ M1 (P1 = Ground) l 315 450 585 kΩ M3 (P3 = Ground) l 105 150 195 kΩ M9 (P9 = Ground) l 35 50 65 kΩ ∆R Resistor Matching (Note 9) 450k Resistors, LT1991A l 0.01 0.04 % Other Resistors, LT1991A l 0.02 0.06 % 450k Resistors, LT1991 l 0.02 0.08 % Other Resistors, LT1991 l 0.04 0.12 % ∆R/∆T Resistor Temperature Coefficient (Note 6) Resistor Matching l 0.3 3 ppm/°C Absolute Value l –30 ppm/°C PSRR Power Supply Rejection Ratio VS = ±1.35V to ±18V (Note 8) l 105 135 dB Minimum Supply Voltage l 2.4 2.7 V VOUT Output Voltage Swing (to Either Rail) No Load VS = 5V, 0V 40 55 mV VS = 5V, 0V l 65 mV VS = ±15V l 110 mV 1mA Load VS = 5V, 0V 150 225 mV VS = 5V, 0V l 275 mV VS = ±15V l 300 mV ISC Output Short-Circuit Current (Sourcing) Drive Output Positive; 8 12 mA Short Output to Ground l 4 mA Output Short-Circuit Current (Sinking) Drive Output Negative; 8 21 mA Short Output to VS or Midsupply l 4 mA BW –3dB Bandwidth G = 1 110 kHz G = 3 78 kHz G = 9 40 kHz GBWP Op Amp Gain Bandwidth Product f = 10kHz 560 kHz tr, tf Rise Time, Fall Time G = 1; 0.1V Step; 10% to 90% 3 µs G = 9; 0.1V Step; 10% to 90% 8 µs ts Settling Time to 0.01% G = 1; VS = 5V, 0V; 2V Step 42 µs G = 1; VS = 5V, 0V; –2V Step 48 µs G = 1; VS = ±15V, 10V Step 114 µs G = 1; VS = ±15V, –10V Step 74 µs SR Slew Rate VS = 5V, 0V; VOUT = 1V to 4V l 0.06 0.12 V/µs VS = ±15V; VOUT = ±10V; VMEAS = ±5V l 0.08 0.12 V/µs Is Supply Current VS = 5V, 0V 100 110 µA l 150 µA VS = ±15V 130 160 µA l 210 µA 1991fh 4 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
