Datasheet LT1494, LT1495, LT1496 (Analog Devices) - 3
| 制造商 | Analog Devices |
| 描述 | 1.5µA Max, Single, Dual and Quad Over-The-Top Precision Rail-to-Rail Input and Output Op Amps |
| 页数 / 页 | 16 / 3 — ELECTRICAL CHARACTERISTICS TA = 25. C, VS = 5V, 0V; VS = 3V, 0V; VCM = VO … |
| 文件格式/大小 | PDF / 265 Kb |
| 文件语言 | 英语 |

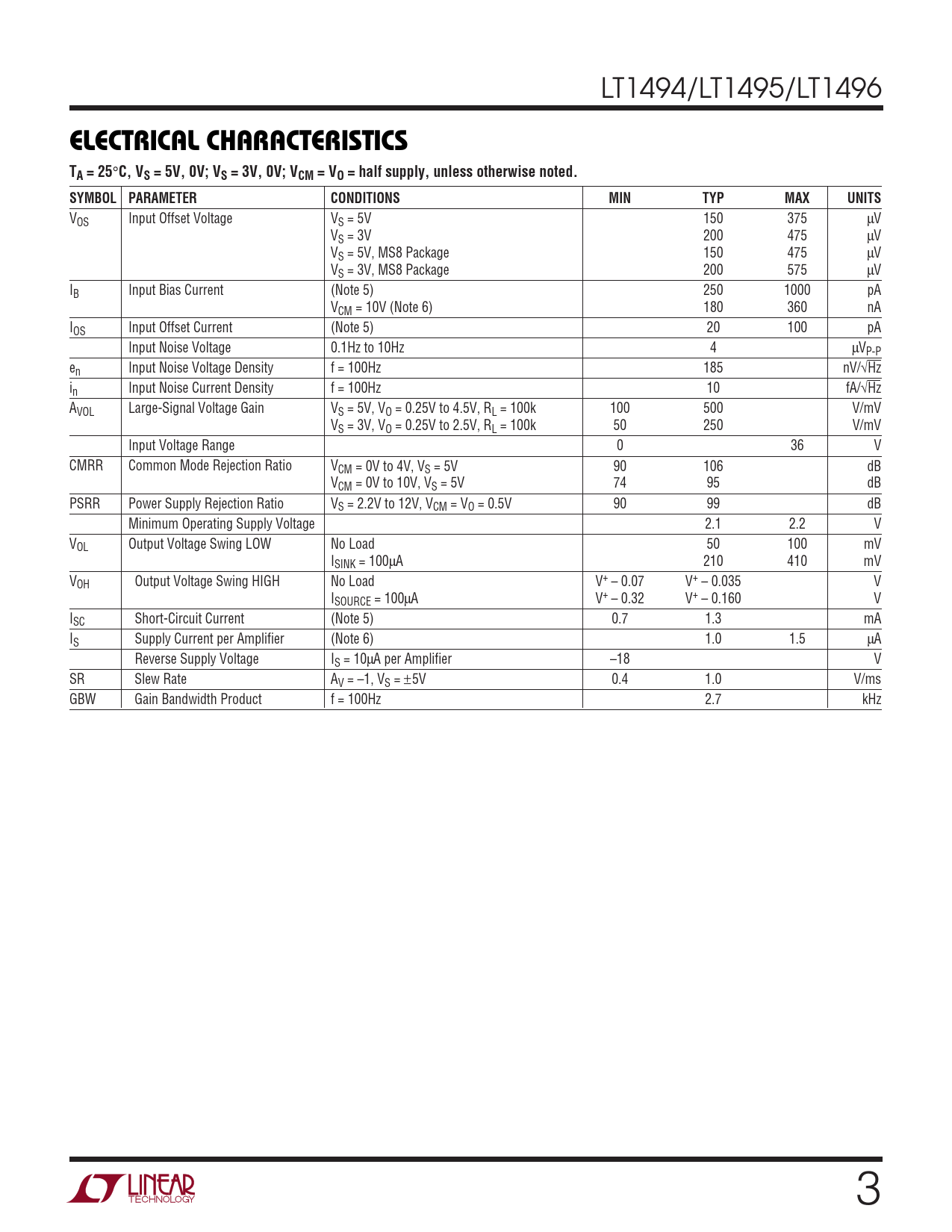

ELECTRICAL CHARACTERISTICS TA = 25. C, VS = 5V, 0V; VS = 3V, 0V; VCM = VO = half supply, unless otherwise noted
该数据表的模型线
- LT1494CMS8#PBF LT1494CMS8#TRPBF LT1494CN8#PBF LT1494CS8#PBF LT1494CS8#TRPBF LT1494HS8#PBF LT1494HS8#TRPBF LT1494IMS8#PBF LT1494IMS8#TRPBF LT1494IN8#PBF LT1494IS8#PBF LT1494IS8#TRPBF
文件文字版本
LT1494/LT1495/LT1496
ELECTRICAL CHARACTERISTICS TA = 25
°
C, VS = 5V, 0V; VS = 3V, 0V; VCM = VO = half supply, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VS = 5V 150 375 µV VS = 3V 200 475 µV VS = 5V, MS8 Package 150 475 µV VS = 3V, MS8 Package 200 575 µV IB Input Bias Current (Note 5) 250 1000 pA VCM = 10V (Note 6) 180 360 nA IOS Input Offset Current (Note 5) 20 100 pA Input Noise Voltage 0.1Hz to 10Hz 4 µVP-P en Input Noise Voltage Density f = 100Hz 185 nV/√Hz in Input Noise Current Density f = 100Hz 10 fA/√Hz AVOL Large-Signal Voltage Gain VS = 5V, VO = 0.25V to 4.5V, RL = 100k 100 500 V/mV VS = 3V, VO = 0.25V to 2.5V, RL = 100k 50 250 V/mV Input Voltage Range 0 36 V CMRR Common Mode Rejection Ratio VCM = 0V to 4V, VS = 5V 90 106 dB VCM = 0V to 10V, VS = 5V 74 95 dB PSRR Power Supply Rejection Ratio VS = 2.2V to 12V, VCM = VO = 0.5V 90 99 dB Minimum Operating Supply Voltage 2.1 2.2 V VOL Output Voltage Swing LOW No Load 50 100 mV ISINK = 100µA 210 410 mV VOH Output Voltage Swing HIGH No Load V+ – 0.07 V+ – 0.035 V ISOURCE = 100µA V+ – 0.32 V+ – 0.160 V ISC Short-Circuit Current (Note 5) 0.7 1.3 mA IS Supply Current per Amplifier (Note 6) 1.0 1.5 µA Reverse Supply Voltage IS = 10µA per Amplifier –18 V SR Slew Rate AV = –1, VS = ±5V 0.4 1.0 V/ms GBW Gain Bandwidth Product f = 100Hz 2.7 kHz 3
ELECTRICAL CHARACTERISTICS TA = 25
°
C, VS = 5V, 0V; VS = 3V, 0V; VCM = VO = half supply, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VS = 5V 150 375 µV VS = 3V 200 475 µV VS = 5V, MS8 Package 150 475 µV VS = 3V, MS8 Package 200 575 µV IB Input Bias Current (Note 5) 250 1000 pA VCM = 10V (Note 6) 180 360 nA IOS Input Offset Current (Note 5) 20 100 pA Input Noise Voltage 0.1Hz to 10Hz 4 µVP-P en Input Noise Voltage Density f = 100Hz 185 nV/√Hz in Input Noise Current Density f = 100Hz 10 fA/√Hz AVOL Large-Signal Voltage Gain VS = 5V, VO = 0.25V to 4.5V, RL = 100k 100 500 V/mV VS = 3V, VO = 0.25V to 2.5V, RL = 100k 50 250 V/mV Input Voltage Range 0 36 V CMRR Common Mode Rejection Ratio VCM = 0V to 4V, VS = 5V 90 106 dB VCM = 0V to 10V, VS = 5V 74 95 dB PSRR Power Supply Rejection Ratio VS = 2.2V to 12V, VCM = VO = 0.5V 90 99 dB Minimum Operating Supply Voltage 2.1 2.2 V VOL Output Voltage Swing LOW No Load 50 100 mV ISINK = 100µA 210 410 mV VOH Output Voltage Swing HIGH No Load V+ – 0.07 V+ – 0.035 V ISOURCE = 100µA V+ – 0.32 V+ – 0.160 V ISC Short-Circuit Current (Note 5) 0.7 1.3 mA IS Supply Current per Amplifier (Note 6) 1.0 1.5 µA Reverse Supply Voltage IS = 10µA per Amplifier –18 V SR Slew Rate AV = –1, VS = ±5V 0.4 1.0 V/ms GBW Gain Bandwidth Product f = 100Hz 2.7 kHz 3
