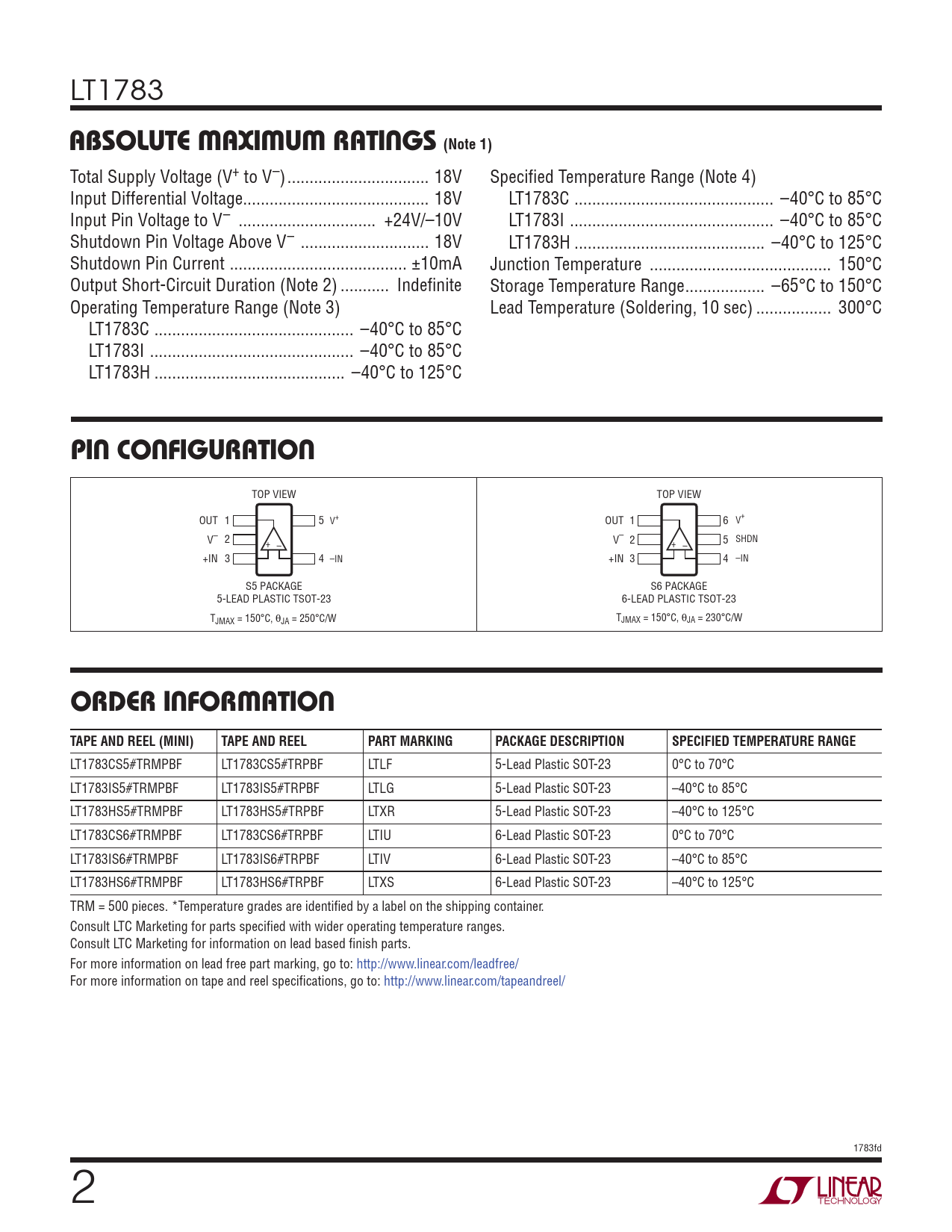

LT1783
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V+ to V–) .. 18V Specifi ed Temperature Range (Note 4) Input Differential Voltage.. 18V LT1783C ... –40°C to 85°C Input Pin Voltage to V– ... +24V/–10V LT1783I .. –40°C to 85°C Shutdown Pin Voltage Above V– ... 18V LT1783H ... –40°C to 125°C Shutdown Pin Current .. ±10mA Junction Temperature ... 150°C Output Short-Circuit Duration (Note 2) ... Indefi nite Storage Temperature Range .. –65°C to 150°C Operating Temperature Range (Note 3) Lead Temperature (Soldering, 10 sec) ... 300°C LT1783C ... –40°C to 85°C LT1783I .. –40°C to 85°C LT1783H ... –40°C to 125°C
PIN CONFIGURATION
TOP VIEW TOP VIEW OUT 1 5 V+ OUT 1 6 V+ V– 2 V– 2 5 SHDN + – + – +IN 3 4 –IN +IN 3 4 –IN S5 PACKAGE S6 PACKAGE 5-LEAD PLASTIC TSOT-23 6-LEAD PLASTIC TSOT-23 TJMAX = 150°C, θJA = 250°C/W TJMAX = 150°C, θJA = 230°C/W
ORDER INFORMATION TAPE AND REEL (MINI) TAPE AND REEL PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT1783CS5#TRMPBF LT1783CS5#TRPBF LTLF 5-Lead Plastic SOT-23 0°C to 70°C LT1783IS5#TRMPBF LT1783IS5#TRPBF LTLG 5-Lead Plastic SOT-23 –40°C to 85°C LT1783HS5#TRMPBF LT1783HS5#TRPBF LTXR 5-Lead Plastic SOT-23 –40°C to 125°C LT1783CS6#TRMPBF LT1783CS6#TRPBF LTIU 6-Lead Plastic SOT-23 0°C to 70°C LT1783IS6#TRMPBF LT1783IS6#TRPBF LTIV 6-Lead Plastic SOT-23 –40°C to 85°C LT1783HS6#TRMPBF LT1783HS6#TRPBF LTXS 6-Lead Plastic SOT-23 –40°C to 125°C TRM = 500 pieces. *Temperature grades are identifi ed by a label on the shipping container. Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. Consult LTC Marketing for information on lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 1783fd 2
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V+ to V–) .. 18V Specifi ed Temperature Range (Note 4) Input Differential Voltage.. 18V LT1783C ... –40°C to 85°C Input Pin Voltage to V– ... +24V/–10V LT1783I .. –40°C to 85°C Shutdown Pin Voltage Above V– ... 18V LT1783H ... –40°C to 125°C Shutdown Pin Current .. ±10mA Junction Temperature ... 150°C Output Short-Circuit Duration (Note 2) ... Indefi nite Storage Temperature Range .. –65°C to 150°C Operating Temperature Range (Note 3) Lead Temperature (Soldering, 10 sec) ... 300°C LT1783C ... –40°C to 85°C LT1783I .. –40°C to 85°C LT1783H ... –40°C to 125°C
PIN CONFIGURATION
TOP VIEW TOP VIEW OUT 1 5 V+ OUT 1 6 V+ V– 2 V– 2 5 SHDN + – + – +IN 3 4 –IN +IN 3 4 –IN S5 PACKAGE S6 PACKAGE 5-LEAD PLASTIC TSOT-23 6-LEAD PLASTIC TSOT-23 TJMAX = 150°C, θJA = 250°C/W TJMAX = 150°C, θJA = 230°C/W
ORDER INFORMATION TAPE AND REEL (MINI) TAPE AND REEL PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT1783CS5#TRMPBF LT1783CS5#TRPBF LTLF 5-Lead Plastic SOT-23 0°C to 70°C LT1783IS5#TRMPBF LT1783IS5#TRPBF LTLG 5-Lead Plastic SOT-23 –40°C to 85°C LT1783HS5#TRMPBF LT1783HS5#TRPBF LTXR 5-Lead Plastic SOT-23 –40°C to 125°C LT1783CS6#TRMPBF LT1783CS6#TRPBF LTIU 6-Lead Plastic SOT-23 0°C to 70°C LT1783IS6#TRMPBF LT1783IS6#TRPBF LTIV 6-Lead Plastic SOT-23 –40°C to 85°C LT1783HS6#TRMPBF LT1783HS6#TRPBF LTXS 6-Lead Plastic SOT-23 –40°C to 125°C TRM = 500 pieces. *Temperature grades are identifi ed by a label on the shipping container. Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. Consult LTC Marketing for information on lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 1783fd 2
