ELECTRICAL CHARACTERISTICS. C, VS =. 5V, VCM = VO = 0V, unless otherwise noted. SYMBOL. PARAMETER. CONDITIONS. MIN. TYP. MAX. UNITS
该数据表的模型线
文件文字版本

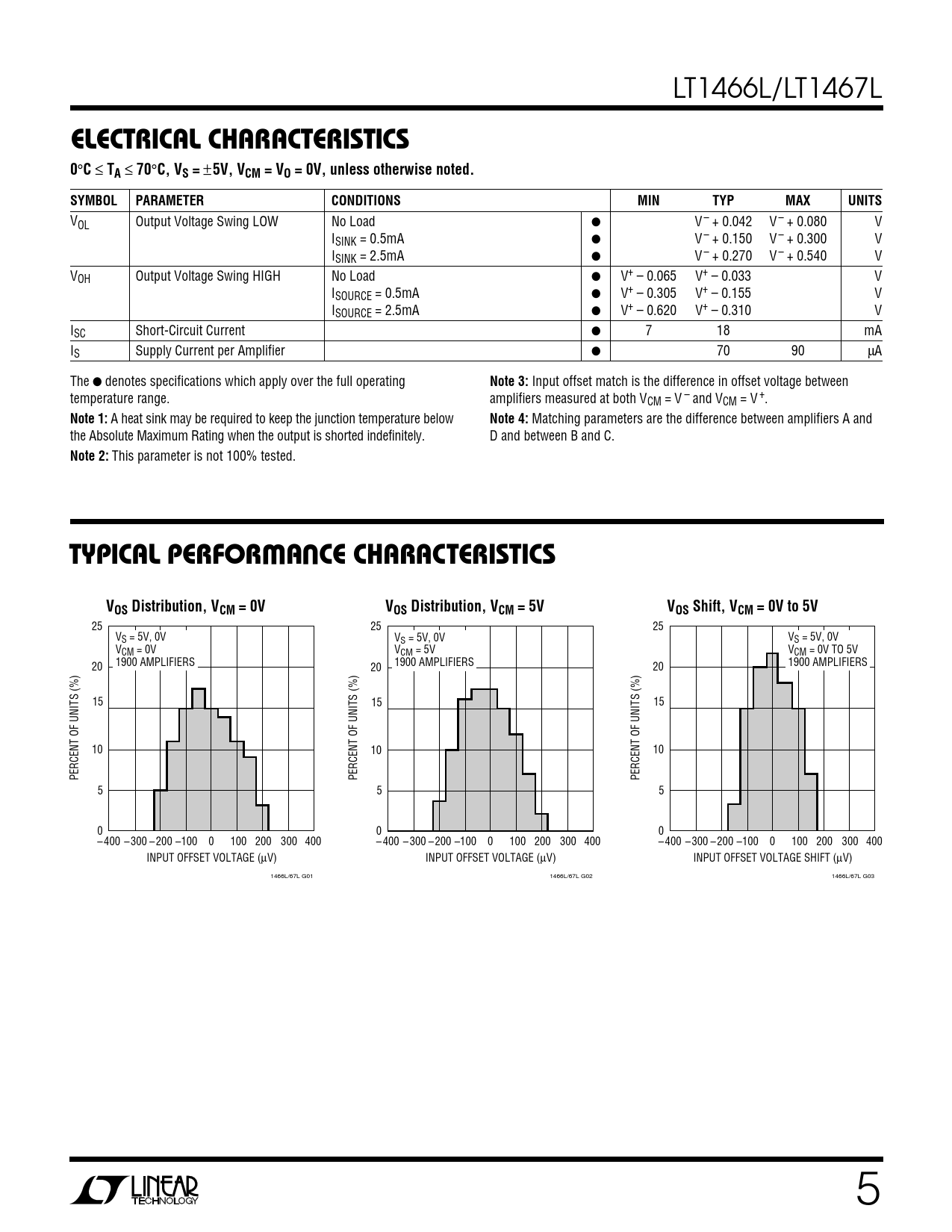

LT1466L/LT1467L
ELECTRICAL CHARACTERISTICS 0
°
C
≤
TA
≤
70
°
C, VS =
±
5V, VCM = VO = 0V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOL Output Voltage Swing LOW No Load ● V – + 0.042 V – + 0.080 V ISINK = 0.5mA ● V – + 0.150 V – + 0.300 V ISINK = 2.5mA ● V – + 0.270 V – + 0.540 V VOH Output Voltage Swing HIGH No Load ● V+ – 0.065 V+ – 0.033 V ISOURCE = 0.5mA ● V+ – 0.305 V+ – 0.155 V ISOURCE = 2.5mA ● V+ – 0.620 V+ – 0.310 V ISC Short-Circuit Current ● 7 18 mA IS Supply Current per Amplifier ● 70 90 µA The ● denotes specifications which apply over the full operating
Note 3:
Input offset match is the difference in offset voltage between temperature range. amplifiers measured at both VCM = V – and VCM = V +.
Note 1:
A heat sink may be required to keep the junction temperature below
Note 4:
Matching parameters are the difference between amplifiers A and the Absolute Maximum Rating when the output is shorted indefinitely. D and between B and C.
Note 2:
This parameter is not 100% tested.
W U TYPICAL PERFORMANCE CHARACTERISTICS VOS Distribution, VCM = 0V VOS Distribution, VCM = 5V VOS Shift, VCM = 0V to 5V
25 25 25 VS = 5V, 0V V V S = 5V, 0V S = 5V, 0V VCM = 0V V V CM = 5V CM = 0V TO 5V 20 1900 AMPLIFIERS 20 1900 AMPLIFIERS 20 1900 AMPLIFIERS 15 15 15 10 10 10 PERCENT OF UNITS (%) PERCENT OF UNITS (%) PERCENT OF UNITS (%) 5 5 5 0 0 0 – 400 – 300 – 200 –100 0 100 200 300 400 – 400 – 300 – 200 –100 0 100 200 300 400 – 400 – 300 – 200 –100 0 100 200 300 400 INPUT OFFSET VOLTAGE (µV) INPUT OFFSET VOLTAGE (µV) INPUT OFFSET VOLTAGE SHIFT (µV) 1466L/67L G01 1466L/67L G02 1466L/67L G03 5
