Datasheet LT1355, LT1356 (Analog Devices) - 4
| 制造商 | Analog Devices |
| 描述 | Dual and Quad 12MHz, 400V/µs Op Amps |
| 页数 / 页 | 16 / 4 — ELECTRICAL CHARACTERISTICS. TA = 25°C, VCM = 0V unless otherwise noted. … |
| 文件格式/大小 | PDF / 692 Kb |
| 文件语言 | 英语 |

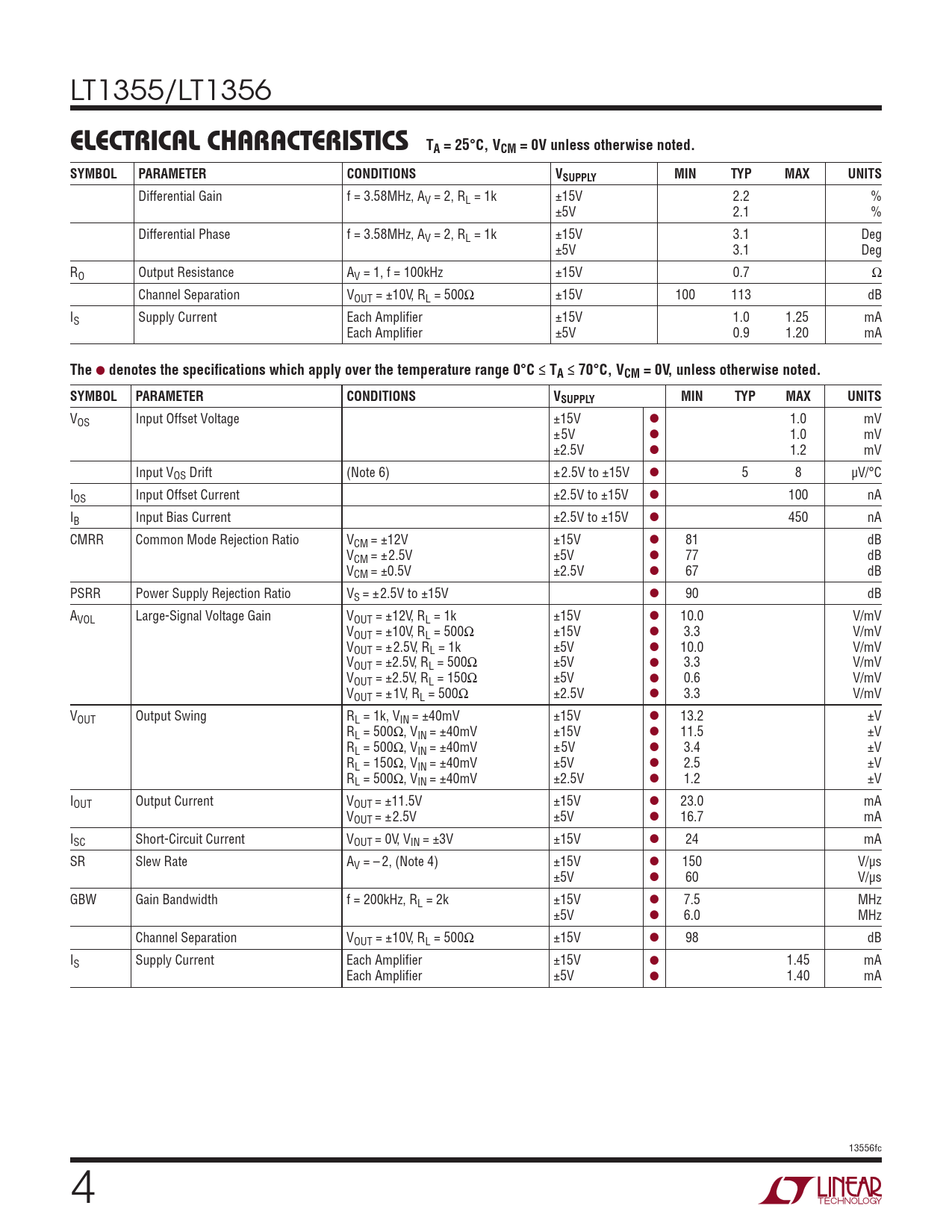

ELECTRICAL CHARACTERISTICS. TA = 25°C, VCM = 0V unless otherwise noted. SYMBOL. PARAMETER. CONDITIONS. VSUPPLY. MIN. TYP. MAX. UNITS. The
该数据表的模型线
文件文字版本
LT1355/LT1356
ELECTRICAL CHARACTERISTICS TA = 25°C, VCM = 0V unless otherwise noted. SYMBOL PARAMETER CONDITIONS VSUPPLY MIN TYP MAX UNITS
Differential Gain f = 3.58MHz, AV = 2, RL = 1k ±15V 2.2 % ±5V 2.1 % Differential Phase f = 3.58MHz, AV = 2, RL = 1k ±15V 3.1 Deg ±5V 3.1 Deg RO Output Resistance AV = 1, f = 100kHz ±15V 0.7 Ω Channel Separation VOUT = ±10V, RL = 500Ω ±15V 100 113 dB IS Supply Current Each Amplifier ±15V 1.0 1.25 mA Each Amplifier ±5V 0.9 1.20 mA
The
l
denotes the specifications which apply over the temperature range 0°C ≤ TA ≤ 70°C, VCM = 0V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS VSUPPLY MIN TYP MAX UNITS
VOS Input Offset Voltage ±15V l 1.0 mV ±5V l 1.0 mV ±2.5V l 1.2 mV Input VOS Drift (Note 6) ±2.5V to ±15V l 5 8 µV/°C IOS Input Offset Current ±2.5V to ±15V l 100 nA IB Input Bias Current ±2.5V to ±15V l 450 nA CMRR Common Mode Rejection Ratio VCM = ±12V ±15V l 81 dB VCM = ±2.5V ±5V l 77 dB VCM = ±0.5V ±2.5V l 67 dB PSRR Power Supply Rejection Ratio VS = ±2.5V to ±15V l 90 dB AVOL Large-Signal Voltage Gain VOUT = ±12V, RL = 1k ±15V l 10.0 V/mV VOUT = ±10V, RL = 500Ω ±15V l 3.3 V/mV VOUT = ±2.5V, RL = 1k ±5V l 10.0 V/mV VOUT = ±2.5V, RL = 500Ω ±5V l 3.3 V/mV VOUT = ±2.5V, RL = 150Ω ±5V l 0.6 V/mV VOUT = ±1V, RL = 500Ω ±2.5V l 3.3 V/mV VOUT Output Swing RL = 1k, VIN = ±40mV ±15V l 13.2 ±V RL = 500Ω, VIN = ±40mV ±15V l 11.5 ±V RL = 500Ω, VIN = ±40mV ±5V l 3.4 ±V RL = 150Ω, VIN = ±40mV ±5V l 2.5 ±V RL = 500Ω, VIN = ±40mV ±2.5V l 1.2 ±V IOUT Output Current VOUT = ±11.5V ±15V l 23.0 mA VOUT = ±2.5V ±5V l 16.7 mA ISC Short-Circuit Current VOUT = 0V, VIN = ±3V ±15V l 24 mA SR Slew Rate AV = – 2, (Note 4) ±15V l 150 V/µs ±5V l 60 V/µs GBW Gain Bandwidth f = 200kHz, RL = 2k ±15V l 7.5 MHz ±5V l 6.0 MHz Channel Separation VOUT = ±10V, RL = 500Ω ±15V l 98 dB IS Supply Current Each Amplifier ±15V l 1.45 mA Each Amplifier ±5V l 1.40 mA 13556fc 4 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Simplified Schematic Package Description Revision History Typical Applications Related Parts
ELECTRICAL CHARACTERISTICS TA = 25°C, VCM = 0V unless otherwise noted. SYMBOL PARAMETER CONDITIONS VSUPPLY MIN TYP MAX UNITS
Differential Gain f = 3.58MHz, AV = 2, RL = 1k ±15V 2.2 % ±5V 2.1 % Differential Phase f = 3.58MHz, AV = 2, RL = 1k ±15V 3.1 Deg ±5V 3.1 Deg RO Output Resistance AV = 1, f = 100kHz ±15V 0.7 Ω Channel Separation VOUT = ±10V, RL = 500Ω ±15V 100 113 dB IS Supply Current Each Amplifier ±15V 1.0 1.25 mA Each Amplifier ±5V 0.9 1.20 mA
The
l
denotes the specifications which apply over the temperature range 0°C ≤ TA ≤ 70°C, VCM = 0V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS VSUPPLY MIN TYP MAX UNITS
VOS Input Offset Voltage ±15V l 1.0 mV ±5V l 1.0 mV ±2.5V l 1.2 mV Input VOS Drift (Note 6) ±2.5V to ±15V l 5 8 µV/°C IOS Input Offset Current ±2.5V to ±15V l 100 nA IB Input Bias Current ±2.5V to ±15V l 450 nA CMRR Common Mode Rejection Ratio VCM = ±12V ±15V l 81 dB VCM = ±2.5V ±5V l 77 dB VCM = ±0.5V ±2.5V l 67 dB PSRR Power Supply Rejection Ratio VS = ±2.5V to ±15V l 90 dB AVOL Large-Signal Voltage Gain VOUT = ±12V, RL = 1k ±15V l 10.0 V/mV VOUT = ±10V, RL = 500Ω ±15V l 3.3 V/mV VOUT = ±2.5V, RL = 1k ±5V l 10.0 V/mV VOUT = ±2.5V, RL = 500Ω ±5V l 3.3 V/mV VOUT = ±2.5V, RL = 150Ω ±5V l 0.6 V/mV VOUT = ±1V, RL = 500Ω ±2.5V l 3.3 V/mV VOUT Output Swing RL = 1k, VIN = ±40mV ±15V l 13.2 ±V RL = 500Ω, VIN = ±40mV ±15V l 11.5 ±V RL = 500Ω, VIN = ±40mV ±5V l 3.4 ±V RL = 150Ω, VIN = ±40mV ±5V l 2.5 ±V RL = 500Ω, VIN = ±40mV ±2.5V l 1.2 ±V IOUT Output Current VOUT = ±11.5V ±15V l 23.0 mA VOUT = ±2.5V ±5V l 16.7 mA ISC Short-Circuit Current VOUT = 0V, VIN = ±3V ±15V l 24 mA SR Slew Rate AV = – 2, (Note 4) ±15V l 150 V/µs ±5V l 60 V/µs GBW Gain Bandwidth f = 200kHz, RL = 2k ±15V l 7.5 MHz ±5V l 6.0 MHz Channel Separation VOUT = ±10V, RL = 500Ω ±15V l 98 dB IS Supply Current Each Amplifier ±15V l 1.45 mA Each Amplifier ±5V l 1.40 mA 13556fc 4 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Simplified Schematic Package Description Revision History Typical Applications Related Parts
