Datasheet LT1215, LT1216 (Analog Devices)
| 制造商 | Analog Devices |
| 描述 | 23MHz, 50V/µs, Single Supply Dual and Quad Precision Op Amps |
| 页数 / 页 | 20 / 1 — FEATURES. DESCRIPTIO. APPLICATIO S. Note:. TYPICAL APPLICATIO. Single … |
| 文件格式/大小 | PDF / 347 Kb |
| 文件语言 | 英语 |
FEATURES. DESCRIPTIO. APPLICATIO S. Note:. TYPICAL APPLICATIO. Single Supply Instrumentation Amplifier. Frequency Response
该数据表的模型线
文件文字版本

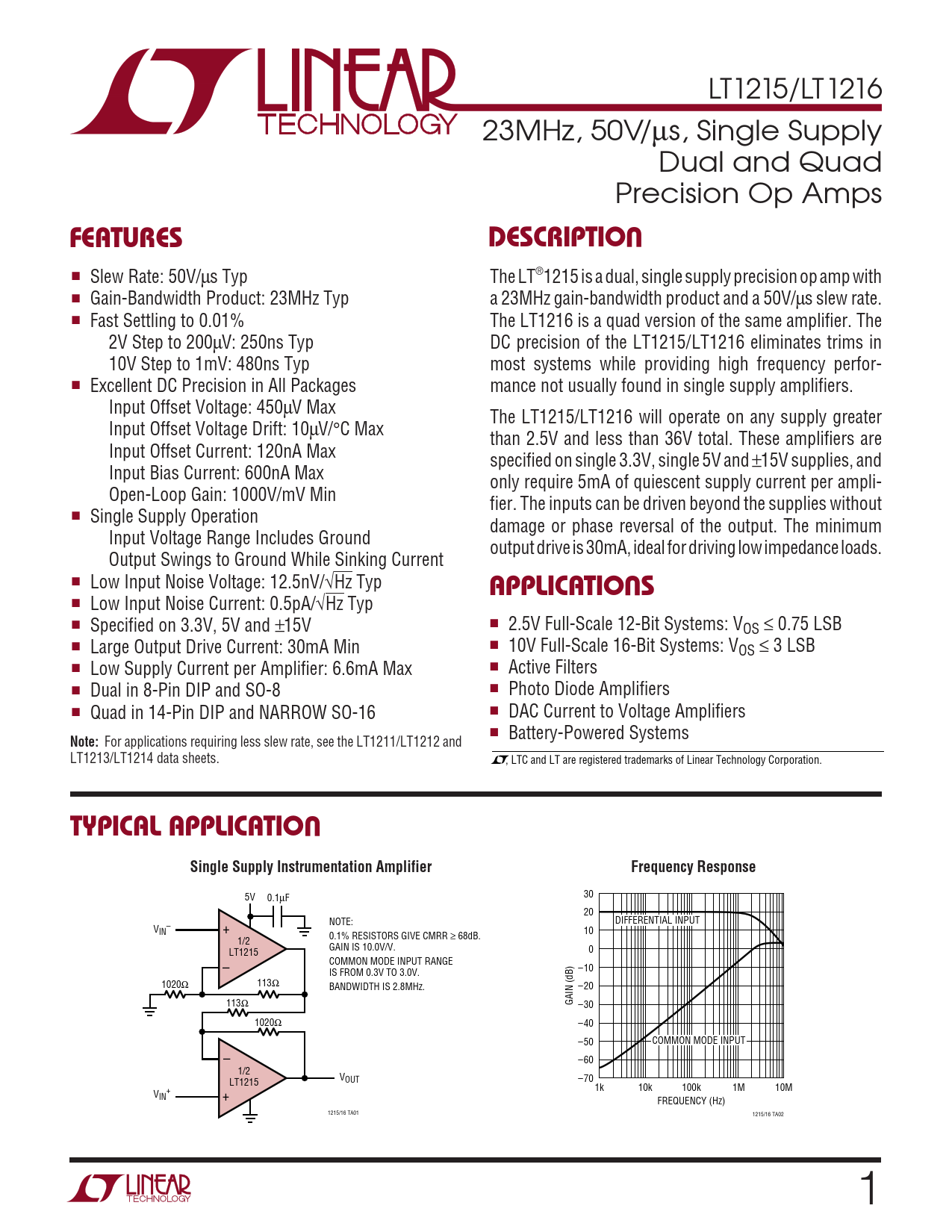

LT1215/LT1216 23MHz, 50V/µs, Single Supply Dual and Quad Precision Op Amps
U FEATURES DESCRIPTIO
■ Slew Rate: 50V/µs Typ The LT®1215 is a dual, single supply precision op amp with ■ Gain-Bandwidth Product: 23MHz Typ a 23MHz gain-bandwidth product and a 50V/µs slew rate. ■ Fast Settling to 0.01% The LT1216 is a quad version of the same amplifier. The 2V Step to 200µV: 250ns Typ DC precision of the LT1215/LT1216 eliminates trims in 10V Step to 1mV: 480ns Typ most systems while providing high frequency perfor- ■ Excellent DC Precision in All Packages mance not usually found in single supply amplifiers. Input Offset Voltage: 450µV Max The LT1215/LT1216 will operate on any supply greater Input Offset Voltage Drift: 10µV/°C Max than 2.5V and less than 36V total. These amplifiers are Input Offset Current: 120nA Max specified on single 3.3V, single 5V and ±15V supplies, and Input Bias Current: 600nA Max only require 5mA of quiescent supply current per ampli- Open-Loop Gain: 1000V/mV Min fier. The inputs can be driven beyond the supplies without ■ Single Supply Operation damage or phase reversal of the output. The minimum Input Voltage Range Includes Ground output drive is 30mA, ideal for driving low impedance loads. Output Swings to Ground While Sinking Current
U
■ Low Input Noise Voltage: 12.5nV/√Hz Typ
APPLICATIO S
■ Low Input Noise Current: 0.5pA/√Hz Typ ■ Specified on 3.3V, 5V and ±15V ■ 2.5V Full-Scale 12-Bit Systems: VOS ≤ 0.75 LSB ■ Large Output Drive Current: 30mA Min ■ 10V Full-Scale 16-Bit Systems: VOS ≤ 3 LSB ■ Low Supply Current per Amplifier: 6.6mA Max ■ Active Filters ■ Dual in 8-Pin DIP and SO-8 ■ Photo Diode Amplifiers ■ Quad in 14-Pin DIP and NARROW SO-16 ■ DAC Current to Voltage Amplifiers ■ Battery-Powered Systems
Note:
For applications requiring less slew rate, see the LT1211/LT1212 and LT1213/LT1214 data sheets. , LTC and LT are registered trademarks of Linear Technology Corporation.
U TYPICAL APPLICATIO Single Supply Instrumentation Amplifier Frequency Response
30 5V 0.1µF 20 DIFFERENTIAL INPUT NOTE: V – IN + 10 0.1% RESISTORS GIVE CMRR ≥ 68dB. 1/2 GAIN IS 10.0V/V. 0 LT1215 – COMMON MODE INPUT RANGE –10 IS FROM 0.3V TO 3.0V. 1020Ω 113Ω BANDWIDTH IS 2.8MHz. –20 113Ω GAIN (dB) –30 1020Ω –40 –50 COMMON MODE INPUT – –60 1/2 VOUT –70 LT1215 1k 10k 100k 1M 10M V + IN + FREQUENCY (Hz) 1215/16 TA01 1215/16 TA02 1
