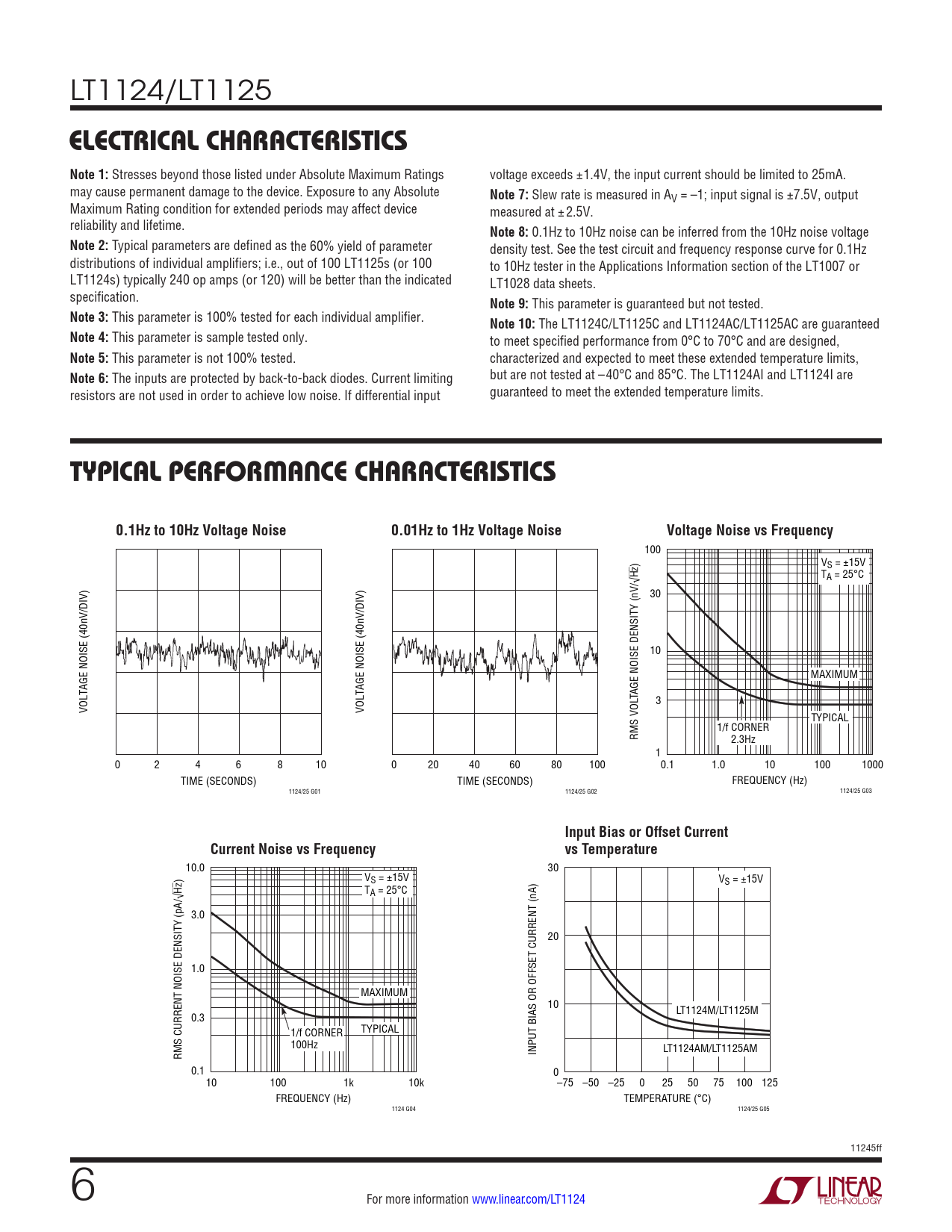

LT1124/LT1125
elecTrical characTerisTics Note 1:
Stresses beyond those listed under Absolute Maximum Ratings voltage exceeds ±1.4V, the input current should be limited to 25mA. may cause permanent damage to the device. Exposure to any Absolute
Note 7:
Slew rate is measured in AV = –1; input signal is ±7.5V, output Maximum Rating condition for extended periods may affect device measured at ±2.5V. reliability and lifetime.
Note 8:
0.1Hz to 10Hz noise can be inferred from the 10Hz noise voltage
Note 2:
Typical parameters are defined as the 60% yield of parameter density test. See the test circuit and frequency response curve for 0.1Hz distributions of individual amplifiers; i.e., out of 100 LT1125s (or 100 to 10Hz tester in the Applications Information section of the LT1007 or LT1124s) typically 240 op amps (or 120) will be better than the indicated LT1028 data sheets. specification.
Note 9:
This parameter is guaranteed but not tested.
Note 3:
This parameter is 100% tested for each individual amplifier.
Note 10:
The LT1124C/LT1125C and LT1124AC/LT1125AC are guaranteed
Note 4:
This parameter is sample tested only. to meet specified performance from 0°C to 70°C and are designed,
Note 5:
This parameter is not 100% tested. characterized and expected to meet these extended temperature limits,
Note 6:
The inputs are protected by back-to-back diodes. Current limiting but are not tested at –40°C and 85°C. The LT1124AI and LT1124I are resistors are not used in order to achieve low noise. If differential input guaranteed to meet the extended temperature limits.
Typical perForMance characTerisTics 0.1Hz to 10Hz Voltage Noise 0.01Hz to 1Hz Voltage Noise Voltage Noise vs Frequency
100 ) VS = ±15V Hz T /√ A = 25°C 30 Y (nV 10 MAXIMUM TAGE NOISE DENSIT 3 VOLTAGE NOISE (40nV/DIV) VOLTAGE NOISE (40nV/DIV) TYPICAL 1/f CORNER RMS VOL 2.3Hz 1 0 2 4 6 8 10 0 20 40 60 80 100 0.1 1.0 10 100 1000 TIME (SECONDS) TIME (SECONDS) FREQUENCY (Hz) 1124/25 G01 1124/25 G02 1124/25 G03
Input Bias or Offset Current Current Noise vs Frequency vs Temperature
10.0 30 ) VS = ±15V VS = ±15V Hz TA = 25°C 3.0 Y (pA/√ 20 1.0 MAXIMUM 10 LT1124M/LT1125M 0.3 TYPICAL 1/f CORNER 100Hz LT1124AM/LT1125AM RMS CURRENT NOISE DENSIT INPUT BIAS OR OFFSET CURRENT (nA) 0.1 0 10 100 1k 10k –75 –50 –25 0 25 50 75 100 125 FREQUENCY (Hz) TEMPERATURE (°C) 1124 G04 1124/25 G05 11245ff 6 For more information www.linear.com/LT1124 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Performance Comparison Typical Applications Schematic Diagram Package Description Revision History Typical Application Related Parts
