LT1013/LT1014

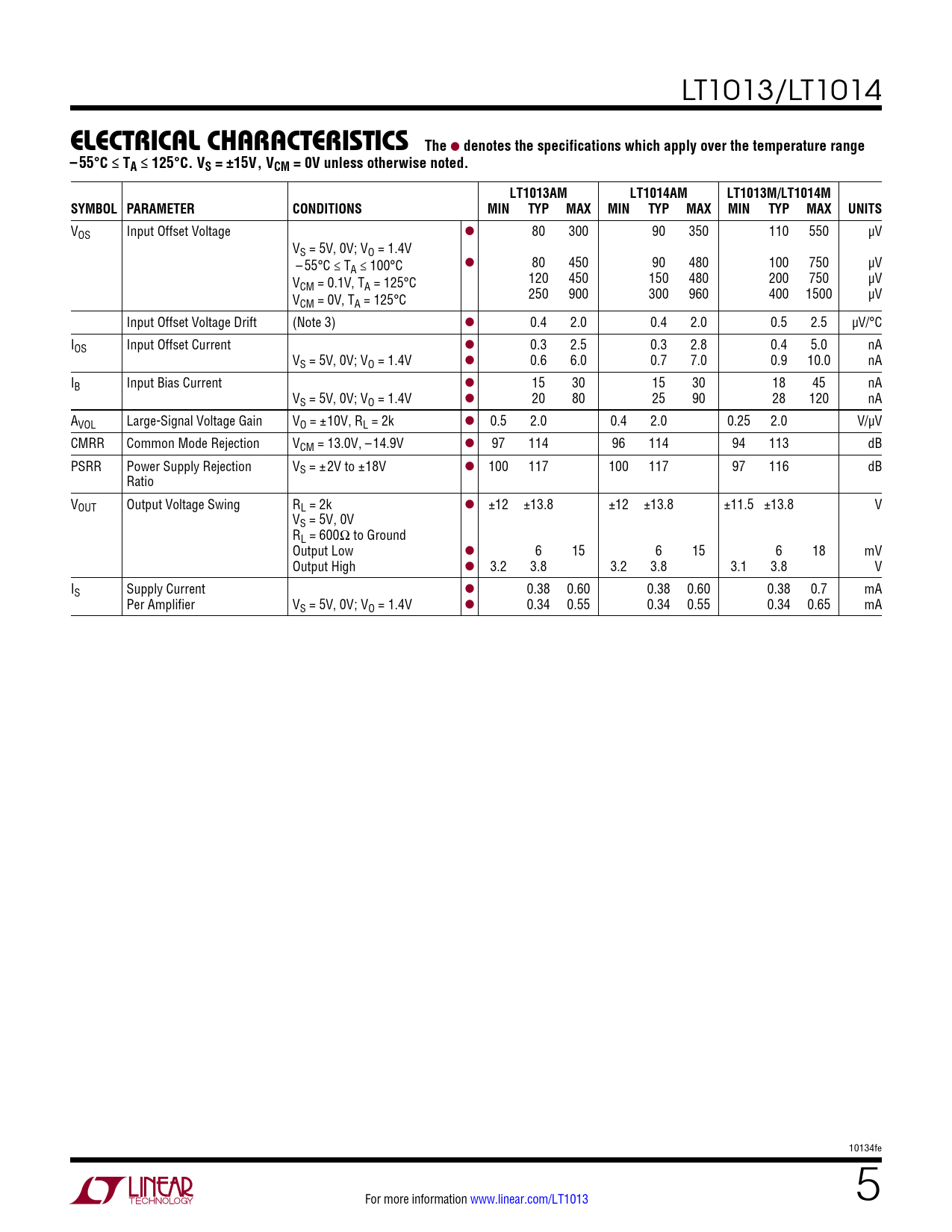

elecTrical characTerisTics The
l
denotes the specifications which apply over the temperature range –55°C ≤ TA ≤ 125°C. VS = ±15V, VCM = 0V unless otherwise noted. LT1013AM LT1014AM LT1013M/LT1014M SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage l 80 300 90 350 110 550 µV VS = 5V, 0V; VO = 1.4V – 55°C ≤ T 80 450 90 480 100 750 µV A ≤ 100°C l V 120 450 150 480 200 750 µV CM = 0.1V, TA = 125°C V 250 900 300 960 400 1500 µV CM = 0V, TA = 125°C Input Offset Voltage Drift (Note 3) l 0.4 2.0 0.4 2.0 0.5 2.5 µV/°C IOS Input Offset Current l 0.3 2.5 0.3 2.8 0.4 5.0 nA VS = 5V, 0V; VO = 1.4V l 0.6 6.0 0.7 7.0 0.9 10.0 nA IB Input Bias Current l 15 30 15 30 18 45 nA VS = 5V, 0V; VO = 1.4V l 20 80 25 90 28 120 nA AVOL Large-Signal Voltage Gain VO = ±10V, RL = 2k l 0.5 2.0 0.4 2.0 0.25 2.0 V/µV CMRR Common Mode Rejection VCM = 13.0V, –14.9V l 97 114 96 114 94 113 dB PSRR Power Supply Rejection VS = ±2V to ±18V l 100 117 100 117 97 116 dB Ratio VOUT Output Voltage Swing RL = 2k l ±12 ±13.8 ±12 ±13.8 ±11.5 ±13.8 V VS = 5V, 0V RL = 600Ω to Ground Output Low l 6 15 6 15 6 18 mV Output High l 3.2 3.8 3.2 3.8 3.1 3.8 V IS Supply Current l 0.38 0.60 0.38 0.60 0.38 0.7 mA Per Amplifier VS = 5V, 0V; VO = 1.4V l 0.34 0.55 0.34 0.55 0.34 0.65 mA 10134fe For more information www.linear.com/LT1013 5 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Typical Applications schematic diagram Package Description Revision History Typical Application Related Parts
