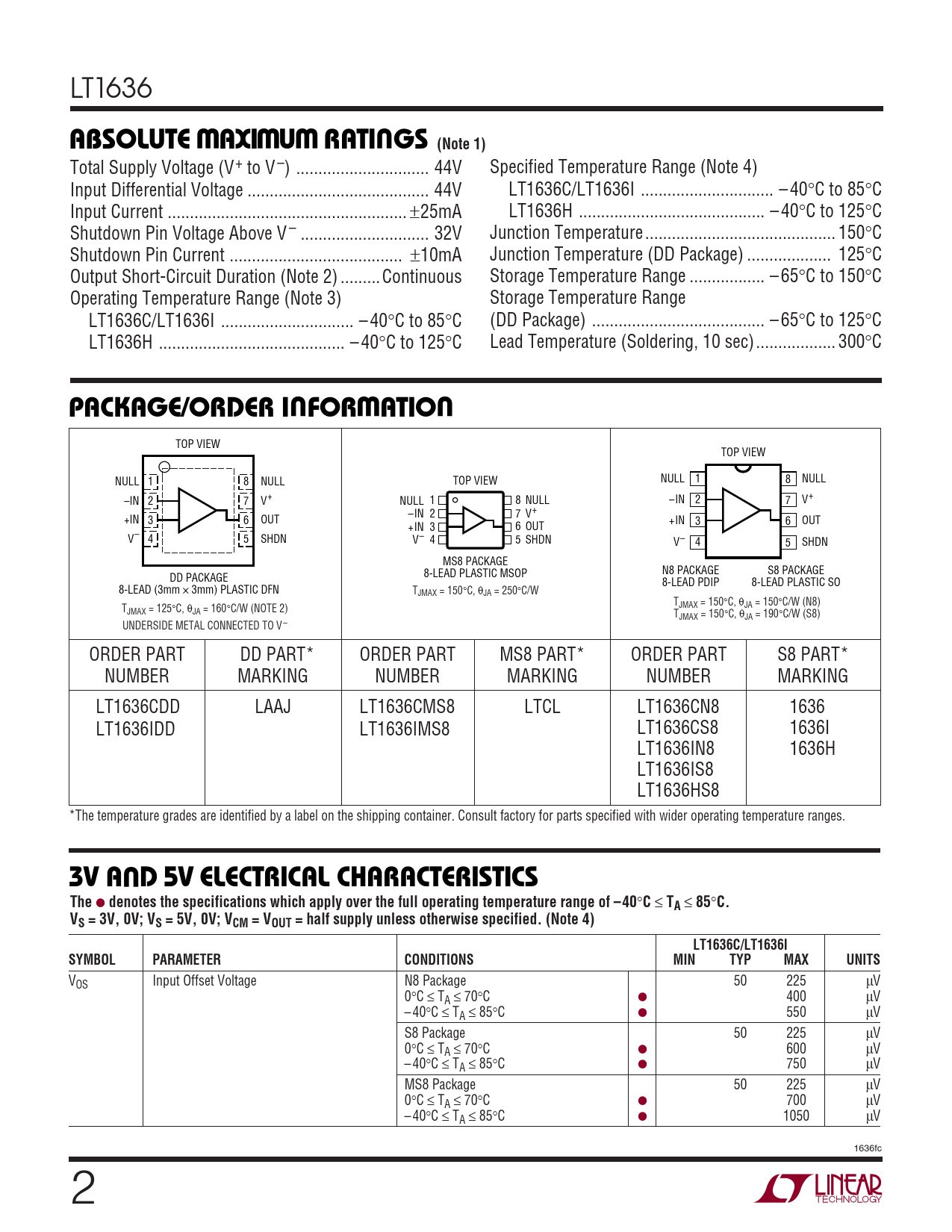

LT1636
W W W U ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V+ to V –) .. 44V Specified Temperature Range (Note 4) Input Differential Voltage ... 44V LT1636C/LT1636I .. – 40°C to 85°C Input Current .. ±25mA LT1636H .. – 40°C to 125°C Shutdown Pin Voltage Above V – ... 32V Junction Temperature ... 150°C Shutdown Pin Current ... ±10mA Junction Temperature (DD Package) ... 125°C Output Short-Circuit Duration (Note 2) ... Continuous Storage Temperature Range ... – 65°C to 150°C Operating Temperature Range (Note 3) Storage Temperature Range LT1636C/LT1636I .. – 40°C to 85°C (DD Package) ... – 65°C to 125°C LT1636H .. – 40°C to 125°C Lead Temperature (Soldering, 10 sec).. 300°C
U W U PACKAGE/ORDER I FOR ATIO
TOP VIEW TOP VIEW NULL 1 8 NULL TOP VIEW NULL 1 8 NULL –IN 2 7 V+ NULL 1 8 NULL –IN 2 7 V+ –IN 2 7 V+ +IN 3 6 OUT +IN 3 6 OUT +IN 3 6 OUT V– 4 5 SHDN V– 4 5 SHDN V– 4 5 SHDN MS8 PACKAGE N8 PACKAGE S8 PACKAGE DD PACKAGE 8-LEAD PLASTIC MSOP 8-LEAD PDIP 8-LEAD PLASTIC SO 8-LEAD (3mm × 3mm) PLASTIC DFN TJMAX = 150°C, θJA = 250°C/W TJMAX = 150°C, θJA = 150°C/W (N8) TJMAX = 125°C, θJA = 160°C/W (NOTE 2) TJMAX = 150°C, θJA = 190°C/W (S8) UNDERSIDE METAL CONNECTED TO V– ORDER PART DD PART* ORDER PART MS8 PART* ORDER PART S8 PART* NUMBER MARKING NUMBER MARKING NUMBER MARKING LT1636CDD LAAJ LT1636CMS8 LTCL LT1636CN8 1636 LT1636IDD LT1636IMS8 LT1636CS8 1636I LT1636IN8 1636H LT1636IS8 LT1636HS8 *The temperature grades are identified by a label on the shipping container. Consult factory for parts specified with wider operating temperature ranges.
U 3V A D 5V ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range of –40
°
C
≤
TA
≤
85
°
C. VS = 3V, 0V; VS = 5V, 0V; VCM = VOUT = half supply unless otherwise specified. (Note 4) LT1636C/LT1636I SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage N8 Package 50 225 µV 0°C ≤ TA ≤ 70°C ● 400 µV – 40°C ≤ TA ≤ 85°C ● 550 µV S8 Package 50 225 µV 0°C ≤ TA ≤ 70°C ● 600 µV – 40°C ≤ TA ≤ 85°C ● 750 µV MS8 Package 50 225 µV 0°C ≤ TA ≤ 70°C ● 700 µV – 40°C ≤ TA ≤ 85°C ● 1050 µV 1636fc 2
