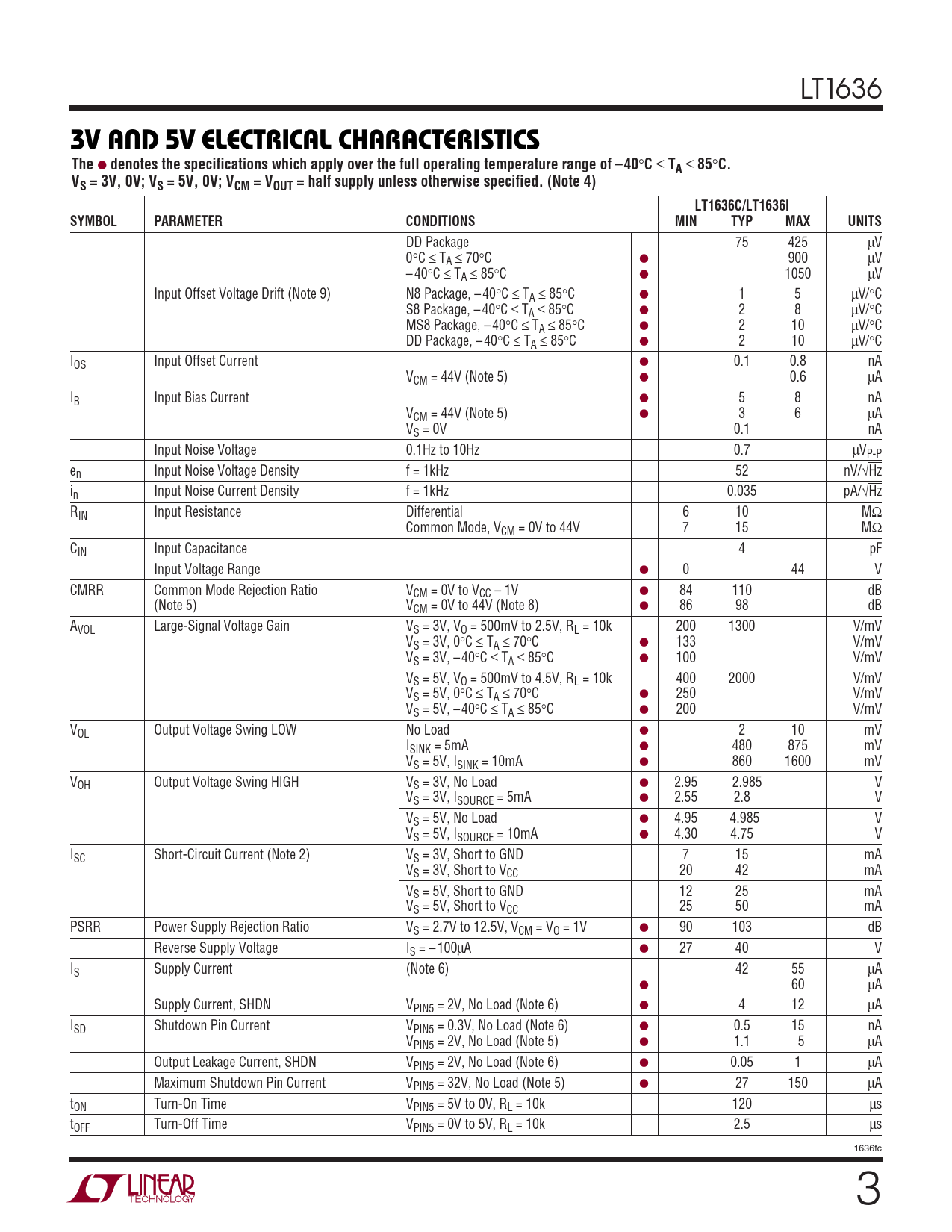

3V A D 5V ELECTRICAL CHARACTERISTICS. The
该数据表的模型线
文件文字版本
LT1636
U 3V A D 5V ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range of –40
°
C
≤
TA
≤
85
°
C. VS = 3V, 0V; VS = 5V, 0V; VCM = VOUT = half supply unless otherwise specified. (Note 4) LT1636C/LT1636I SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
DD Package 75 425 µV 0°C ≤ TA ≤ 70°C ● 900 µV – 40°C ≤ TA ≤ 85°C ● 1050 µV Input Offset Voltage Drift (Note 9) N8 Package, – 40°C ≤ TA ≤ 85°C ● 1 5 µV/°C S8 Package, – 40°C ≤ TA ≤ 85°C ● 2 8 µV/°C MS8 Package, – 40°C ≤ TA ≤ 85°C ● 2 10 µV/°C DD Package, – 40°C ≤ TA ≤ 85°C ● 2 10 µV/°C IOS Input Offset Current ● 0.1 0.8 nA VCM = 44V (Note 5) ● 0.6 µA IB Input Bias Current ● 5 8 nA VCM = 44V (Note 5) ● 3 6 µA VS = 0V 0.1 nA Input Noise Voltage 0.1Hz to 10Hz 0.7 µVP-P en Input Noise Voltage Density f = 1kHz 52 nV/√Hz in Input Noise Current Density f = 1kHz 0.035 pA/√Hz RIN Input Resistance Differential 6 10 MΩ Common Mode, VCM = 0V to 44V 7 15 MΩ CIN Input Capacitance 4 pF Input Voltage Range ● 0 44 V CMRR Common Mode Rejection Ratio VCM = 0V to VCC – 1V ● 84 110 dB (Note 5) VCM = 0V to 44V (Note 8) ● 86 98 dB AVOL Large-Signal Voltage Gain VS = 3V, VO = 500mV to 2.5V, RL = 10k 200 1300 V/mV VS = 3V, 0°C ≤ TA ≤ 70°C ● 133 V/mV VS = 3V, – 40°C ≤ TA ≤ 85°C ● 100 V/mV VS = 5V, VO = 500mV to 4.5V, RL = 10k 400 2000 V/mV VS = 5V, 0°C ≤ TA ≤ 70°C ● 250 V/mV VS = 5V, – 40°C ≤ TA ≤ 85°C ● 200 V/mV VOL Output Voltage Swing LOW No Load ● 2 10 mV ISINK = 5mA ● 480 875 mV VS = 5V, ISINK = 10mA ● 860 1600 mV VOH Output Voltage Swing HIGH VS = 3V, No Load ● 2.95 2.985 V VS = 3V, ISOURCE = 5mA ● 2.55 2.8 V VS = 5V, No Load ● 4.95 4.985 V VS = 5V, ISOURCE = 10mA ● 4.30 4.75 V ISC Short-Circuit Current (Note 2) VS = 3V, Short to GND 7 15 mA VS = 3V, Short to VCC 20 42 mA VS = 5V, Short to GND 12 25 mA VS = 5V, Short to VCC 25 50 mA PSRR Power Supply Rejection Ratio VS = 2.7V to 12.5V, VCM = VO = 1V ● 90 103 dB Reverse Supply Voltage IS = – 100µA ● 27 40 V IS Supply Current (Note 6) 42 55 µA ● 60 µA Supply Current, SHDN VPIN5 = 2V, No Load (Note 6) ● 4 12 µA ISD Shutdown Pin Current VPIN5 = 0.3V, No Load (Note 6) ● 0.5 15 nA VPIN5 = 2V, No Load (Note 5) ● 1.1 5 µA Output Leakage Current, SHDN VPIN5 = 2V, No Load (Note 6) ● 0.05 1 µA Maximum Shutdown Pin Current VPIN5 = 32V, No Load (Note 5) ● 27 150 µA tON Turn-On Time VPIN5 = 5V to 0V, RL = 10k 120 µs tOFF Turn-Off Time VPIN5 = 0V to 5V, RL = 10k 2.5 µs 1636fc 3
