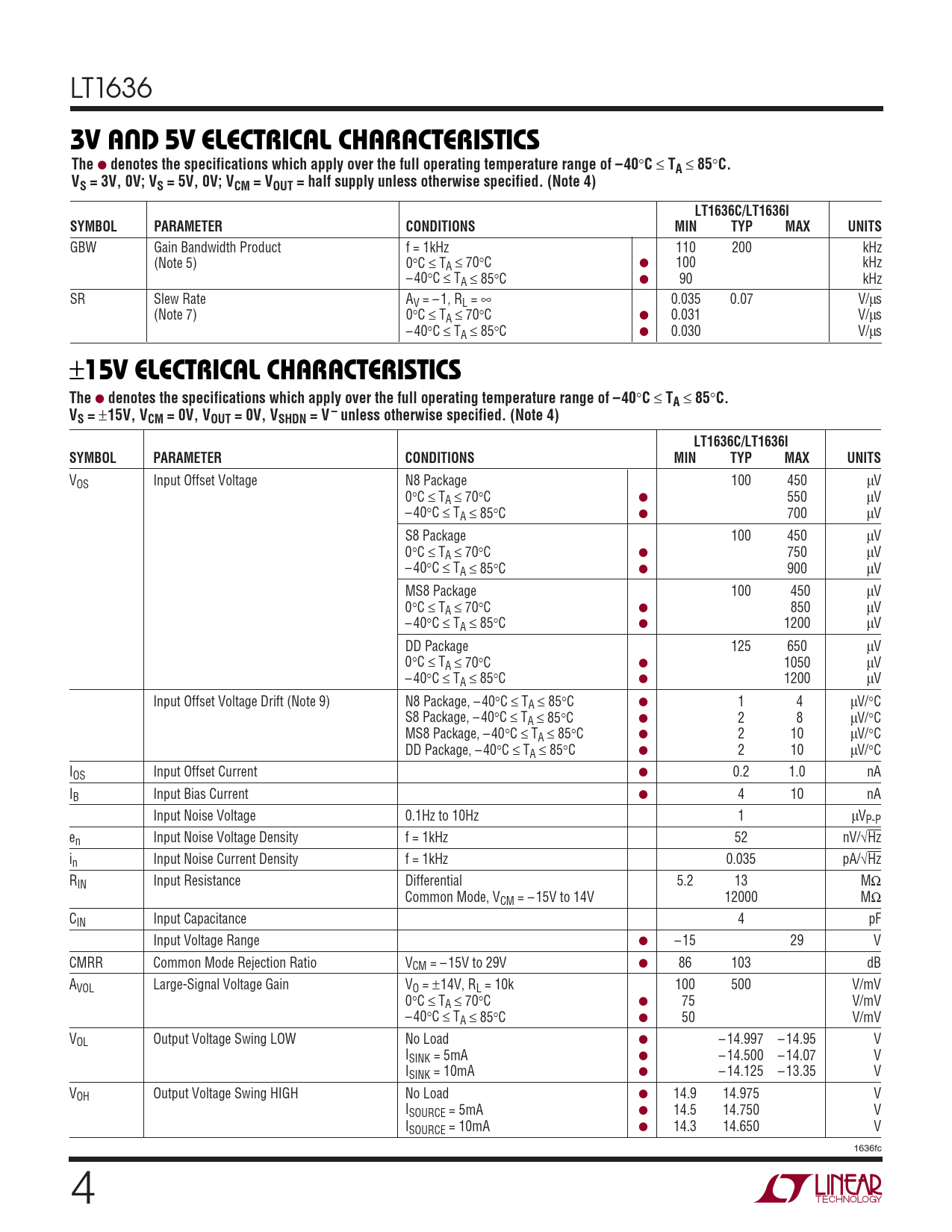

3V A D 5V ELECTRICAL CHARACTERISTICS. The
该数据表的模型线
文件文字版本
LT1636
U 3V A D 5V ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range of –40
°
C
≤
TA
≤
85
°
C. VS = 3V, 0V; VS = 5V, 0V; VCM = VOUT = half supply unless otherwise specified. (Note 4) LT1636C/LT1636I SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
GBW Gain Bandwidth Product f = 1kHz 110 200 kHz (Note 5) 0°C ≤ TA ≤ 70°C ● 100 kHz – 40°C ≤ TA ≤ 85°C ● 90 kHz SR Slew Rate AV = – 1, RL = ∞ 0.035 0.07 V/µs (Note 7) 0°C ≤ TA ≤ 70°C ● 0.031 V/µs – 40°C ≤ TA ≤ 85°C ● 0.030 V/µs ±
15V ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range of –40
°
C
≤
TA
≤
85
°
C. VS =
±
15V, VCM = 0V, VOUT = 0V, VSHDN = V – unless otherwise specified. (Note 4) LT1636C/LT1636I SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage N8 Package 100 450 µV 0°C ≤ TA ≤ 70°C ● 550 µV – 40°C ≤ TA ≤ 85°C ● 700 µV S8 Package 100 450 µV 0°C ≤ TA ≤ 70°C ● 750 µV – 40°C ≤ TA ≤ 85°C ● 900 µV MS8 Package 100 450 µV 0°C ≤ TA ≤ 70°C ● 850 µV – 40°C ≤ TA ≤ 85°C ● 1200 µV DD Package 125 650 µV 0°C ≤ TA ≤ 70°C ● 1050 µV – 40°C ≤ TA ≤ 85°C ● 1200 µV Input Offset Voltage Drift (Note 9) N8 Package, – 40°C ≤ TA ≤ 85°C ● 1 4 µV/°C S8 Package, – 40°C ≤ TA ≤ 85°C ● 2 8 µV/°C MS8 Package, – 40°C ≤ TA ≤ 85°C ● 2 10 µV/°C DD Package, – 40°C ≤ TA ≤ 85°C ● 2 10 µV/°C IOS Input Offset Current ● 0.2 1.0 nA IB Input Bias Current ● 4 10 nA Input Noise Voltage 0.1Hz to 10Hz 1 µVP-P en Input Noise Voltage Density f = 1kHz 52 nV/√Hz in Input Noise Current Density f = 1kHz 0.035 pA/√Hz RIN Input Resistance Differential 5.2 13 MΩ Common Mode, VCM = – 15V to 14V 12000 MΩ CIN Input Capacitance 4 pF Input Voltage Range ● – 15 29 V CMRR Common Mode Rejection Ratio VCM = – 15V to 29V ● 86 103 dB AVOL Large-Signal Voltage Gain VO = ±14V, RL = 10k 100 500 V/mV 0°C ≤ TA ≤ 70°C ● 75 V/mV – 40°C ≤ TA ≤ 85°C ● 50 V/mV VOL Output Voltage Swing LOW No Load ● – 14.997 – 14.95 V ISINK = 5mA ● – 14.500 – 14.07 V ISINK = 10mA ● – 14.125 – 13.35 V VOH Output Voltage Swing HIGH No Load ● 14.9 14.975 V ISOURCE = 5mA ● 14.5 14.750 V ISOURCE = 10mA ● 14.3 14.650 V 1636fc 4
U 3V A D 5V ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range of –40
°
C
≤
TA
≤
85
°
C. VS = 3V, 0V; VS = 5V, 0V; VCM = VOUT = half supply unless otherwise specified. (Note 4) LT1636C/LT1636I SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
GBW Gain Bandwidth Product f = 1kHz 110 200 kHz (Note 5) 0°C ≤ TA ≤ 70°C ● 100 kHz – 40°C ≤ TA ≤ 85°C ● 90 kHz SR Slew Rate AV = – 1, RL = ∞ 0.035 0.07 V/µs (Note 7) 0°C ≤ TA ≤ 70°C ● 0.031 V/µs – 40°C ≤ TA ≤ 85°C ● 0.030 V/µs ±
15V ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range of –40
°
C
≤
TA
≤
85
°
C. VS =
±
15V, VCM = 0V, VOUT = 0V, VSHDN = V – unless otherwise specified. (Note 4) LT1636C/LT1636I SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage N8 Package 100 450 µV 0°C ≤ TA ≤ 70°C ● 550 µV – 40°C ≤ TA ≤ 85°C ● 700 µV S8 Package 100 450 µV 0°C ≤ TA ≤ 70°C ● 750 µV – 40°C ≤ TA ≤ 85°C ● 900 µV MS8 Package 100 450 µV 0°C ≤ TA ≤ 70°C ● 850 µV – 40°C ≤ TA ≤ 85°C ● 1200 µV DD Package 125 650 µV 0°C ≤ TA ≤ 70°C ● 1050 µV – 40°C ≤ TA ≤ 85°C ● 1200 µV Input Offset Voltage Drift (Note 9) N8 Package, – 40°C ≤ TA ≤ 85°C ● 1 4 µV/°C S8 Package, – 40°C ≤ TA ≤ 85°C ● 2 8 µV/°C MS8 Package, – 40°C ≤ TA ≤ 85°C ● 2 10 µV/°C DD Package, – 40°C ≤ TA ≤ 85°C ● 2 10 µV/°C IOS Input Offset Current ● 0.2 1.0 nA IB Input Bias Current ● 4 10 nA Input Noise Voltage 0.1Hz to 10Hz 1 µVP-P en Input Noise Voltage Density f = 1kHz 52 nV/√Hz in Input Noise Current Density f = 1kHz 0.035 pA/√Hz RIN Input Resistance Differential 5.2 13 MΩ Common Mode, VCM = – 15V to 14V 12000 MΩ CIN Input Capacitance 4 pF Input Voltage Range ● – 15 29 V CMRR Common Mode Rejection Ratio VCM = – 15V to 29V ● 86 103 dB AVOL Large-Signal Voltage Gain VO = ±14V, RL = 10k 100 500 V/mV 0°C ≤ TA ≤ 70°C ● 75 V/mV – 40°C ≤ TA ≤ 85°C ● 50 V/mV VOL Output Voltage Swing LOW No Load ● – 14.997 – 14.95 V ISINK = 5mA ● – 14.500 – 14.07 V ISINK = 10mA ● – 14.125 – 13.35 V VOH Output Voltage Swing HIGH No Load ● 14.9 14.975 V ISOURCE = 5mA ● 14.5 14.750 V ISOURCE = 10mA ● 14.3 14.650 V 1636fc 4
