| 制造商 | Analog Devices |
| 描述 | 20 V, 6 A, Synchronous, Step-Down DC-to-DC Regulator |
| 页数 / 页 | 25 / 6 — ADP2387. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL … |
| 修订版 | C |
| 文件格式/大小 | PDF / 577 Kb |
| 文件语言 | 英语 |

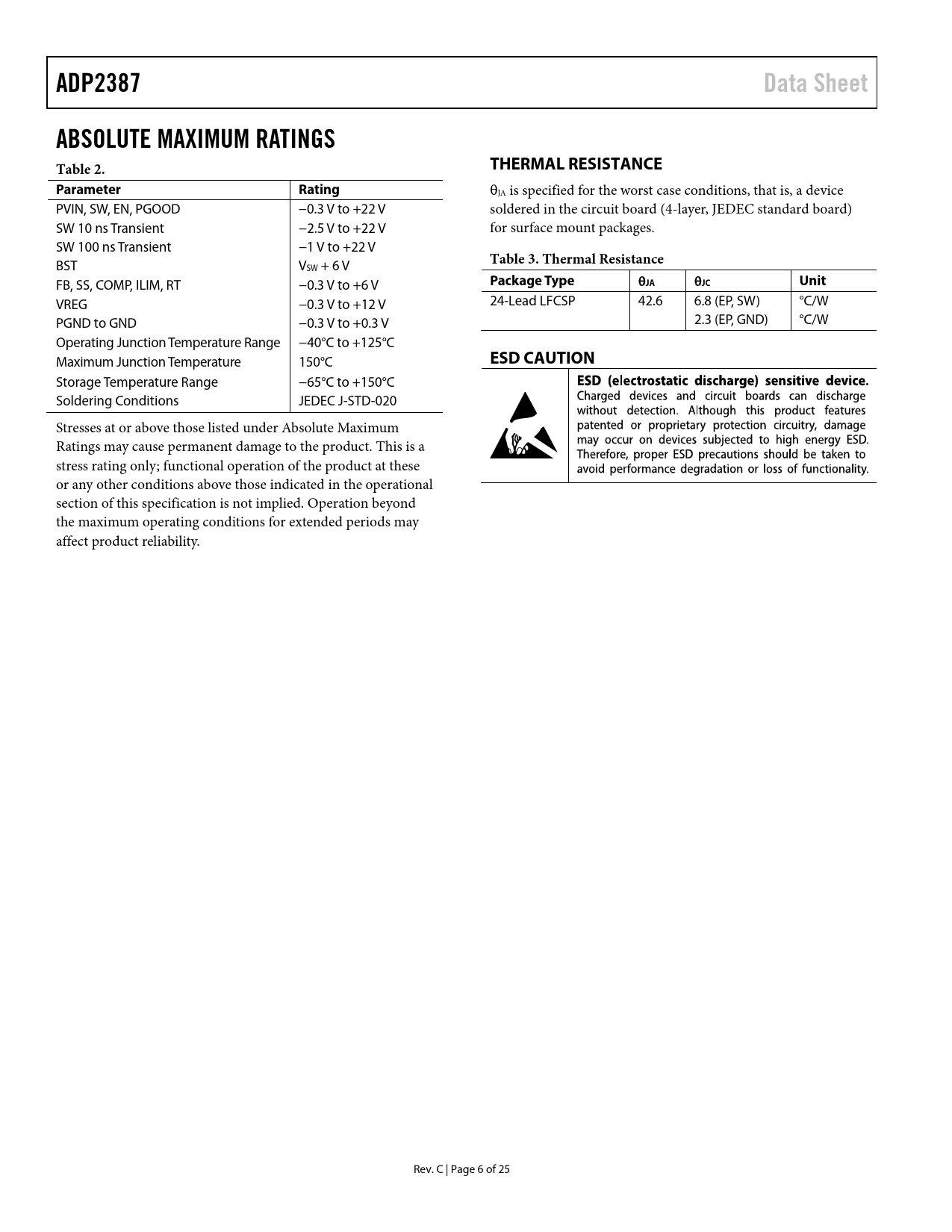

ADP2387. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE. Parameter Rating. Table 3. Thermal Resistance
该数据表的模型线
文件文字版本
ADP2387 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE Parameter Rating
JA is specified for the worst case conditions, that is, a device PVIN, SW, EN, PGOOD −0.3 V to +22 V soldered in the circuit board (4-layer, JEDEC standard board) SW 10 ns Transient −2.5 V to +22 V for surface mount packages. SW 100 ns Transient −1 V to +22 V
Table 3. Thermal Resistance
BST VSW + 6 V FB, SS, COMP, ILIM, RT −0.3 V to +6 V
Package Type
JA
JC Unit
VREG −0.3 V to +12 V 24-Lead LFCSP 42.6 6.8 (EP, SW) °C/W PGND to GND −0.3 V to +0.3 V 2.3 (EP, GND) °C/W Operating Junction Temperature Range −40°C to +125°C Maximum Junction Temperature 150°C
