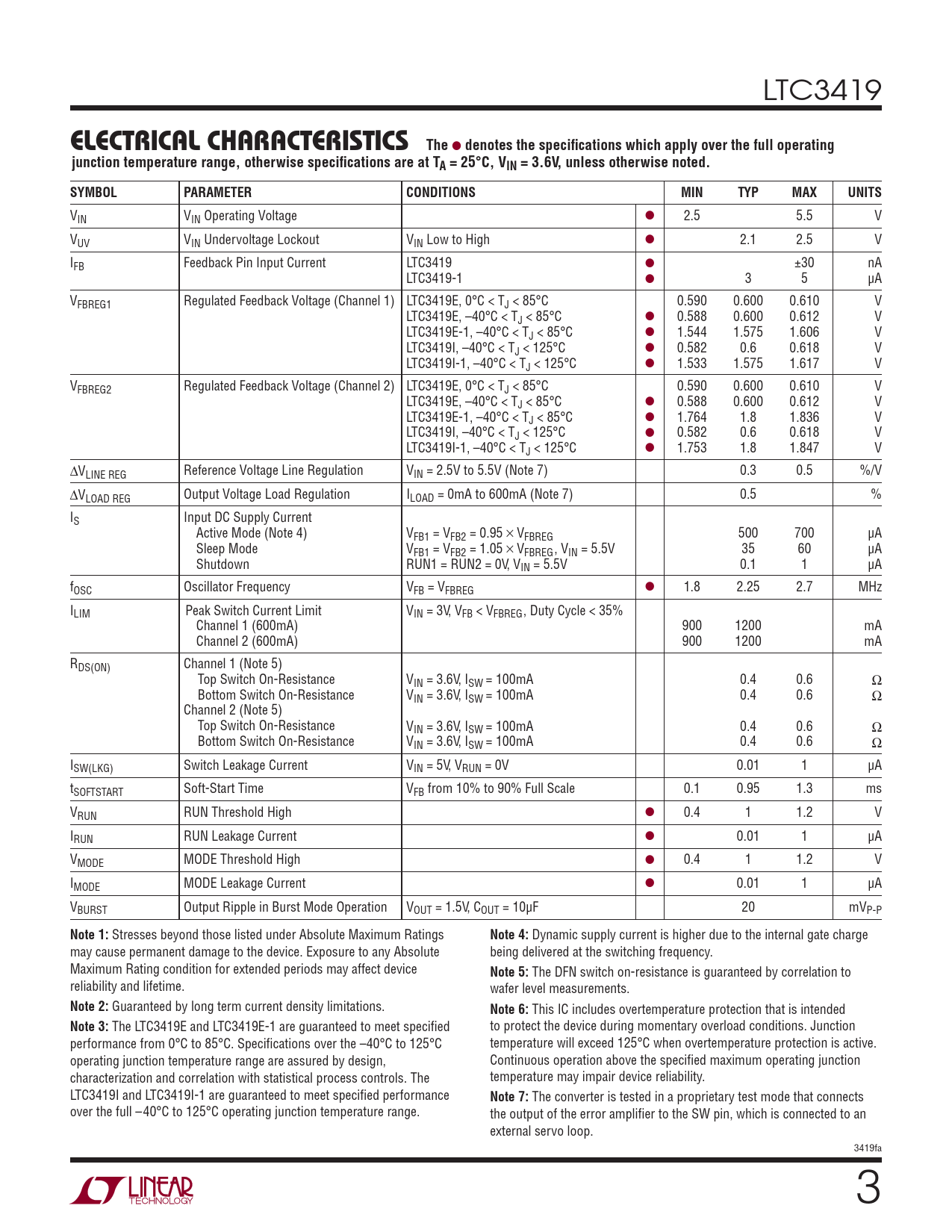

ELECTRICAL CHARACTERISTICS. The. denotes the specifi cations which apply over the full operating
该数据表的模型线
文件文字版本
LTC3419
ELECTRICAL CHARACTERISTICS The
●
denotes the specifi cations which apply over the full operating junction temperature range, otherwise specifi cations are at TA = 25°C, VIN = 3.6V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIN VIN Operating Voltage ● 2.5 5.5 V VUV VIN Undervoltage Lockout VIN Low to High ● 2.1 2.5 V IFB Feedback Pin Input Current LTC3419 ● ±30 nA LTC3419-1 ● 3 5 μA VFBREG1 Regulated Feedback Voltage (Channel 1) LTC3419E, 0°C < TJ < 85°C 0.590 0.600 0.610 V LTC3419E, –40°C < TJ < 85°C ● 0.588 0.600 0.612 V LTC3419E-1, –40°C < TJ < 85°C ● 1.544 1.575 1.606 V LTC3419I, –40°C < TJ < 125°C ● 0.582 0.6 0.618 V LTC3419I-1, –40°C < TJ < 125°C ● 1.533 1.575 1.617 V VFBREG2 Regulated Feedback Voltage (Channel 2) LTC3419E, 0°C < TJ < 85°C 0.590 0.600 0.610 V LTC3419E, –40°C < TJ < 85°C ● 0.588 0.600 0.612 V LTC3419E-1, –40°C < TJ < 85°C ● 1.764 1.8 1.836 V LTC3419I, –40°C < TJ < 125°C ● 0.582 0.6 0.618 V LTC3419I-1, –40°C < TJ < 125°C ● 1.753 1.8 1.847 V ΔVLINE REG Reference Voltage Line Regulation VIN = 2.5V to 5.5V (Note 7) 0.3 0.5 %/V ΔVLOAD REG Output Voltage Load Regulation ILOAD = 0mA to 600mA (Note 7) 0.5 % IS Input DC Supply Current Active Mode (Note 4) VFB1 = VFB2 = 0.95 × VFBREG 500 700 μA Sleep Mode VFB1 = VFB2 = 1.05 × VFBREG, VIN = 5.5V 35 60 μA Shutdown RUN1 = RUN2 = 0V, VIN = 5.5V 0.1 1 μA fOSC Oscillator Frequency VFB = VFBREG ● 1.8 2.25 2.7 MHz ILIM Peak Switch Current Limit VIN = 3V, VFB < VFBREG, Duty Cycle < 35% Channel 1 (600mA) 900 1200 mA Channel 2 (600mA) 900 1200 mA RDS(ON) Channel 1 (Note 5) Top Switch On-Resistance VIN = 3.6V, ISW = 100mA 0.4 0.6 Ω Bottom Switch On-Resistance VIN = 3.6V, ISW = 100mA 0.4 0.6 Ω Channel 2 (Note 5) Top Switch On-Resistance VIN = 3.6V, ISW = 100mA 0.4 0.6 Ω Bottom Switch On-Resistance VIN = 3.6V, ISW = 100mA 0.4 0.6 Ω ISW(LKG) Switch Leakage Current VIN = 5V, VRUN = 0V 0.01 1 μA tSOFTSTART Soft-Start Time VFB from 10% to 90% Full Scale 0.1 0.95 1.3 ms VRUN RUN Threshold High ● 0.4 1 1.2 V IRUN RUN Leakage Current ● 0.01 1 μA VMODE MODE Threshold High ● 0.4 1 1.2 V IMODE MODE Leakage Current ● 0.01 1 μA VBURST Output Ripple in Burst Mode Operation VOUT = 1.5V, COUT = 10μF 20 mVP-P
