LTC3707
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)

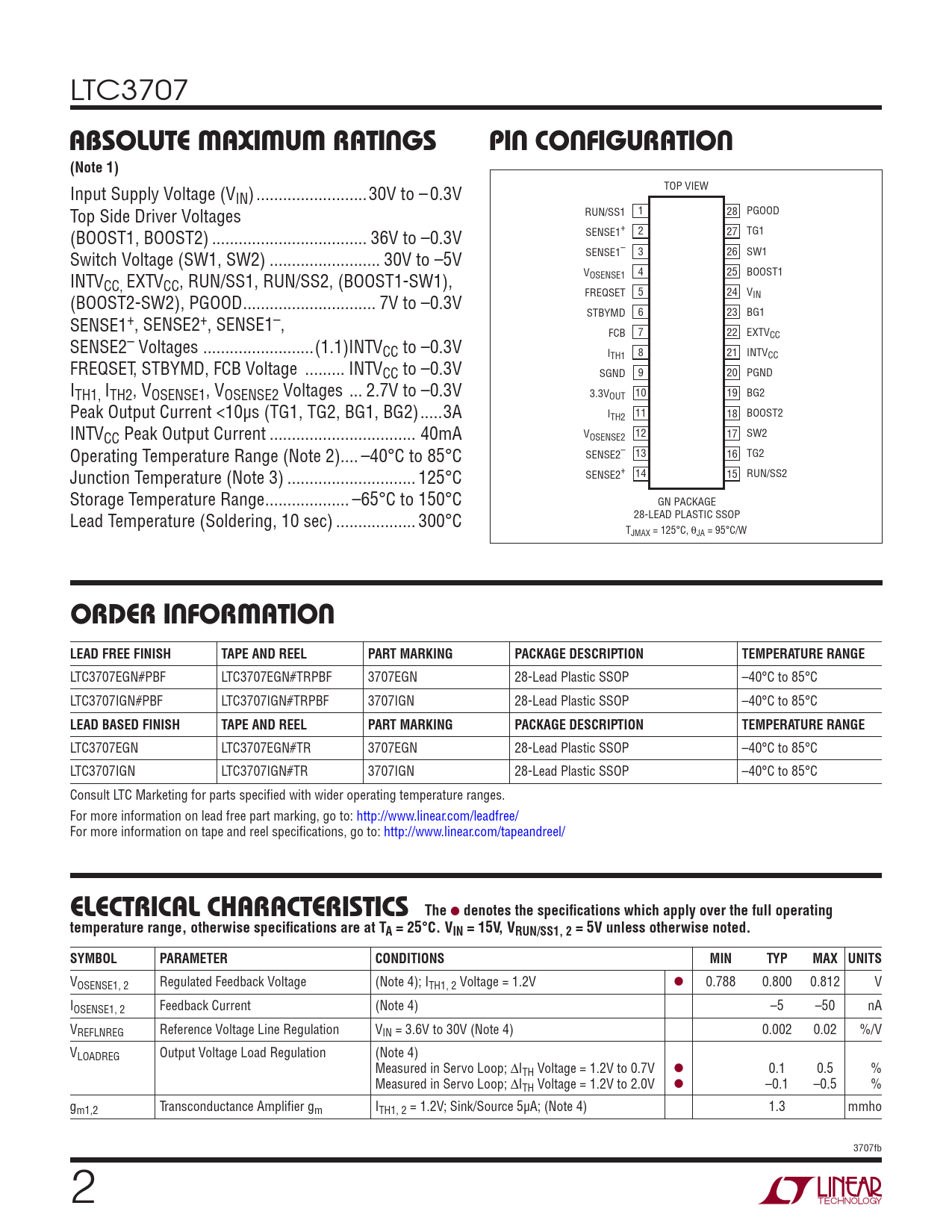

Input Supply Voltage (V TOP VIEW IN) ... 30V to – 0.3V Top Side Driver Voltages RUN/SS1 1 28 PGOOD (BOOST1, BOOST2) ... 36V to –0.3V SENSE1+ 2 27 TG1 SENSE1– 3 SW1 Switch Voltage (SW1, SW2) ... 30V to –5V 26 V 4 25 BOOST1 INTV OSENSE1 CC, EXTVCC, RUN/SS1, RUN/SS2, (BOOST1-SW1), FREQSET 5 24 VIN (BOOST2-SW2), PGOOD .. 7V to –0.3V STBYMD 6 23 BG1 SENSE1+, SENSE2+, SENSE1–, FCB 7 22 EXTVCC SENSE2– Voltages ...(1.1)INTVCC to –0.3V I 8 21 TH1 INTVCC FREQSET, STBYMD, FCB Voltage ... INTVCC to –0.3V SGND 9 20 PGND ITH1, ITH2, VOSENSE1, VOSENSE2 Voltages ... 2.7V to –0.3V 3.3V 10 19 OUT BG2 Peak Output Current <10μs (TG1, TG2, BG1, BG2) ...3A I 11 18 TH2 BOOST2 INTVCC Peak Output Current ... 40mA V 12 17 OSENSE2 SW2 Operating Temperature Range (Note 2).. –40°C to 85°C SENSE2– 13 16 TG2 Junction Temperature (Note 3) ... 125°C SENSE2+ 14 15 RUN/SS2 Storage Temperature Range ... –65°C to 150°C GN PACKAGE Lead Temperature (Soldering, 10 sec) .. 300°C 28-LEAD PLASTIC SSOP TJMAX = 125°C, θJA = 95°C/W
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3707EGN#PBF LTC3707EGN#TRPBF 3707EGN 28-Lead Plastic SSOP –40°C to 85°C LTC3707IGN#PBF LTC3707IGN#TRPBF 3707IGN 28-Lead Plastic SSOP –40°C to 85°C
LEAD BASED FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3707EGN LTC3707EGN#TR 3707EGN 28-Lead Plastic SSOP –40°C to 85°C LTC3707IGN LTC3707IGN#TR 3707IGN 28-Lead Plastic SSOP –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VIN = 15V, VRUN/SS1, 2 = 5V unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOSENSE1, 2 Regulated Feedback Voltage (Note 4); ITH1, 2 Voltage = 1.2V l 0.788 0.800 0.812 V IOSENSE1, 2 Feedback Current (Note 4) –5 –50 nA VREFLNREG Reference Voltage Line Regulation VIN = 3.6V to 30V (Note 4) 0.002 0.02 %/V VLOADREG Output Voltage Load Regulation (Note 4) Measured in Servo Loop; ΔITH Voltage = 1.2V to 0.7V l 0.1 0.5 % Measured in Servo Loop; ΔITH Voltage = 1.2V to 2.0V l –0.1 –0.5 % gm1,2 Transconductance Amplifi er gm ITH1, 2 = 1.2V; Sink/Source 5μA; (Note 4) 1.3 mmho 3707fb 2
