页数 / 页52 / 9 — ADAU1401A. tTS. OUTPUT_BCLK. tLOS. OUTPUT_LRCLK. tSODS. SDATA_OUTx. SODM. …
修订版A
文件格式/大小PDF / 930 Kb
文件语言英语

ADAU1401A. tTS. OUTPUT_BCLK. tLOS. OUTPUT_LRCLK. tSODS. SDATA_OUTx. SODM. LEFT-JUSTIFIED. MSB. MSB – 1. MODE. tSODM. I2S MODE. RIGHT-JUSTIFIED. LSB

ADAU1401A tTS OUTPUT_BCLK tLOS OUTPUT_LRCLK tSODS SDATA_OUTx SODM LEFT-JUSTIFIED MSB MSB – 1 MODE tSODM I2S MODE RIGHT-JUSTIFIED LSB

该数据表的模型线

文件文字版本

ADAU1401A tTS OUTPUT_BCLK tLOS OUTPUT_LRCLK tSODS t SDATA_OUTx SODM LEFT-JUSTIFIED MSB MSB – 1 MODE tSODS tSODM SDATA_OUTx I2S MODE MSB tSODS t SDATA_OUTx SODM RIGHT-JUSTIFIED MSB LSB MODE 8-BIT CLOCKS (24-BIT DATA) 12-BIT CLOCKS (20-BIT DATA) 14-BIT CLOCKS (18-BIT DATA)
03
16-BIT CLOCKS
0 6-
(16-BIT DATA)

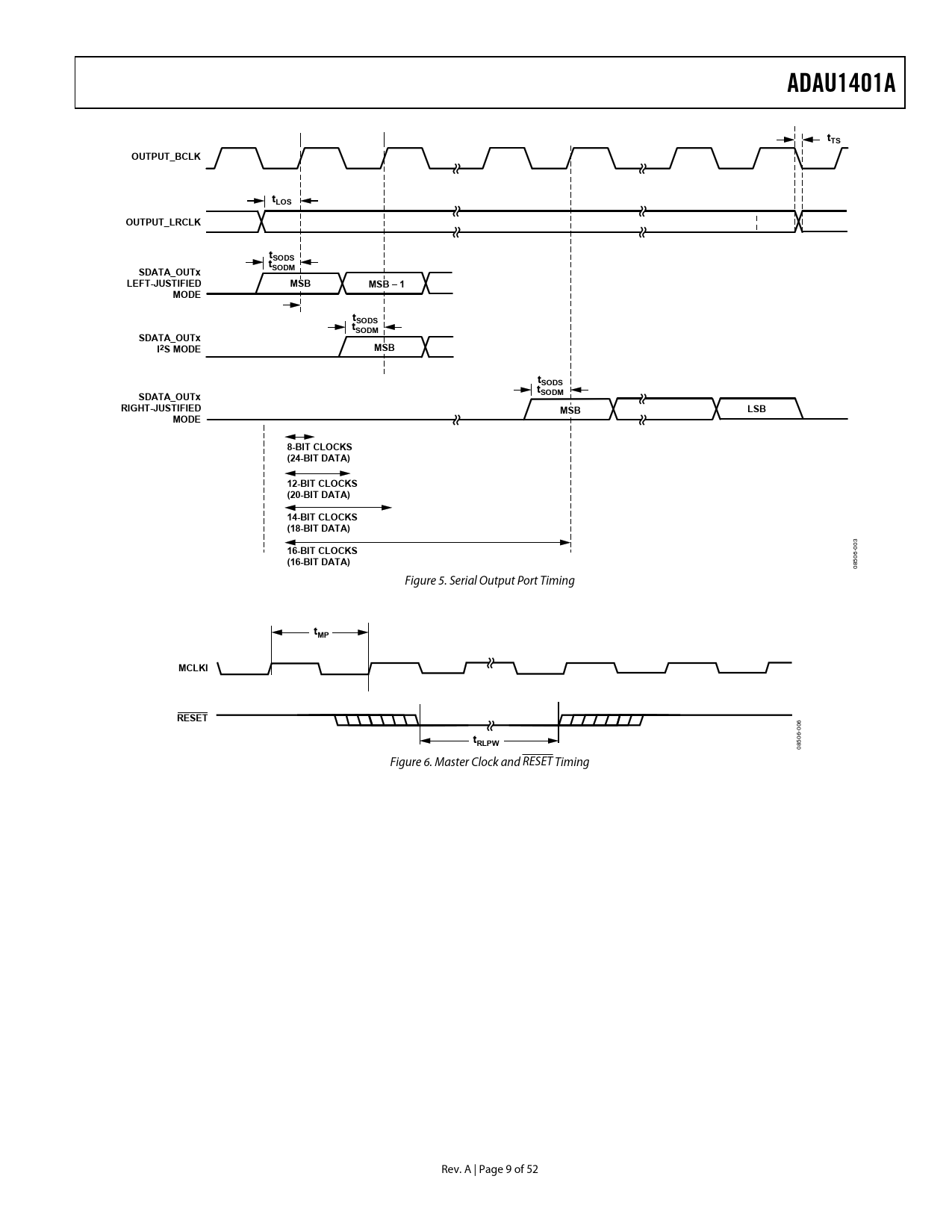

50 08 Figure 5. Serial Output Port Timing
tMP MCLKI RESET
06 0
t
6-
RLPW
850 0 Figure 6. Master Clock and RESET Timing Rev. A | Page 9 of 52 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ANALOG PERFORMANCE DIGITAL INPUT/OUTPUT POWER TEMPERATURE RANGE PLL AND OSCILLATOR REGULATOR DIGITAL TIMING SPECIFICATIONS Digital Timing Diagrams ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS SYSTEM BLOCK DIAGRAM THEORY OF OPERATION INITIALIZATION POWER-UP SEQUENCE CONTROL REGISTERS SETUP DSP Core Control Register (Address 2076) DAC Setup Register (Address 2087) RECOMMENDED PROGRAM/PARAMETER LOADING PROCEDURE POWER REDUCTION MODES USING THE OSCILLATOR SETTING MASTER CLOCK/PLL MODE VOLTAGE REGULATOR AUDIO ADCs AUDIO DACs CONTROL PORTS I2C PORT Addressing I2C Read and Write Operations SPI PORT Chip Address, R/ Subaddress Data Bytes SELF-BOOT EEPROM Format Writeback SIGNAL PROCESSING NUMERIC FORMATS Numerical Format: 5.23 PROGRAMMING RAMS AND REGISTERS ADDRESS MAPS PARAMETER RAM Direct Read/Write Safeload Write DATA RAM READ/WRITE DATA FORMATS CONTROL REGISTER MAP CONTROL REGISTER DETAILS ADDRESS 2048 TO ADDRESS 2055 (0x0800 TO 0x0807)—INTERFACE REGISTERS ADDRESS 2056 (0x0808)—GPIO PIN SETTING REGISTER ADDRESS 2057 TO ADDRESS 2060 (0x0809 TO 0x080C)—AUXILIARY ADC DATA REGISTERS ADDRESS 2064 TO ADDRESS 2068 (0x0810 TO 0x0814)—SAFELOAD DATA REGISTERS ADDRESS 2069 TO ADDRESS 2073 (0x0815 TO 0x0819)—SAFELOAD ADDRESS REGISTERS ADDRESS 2074 AND ADDRESS 2075 (0x081A AND 0x081B)—DATA CAPTURE REGISTERS ADDRESS 2076 (0x081C)—DSP CORE CONTROL REGISTER ADDRESS 2078 (0x081E)—SERIAL OUTPUT CONTROL REGISTER ADDRESS 2079 (0x081F)—SERIAL INPUT CONTROL REGISTER ADDRESS 2080 AND ADDRESS 2081 (0x0820 AND 0x0821)—MULTIPURPOSE PIN CONFIGURATION REGISTERS ADDRESS 2082 (0x0822)—AUXILIARY ADC AND POWER CONTROL REGISTER ADDRESS 2084 (0x0824)—AUXILIARY ADC ENABLE REGISTER ADDRESS 2086 (0x0826)—OSCILLATOR POWER-DOWN REGISTER ADDRESS 2087 (0x0827)—DAC SETUP REGISTER MULTIPURPOSE PINS AUXILIARY ADC GENERAL-PURPOSE INPUT/OUTPUT PINS SERIAL DATA INPUT/OUTPUT PORTS LAYOUT RECOMMENDATIONS PARTS PLACEMENT GROUNDING TYPICAL APPLICATION SCHEMATICS SELF-BOOT MODE I2C CONTROL SPI CONTROL OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
