TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. Efficiency, VOUT = 0.97V,. Efficiency, VOUT = 1.2V,
该数据表的模型线
文件文字版本
LTM8065

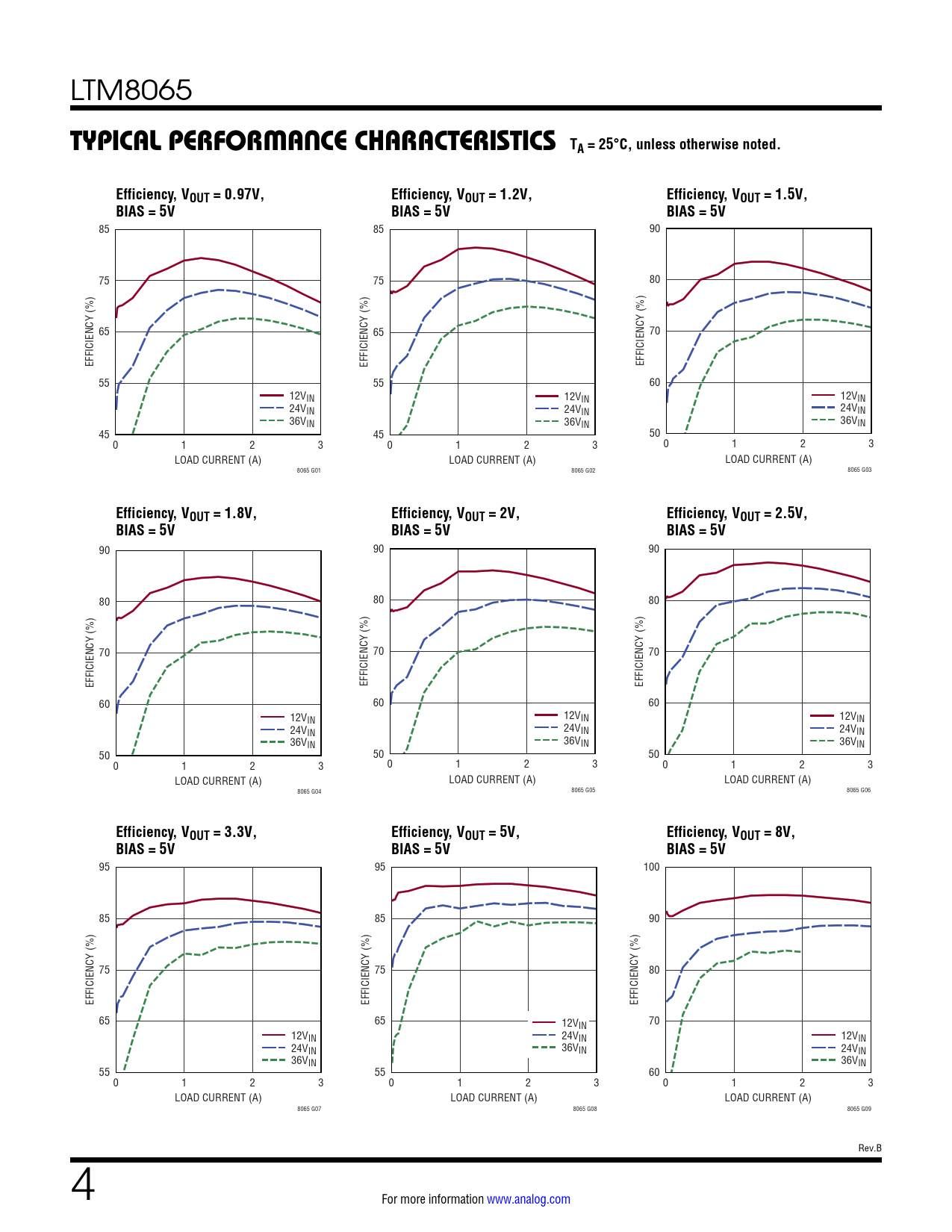

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. Efficiency, VOUT = 0.97V, Efficiency, VOUT = 1.2V, Efficiency, VOUT = 1.5V, BIAS = 5V BIAS = 5V BIAS = 5V
85 85 90 75 75 80 65 65 70 EFFICIENCY (%) EFFICIENCY (%) EFFICIENCY (%) 55 55 60 12VIN 12VIN 12VIN 24VIN 24VIN 24VIN 36VIN 36VIN 36VIN 45 45 50 0 1 2 3 0 1 2 3 0 1 2 3 LOAD CURRENT (A) LOAD CURRENT (A) LOAD CURRENT (A) 8065 G01 8065 G02 8065 G03
Efficiency, VOUT = 1.8V, Efficiency, VOUT = 2V, Efficiency, VOUT = 2.5V, BIAS = 5V BIAS = 5V BIAS = 5V
90 90 90 80 80 80 70 70 70 EFFICIENCY (%) EFFICIENCY (%) EFFICIENCY (%) 60 60 60 12VIN 12VIN 12VIN 24VIN 24VIN 24VIN 36VIN 36VIN 36VIN 50 50 50 0 1 2 3 0 1 2 3 0 1 2 3 LOAD CURRENT (A) LOAD CURRENT (A) LOAD CURRENT (A) 8065 G04 8065 G05 8065 G06
Efficiency, VOUT = 3.3V, Efficiency, VOUT = 5V, Efficiency, VOUT = 8V, BIAS = 5V BIAS = 5V BIAS = 5V
95 95 100 85 85 90 75 75 80 EFFICIENCY (%) EFFICIENCY (%) EFFICIENCY (%) 65 65 12VIN 70 12VIN 24VIN 12VIN 24VIN 36VIN 24VIN 36VIN 36VIN 55 55 60 0 1 2 3 0 1 2 3 0 1 2 3 LOAD CURRENT (A) LOAD CURRENT (A) LOAD CURRENT (A) 8065 G07 8065 G08 8065 G09 Rev.B 4 For more information www.analog.com
TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. Efficiency, VOUT = 0.97V, Efficiency, VOUT = 1.2V, Efficiency, VOUT = 1.5V, BIAS = 5V BIAS = 5V BIAS = 5V
85 85 90 75 75 80 65 65 70 EFFICIENCY (%) EFFICIENCY (%) EFFICIENCY (%) 55 55 60 12VIN 12VIN 12VIN 24VIN 24VIN 24VIN 36VIN 36VIN 36VIN 45 45 50 0 1 2 3 0 1 2 3 0 1 2 3 LOAD CURRENT (A) LOAD CURRENT (A) LOAD CURRENT (A) 8065 G01 8065 G02 8065 G03
Efficiency, VOUT = 1.8V, Efficiency, VOUT = 2V, Efficiency, VOUT = 2.5V, BIAS = 5V BIAS = 5V BIAS = 5V
90 90 90 80 80 80 70 70 70 EFFICIENCY (%) EFFICIENCY (%) EFFICIENCY (%) 60 60 60 12VIN 12VIN 12VIN 24VIN 24VIN 24VIN 36VIN 36VIN 36VIN 50 50 50 0 1 2 3 0 1 2 3 0 1 2 3 LOAD CURRENT (A) LOAD CURRENT (A) LOAD CURRENT (A) 8065 G04 8065 G05 8065 G06
Efficiency, VOUT = 3.3V, Efficiency, VOUT = 5V, Efficiency, VOUT = 8V, BIAS = 5V BIAS = 5V BIAS = 5V
95 95 100 85 85 90 75 75 80 EFFICIENCY (%) EFFICIENCY (%) EFFICIENCY (%) 65 65 12VIN 70 12VIN 24VIN 12VIN 24VIN 36VIN 24VIN 36VIN 36VIN 55 55 60 0 1 2 3 0 1 2 3 0 1 2 3 LOAD CURRENT (A) LOAD CURRENT (A) LOAD CURRENT (A) 8065 G07 8065 G08 8065 G09 Rev.B 4 For more information www.analog.com
