Datasheet LTC2353-18 (Analog Devices) - 9
| 制造商 | Analog Devices |
| 描述 | Buffered Dual, 18-Bit, 550ksps/Ch Differential ±10.24V ADC with 30VP-P Common Mode Range |
| 页数 / 页 | 38 / 9 — TYPICAL PERFORMANCE CHARACTERISTICS. TA = 25°C, VCC = +15V, VEE = –15V, … |
| 文件格式/大小 | PDF / 2.2 Mb |
| 文件语言 | 英语 |
TYPICAL PERFORMANCE CHARACTERISTICS. TA = 25°C, VCC = +15V, VEE = –15V, VDD = 5V,
该数据表的模型线
文件文字版本
LTC2353-18

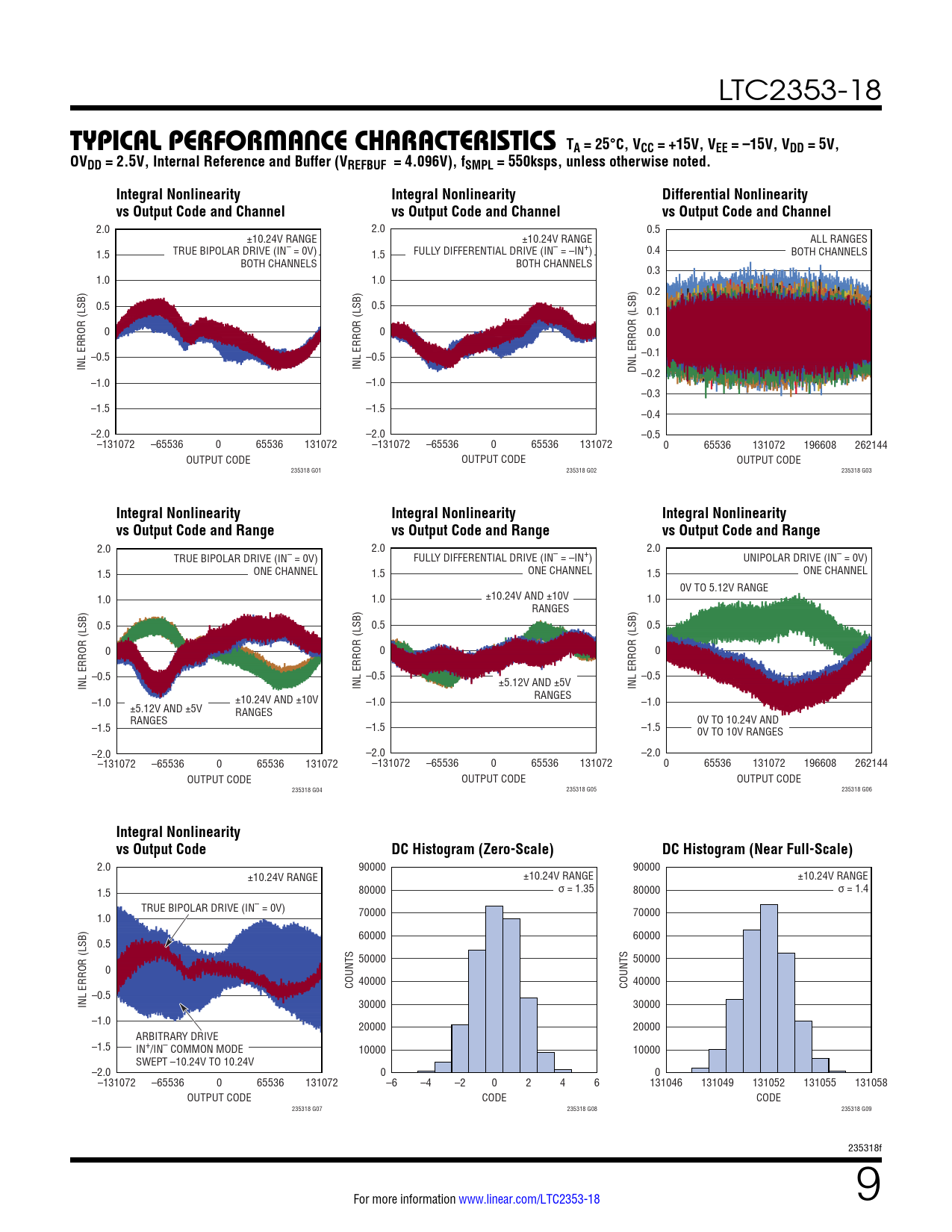

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, VCC = +15V, VEE = –15V, VDD = 5V, OVDD = 2.5V, Internal Reference and Buffer (VREFBUF = 4.096V), fSMPL = 550ksps, unless otherwise noted. Integral Nonlinearity Integral Nonlinearity Differential Nonlinearity vs Output Code and Channel vs Output Code and Channel vs Output Code and Channel
2.0 2.0 0.5 ±10.24V RANGE ±10.24V RANGE ALL RANGES TRUE BIPOLAR DRIVE (IN– = 0V) 1.5 FULLY DIFFERENTIAL DRIVE (IN– = –IN+) 1.5 0.4 BOTH CHANNELS BOTH CHANNELS BOTH CHANNELS 0.3 1.0 1.0 0.2 0.5 0.5 0.1 0 0 0.0 –0.5 –0.5 –0.1 INL ERROR (LSB) INL ERROR (LSB) DNL ERROR (LSB) –0.2 –1.0 –1.0 –0.3 –1.5 –1.5 –0.4 –2.0 –2.0 –0.5 –131072 –65536 0 65536 131072 –131072 –65536 0 65536 131072 0 65536 131072 196608 262144 OUTPUT CODE OUTPUT CODE OUTPUT CODE 235318 G01 235318 G02 235318 G03
Integral Nonlinearity Integral Nonlinearity Integral Nonlinearity vs Output Code and Range vs Output Code and Range vs Output Code and Range
2.0 2.0 2.0 TRUE BIPOLAR DRIVE (IN– = 0V) FULLY DIFFERENTIAL DRIVE (IN– = –IN+) UNIPOLAR DRIVE (IN– = 0V) ONE CHANNEL 1.5 ONE CHANNEL 1.5 ONE CHANNEL 1.5 0V TO 5.12V RANGE 1.0 ±10.24V AND ±10V 1.0 1.0 RANGES 0.5 0.5 0.5 0 0 0 –0.5 –0.5 –0.5 INL ERROR (LSB) ±5.12V AND ±5V INL ERROR (LSB) INL ERROR (LSB) ±10.24V AND ±10V RANGES –1.0 ±5.12V AND ±5V –1.0 –1.0 RANGES RANGES 0V TO 10.24V AND –1.5 –1.5 –1.5 0V TO 10V RANGES –2.0 –2.0 –2.0 –131072 –65536 0 65536 131072 –131072 –65536 0 65536 131072 0 65536 131072 196608 262144 OUTPUT CODE OUTPUT CODE OUTPUT CODE 235318 G04 235318 G05 235318 G06
Integral Nonlinearity vs Output Code DC Histogram (Zero-Scale) DC Histogram (Near Full-Scale)
2.0 90000 90000 ±10.24V RANGE ±10.24V RANGE ±10.24V RANGE 1.5 80000 σ = 1.35 80000 σ = 1.4 TRUE BIPOLAR DRIVE (IN– = 0V) 1.0 70000 70000 60000 60000 0.5 50000 50000 0 40000 COUNTS 40000 COUNTS –0.5 INL ERROR (LSB) 30000 30000 –1.0 20000 20000 ARBITRARY DRIVE –1.5 IN+/IN– COMMON MODE 10000 10000 SWEPT –10.24V TO 10.24V –2.0 0 0 –131072 –65536 0 65536 131072 –6 –4 –2 0 2 4 6 131046 131049 131052 131055 131058 OUTPUT CODE CODE CODE 235318 G07 235318 G08 235318 G09 235318f For more information www.linear.com/LTC2353-18 9 Document Outline FEATURES APPLICATIONS DESCRIPTION TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION ELECTRICAL CHARACTERISTICS CONVERTER CHARACTERISTICS DYNAMIC ACCURACY INTERNAL REFERENCE CHARACTERISTICS REFERENCE BUFFER CHARACTERISTICS DIGITAL INPUTS AND DIGITAL OUTPUTS POWER REQUIREMENTS ADC TIMING CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS PIN FUNCTIONS CONFIGURATION TABLES FUNCTIONAL BLOCK DIAGRAM TIMING DIAGRAM APPLICATIONS INFORMATION BOARD LAYOUT PACKAGE DESCRIPTION TYPICAL APPLICATION RELATED PARTS
TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, VCC = +15V, VEE = –15V, VDD = 5V, OVDD = 2.5V, Internal Reference and Buffer (VREFBUF = 4.096V), fSMPL = 550ksps, unless otherwise noted. Integral Nonlinearity Integral Nonlinearity Differential Nonlinearity vs Output Code and Channel vs Output Code and Channel vs Output Code and Channel
