Preliminary Datasheet TCB702FNG (Toshiba) - 4
| 制造商 | Toshiba |
| 描述 | Maximum Power 45 W BTL × 4-ch Audio Power IC with Built-in Self-Diagnostics |
| 页数 / 页 | 52 / 4 — Preliminary. 5.2. Pin Descriptions |
| 文件格式/大小 | PDF / 2.4 Mb |
| 文件语言 | 英语 |
Preliminary. 5.2. Pin Descriptions
该数据表的模型线
文件文字版本
Preliminary
TCB702FNG

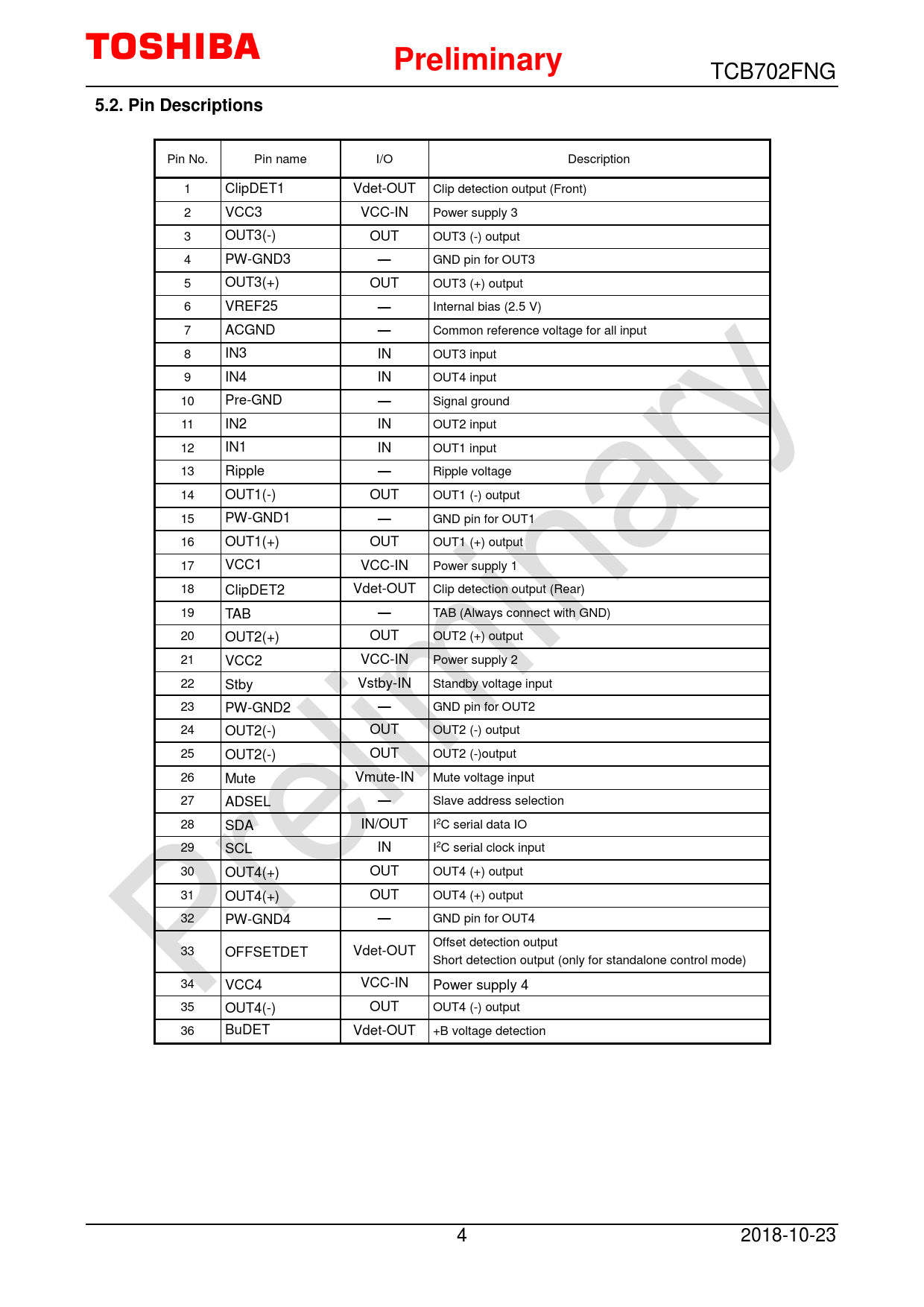

5.2. Pin Descriptions
Pin No. Pin name I/O Description 1 ClipDET1 Vdet-OUT Clip detection output (Front) 2 VCC3 VCC-IN Power supply 3 3 OUT3(-) OUT OUT3 (-) output 4 PW-GND3 ― GND pin for OUT3 5 OUT3(+) OUT OUT3 (+) output 6 VREF25 ― Internal bias (2.5 V) 7 ACGND ― Common reference voltage for all input 8 IN3 IN OUT3 input 9 IN4 IN OUT4 input 10 Pre-GND ― Signal ground 11 IN2 IN OUT2 input 12 IN1 IN OUT1 input 13 Ripple ― Ripple voltage 14 OUT1(-) OUT OUT1 (-) output 15 PW-GND1 ― GND pin for OUT1 16 OUT1(+) OUT OUT1 (+) output 17 VCC1 VCC-IN Power supply 1 18 ClipDET2 Vdet-OUT Clip detection output (Rear) 19 TAB ― TAB (Always connect with GND) 20 OUT2(+) OUT OUT2 (+) output 21 VCC2 VCC-IN Power supply 2 22 Stby Vstby-IN Standby voltage input 23 PW-GND2 ― GND pin for OUT2 24 OUT2(-) OUT OUT2 (-) output 25 OUT2(-) OUT OUT2 (-)output 26 Mute Vmute-IN Mute voltage input 27 ADSEL ― Slave address selection 28 SDA IN/OUT I2C serial data IO 29 SCL IN I2C serial clock input 30 OUT4(+) OUT OUT4 (+) output 31 OUT4(+) OUT OUT4 (+) output 32 PW-GND4 ― GND pin for OUT4 Offset detection output 33 OFFSETDET Vdet-OUT Short detection output (only for standalone control mode) 34 VCC4 VCC-IN Power supply 4 35 OUT4(-) OUT OUT4 (-) output 36 BuDET Vdet-OUT +B voltage detection 4 2018-10-23
TCB702FNG
5.2. Pin Descriptions
Pin No. Pin name I/O Description 1 ClipDET1 Vdet-OUT Clip detection output (Front) 2 VCC3 VCC-IN Power supply 3 3 OUT3(-) OUT OUT3 (-) output 4 PW-GND3 ― GND pin for OUT3 5 OUT3(+) OUT OUT3 (+) output 6 VREF25 ― Internal bias (2.5 V) 7 ACGND ― Common reference voltage for all input 8 IN3 IN OUT3 input 9 IN4 IN OUT4 input 10 Pre-GND ― Signal ground 11 IN2 IN OUT2 input 12 IN1 IN OUT1 input 13 Ripple ― Ripple voltage 14 OUT1(-) OUT OUT1 (-) output 15 PW-GND1 ― GND pin for OUT1 16 OUT1(+) OUT OUT1 (+) output 17 VCC1 VCC-IN Power supply 1 18 ClipDET2 Vdet-OUT Clip detection output (Rear) 19 TAB ― TAB (Always connect with GND) 20 OUT2(+) OUT OUT2 (+) output 21 VCC2 VCC-IN Power supply 2 22 Stby Vstby-IN Standby voltage input 23 PW-GND2 ― GND pin for OUT2 24 OUT2(-) OUT OUT2 (-) output 25 OUT2(-) OUT OUT2 (-)output 26 Mute Vmute-IN Mute voltage input 27 ADSEL ― Slave address selection 28 SDA IN/OUT I2C serial data IO 29 SCL IN I2C serial clock input 30 OUT4(+) OUT OUT4 (+) output 31 OUT4(+) OUT OUT4 (+) output 32 PW-GND4 ― GND pin for OUT4 Offset detection output 33 OFFSETDET Vdet-OUT Short detection output (only for standalone control mode) 34 VCC4 VCC-IN Power supply 4 35 OUT4(-) OUT OUT4 (-) output 36 BuDET Vdet-OUT +B voltage detection 4 2018-10-23
