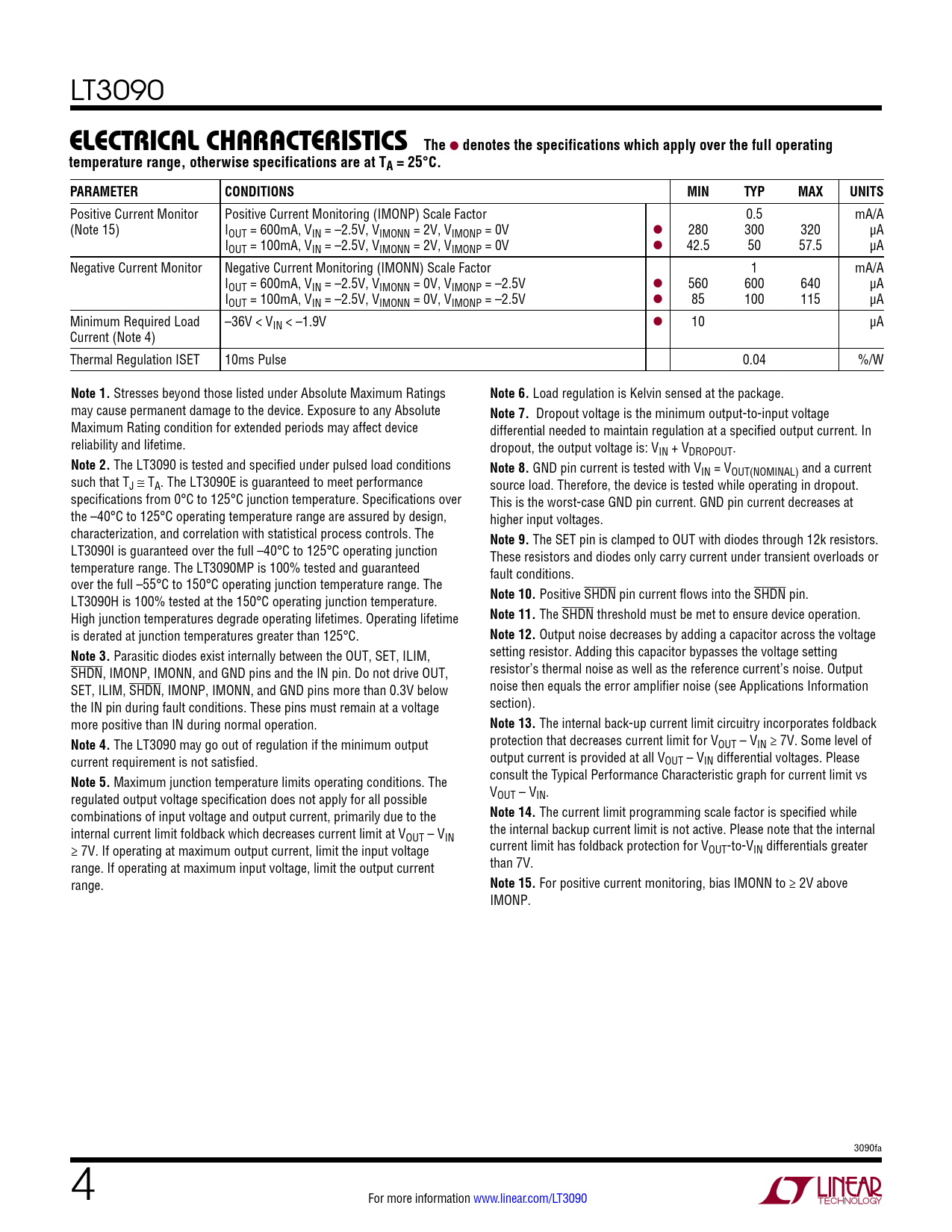

e lecTrical characTerisTics The. denotes the specifications which apply over the full operating
该数据表的模型线
文件文字版本
LT3090
e lecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. PARAMETER CONDITIONS MIN TYP MAX UNITS
Positive Current Monitor Positive Current Monitoring (IMONP) Scale Factor 0.5 mA/A (Note 15) IOUT = 600mA, VIN = –2.5V, VIMONN = 2V, VIMONP = 0V l 280 300 320 µA IOUT = 100mA, VIN = –2.5V, VIMONN = 2V, VIMONP = 0V l 42.5 50 57.5 µA Negative Current Monitor Negative Current Monitoring (IMONN) Scale Factor 1 mA/A IOUT = 600mA, VIN = –2.5V, VIMONN = 0V, VIMONP = –2.5V l 560 600 640 µA IOUT = 100mA, VIN = –2.5V, VIMONN = 0V, VIMONP = –2.5V l 85 100 115 µA Minimum Required Load –36V < VIN < –1.9V l 10 µA Current (Note 4) Thermal Regulation ISET 10ms Pulse 0.04 %/W
