Datasheet LT3015 (Analog Devices) - 8
| 制造商 | Analog Devices |
| 描述 | 1.5A, Low Noise, Negative Linear Regulator with Precision Current Limit |
| 页数 / 页 | 26 / 8 — TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. … |
| 文件格式/大小 | PDF / 555 Kb |
| 文件语言 | 英语 |

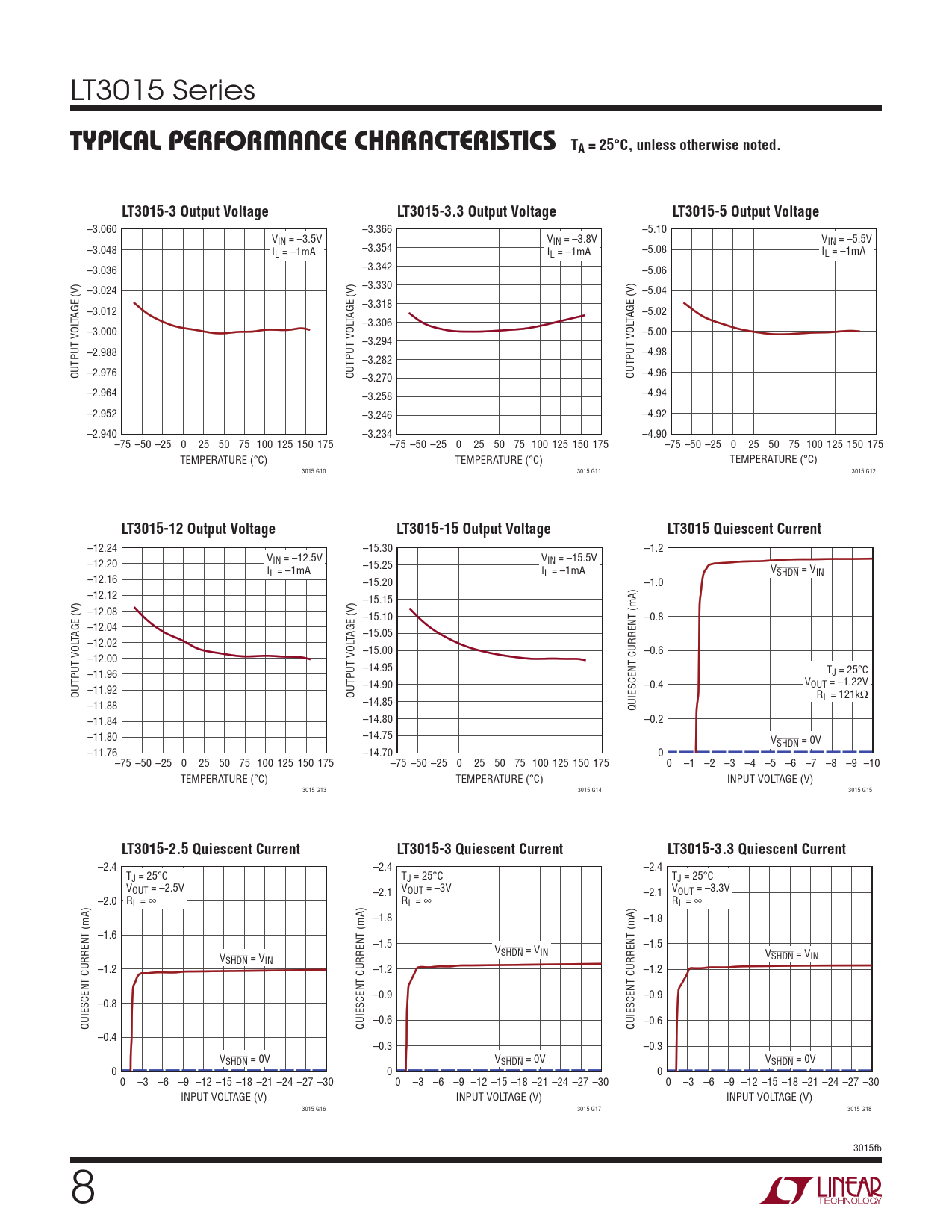

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. LT3015-3 Output Voltage. LT3015-3.3 Output Voltage
该数据表的模型线
- LT3015EDD#PBF LT3015EDD#TRPBF LT3015EDD-12#PBF LT3015EDD-12#TRPBF LT3015EDD-15#PBF LT3015EDD-15#TRPBF LT3015EDD-2.5#PBF LT3015EDD-2.5#TRPBF LT3015EDD-3#PBF LT3015EDD-3#TRPBF LT3015EDD-3.3#PBF LT3015EDD-3.3#TRPBF LT3015EDD-5#PBF LT3015EDD-5#TRPBF LT3015EMSE#PBF LT3015EMSE#TRPBF LT3015EMSE-12#PBF LT3015EMSE-12#TRPBF LT3015EMSE-15#PBF LT3015EMSE-15#TRPBF LT3015EMSE-2.5#PBF LT3015EMSE-2.5#TRPBF LT3015EMSE-3#PBF LT3015EMSE-3#TRPBF LT3015EMSE-3.3#PBF LT3015EMSE-3.3#TRPBF LT3015EMSE-5#PBF LT3015EMSE-5#TRPBF LT3015EQ#PBF LT3015EQ#TRPBF LT3015EQ-12#PBF LT3015EQ-12#TRPBF LT3015EQ-15#PBF LT3015EQ-15#TRPBF LT3015EQ-2.5#PBF LT3015EQ-2.5#TRPBF LT3015EQ-3#PBF LT3015EQ-3#TRPBF LT3015EQ-3.3#PBF LT3015EQ-3.3#TRPBF LT3015EQ-5#PBF LT3015EQ-5#TRPBF LT3015ET#PBF LT3015ET-12#PBF LT3015ET-15#PBF LT3015ET-2.5#PBF LT3015ET-3#PBF LT3015ET-3.3#PBF LT3015ET-5#PBF LT3015IDD#PBF LT3015IDD#TRPBF LT3015IDD-12#PBF LT3015IDD-12#TRPBF LT3015IDD-15#PBF LT3015IDD-15#TRPBF LT3015IDD-2.5#PBF LT3015IDD-2.5#TRPBF LT3015IDD-3#PBF LT3015IDD-3#TRPBF LT3015IDD-3.3#PBF LT3015IDD-3.3#TRPBF LT3015IDD-5#PBF LT3015IDD-5#TRPBF LT3015IMSE#PBF LT3015IMSE#TRPBF LT3015IMSE-12#PBF LT3015IMSE-12#TRPBF LT3015IMSE-15#PBF LT3015IMSE-15#TRPBF LT3015IMSE-2.5#PBF LT3015IMSE-2.5#TRPBF LT3015IMSE-3#PBF LT3015IMSE-3#TRPBF LT3015IMSE-3.3#PBF LT3015IMSE-3.3#TRPBF LT3015IMSE-5#PBF LT3015IMSE-5#TRPBF LT3015IQ#PBF LT3015IQ#TRPBF LT3015IQ-12#PBF LT3015IQ-12#TRPBF LT3015IQ-15#PBF LT3015IQ-15#TRPBF LT3015IQ-2.5#PBF LT3015IQ-2.5#TRPBF LT3015IQ-3#PBF LT3015IQ-3#TRPBF LT3015IQ-3.3#PBF LT3015IQ-3.3#TRPBF LT3015IQ-5#PBF LT3015IQ-5#TRPBF LT3015IT#PBF LT3015IT-12#PBF LT3015IT-15#PBF LT3015IT-2.5#PBF LT3015IT-3#PBF LT3015IT-3.3#PBF LT3015IT-5#PBF LT3015MPMSE#PBF LT3015MPMSE#TR LT3015MPMSE#TRPBF LT3015MPMSE-12#PBF LT3015MPMSE-12#TRPBF LT3015MPMSE-15#PBF LT3015MPMSE-15#TRPBF LT3015MPMSE-2.5#PBF LT3015MPMSE-2.5#TRPBF LT3015MPMSE-3#PBF LT3015MPMSE-3#TRPBF LT3015MPMSE-3.3#PBF LT3015MPMSE-3.3#TRPBF LT3015MPMSE-5 LT3015MPMSE-5#PBF LT3015MPMSE-5#TRPBF LT3015MPQ#PBF LT3015MPQ#TRPBF LT3015MPQ-12#PBF LT3015MPQ-12#TRPBF LT3015MPQ-15#PBF LT3015MPQ-15#TRPBF LT3015MPQ-2.5#PBF LT3015MPQ-2.5#TRPBF LT3015MPQ-3#PBF LT3015MPQ-3#TRPBF LT3015MPQ-3.3#PBF LT3015MPQ-3.3#TRPBF LT3015MPQ-5#PBF LT3015MPQ-5#TRPBF
文件文字版本
LT3015 Series
TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. LT3015-3 Output Voltage LT3015-3.3 Output Voltage LT3015-5 Output Voltage
–3.060 –3.366 –5.10 VIN = –3.5V VIN = –3.8V VIN = –5.5V –3.048 I –3.354 L = –1mA IL = –1mA –5.08 IL = –1mA –3.036 –3.342 –5.06 –3.024 –3.330 –5.04 –3.318 TAGE (V) –3.012 TAGE (V) –3.306 TAGE (V) –5.02 –3.000 –5.00 –3.294 –2.988 –4.98 –3.282 OUTPUT VOL –2.976 OUTPUT VOL –3.270 OUTPUT VOL –4.96 –2.964 –3.258 –4.94 –2.952 –3.246 –4.92 –2.940 –3.234 –4.90 –75 –50 –25 0 25 50 75 100 125 150 175 –75 –50 –25 0 25 50 75 100 125 150 175 –75 –50 –25 0 25 50 75 100 125 150 175 TEMPERATURE (°C) TEMPERATURE (°C) TEMPERATURE (°C) 3015 G10 3015 G11 3015 G12
LT3015-12 Output Voltage LT3015-15 Output Voltage LT3015 Quiescent Current
–12.24 –15.30 –1.2 –12.20 VIN = –12.5V VIN = –15.5V I –15.25 I V L = –1mA SHDN = VIN –12.16 L = –1mA –15.20 –1.0 –12.12 –15.15 –12.08 –15.10 –0.8 –12.04 TAGE (V) –15.05 –12.02 TAGE (V) –15.00 –0.6 –12.00 –11.96 –14.95 TJ = 25°C –14.90 –0.4 VOUT = –1.22V OUTPUT VOL –11.92 OUTPUT VOL RL = 121kΩ –11.88 –14.85 QUIESCENT CURRENT (mA) –11.84 –14.80 –0.2 –11.80 –14.75 VSHDN = 0V –11.76 –14.70 0 –75 –50 –25 0 25 50 75 100 125 150 175 –75 –50 –25 0 25 50 75 100 125 150 175 0 –1 –2 –3 –4 –5 –6 –7 –8 –9 –10 TEMPERATURE (°C) TEMPERATURE (°C) INPUT VOLTAGE (V) 3015 G13 3015 G14 3015 G15
LT3015-2.5 Quiescent Current LT3015-3 Quiescent Current LT3015-3.3 Quiescent Current
–2.4 –2.4 –2.4 TJ = 25°C TJ = 25°C TJ = 25°C VOUT = –2.5V –2.1 VOUT = –3V –2.1 VOUT = –3.3V –2.0 RL = ∞ RL = ∞ RL = ∞ –1.8 –1.8 –1.6 –1.5 V –1.5 V SHDN = VIN V SHDN = VIN SHDN = VIN –1.2 –1.2 –1.2 –0.9 –0.9 –0.8 QUIESCENT CURRENT (mA) QUIESCENT CURRENT (mA) –0.6 QUIESCENT CURRENT (mA) –0.6 –0.4 –0.3 –0.3 VSHDN = 0V VSHDN = 0V VSHDN = 0V 0 0 0 0 –3 –6 –9 –12 –15 –18 –21 –24 –27 –30 0 –3 –6 –9 –12 –15 –18 –21 –24 –27 –30 0 –3 –6 –9 –12 –15 –18 –21 –24 –27 –30 INPUT VOLTAGE (V) INPUT VOLTAGE (V) INPUT VOLTAGE (V) 3015 G16 3015 G17 3015 G18 3015fb 8 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
