Datasheet LT3032 (Analog Devices) - 2
| 制造商 | Analog Devices |
| 描述 | Dual 150mA Positive/Negative Low Noise Low Dropout Linear Regulator |
| 页数 / 页 | 24 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). EXPOSED PAD (PIN … |
| 文件格式/大小 | PDF / 410 Kb |
| 文件语言 | 英语 |
ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). EXPOSED PAD (PIN 15) IS GND, MUST BE SOLDERED TO PINS 4, 5 ON PCB
该数据表的模型线
- LT3032EDE#PBF LT3032EDE#TRPBF LT3032EDE-12#PBF LT3032EDE-12#TRPBF LT3032EDE-15#PBF LT3032EDE-15#TRPBF LT3032EDE-3.3#PBF LT3032EDE-3.3#TRPBF LT3032EDE-5#PBF LT3032EDE-5#TRPBF LT3032IDE#PBF LT3032IDE#TRPBF LT3032IDE-12#PBF LT3032IDE-12#TRPBF LT3032IDE-15#PBF LT3032IDE-15#TRPBF LT3032IDE-3.3#PBF LT3032IDE-3.3#TRPBF LT3032IDE-5#PBF LT3032IDE-5#TRPBF LT3032MPDE#PBF LT3032MPDE#TRPBF LT3032MPDE-12#PBF LT3032MPDE-12#TRPBF LT3032MPDE-15#PBF LT3032MPDE-15#TRPBF LT3032MPDE-3.3#PBF LT3032MPDE-3.3#TRPBF LT3032MPDE-5#PBF LT3032MPDE-5#TRPBF
文件文字版本
LT3032 Series

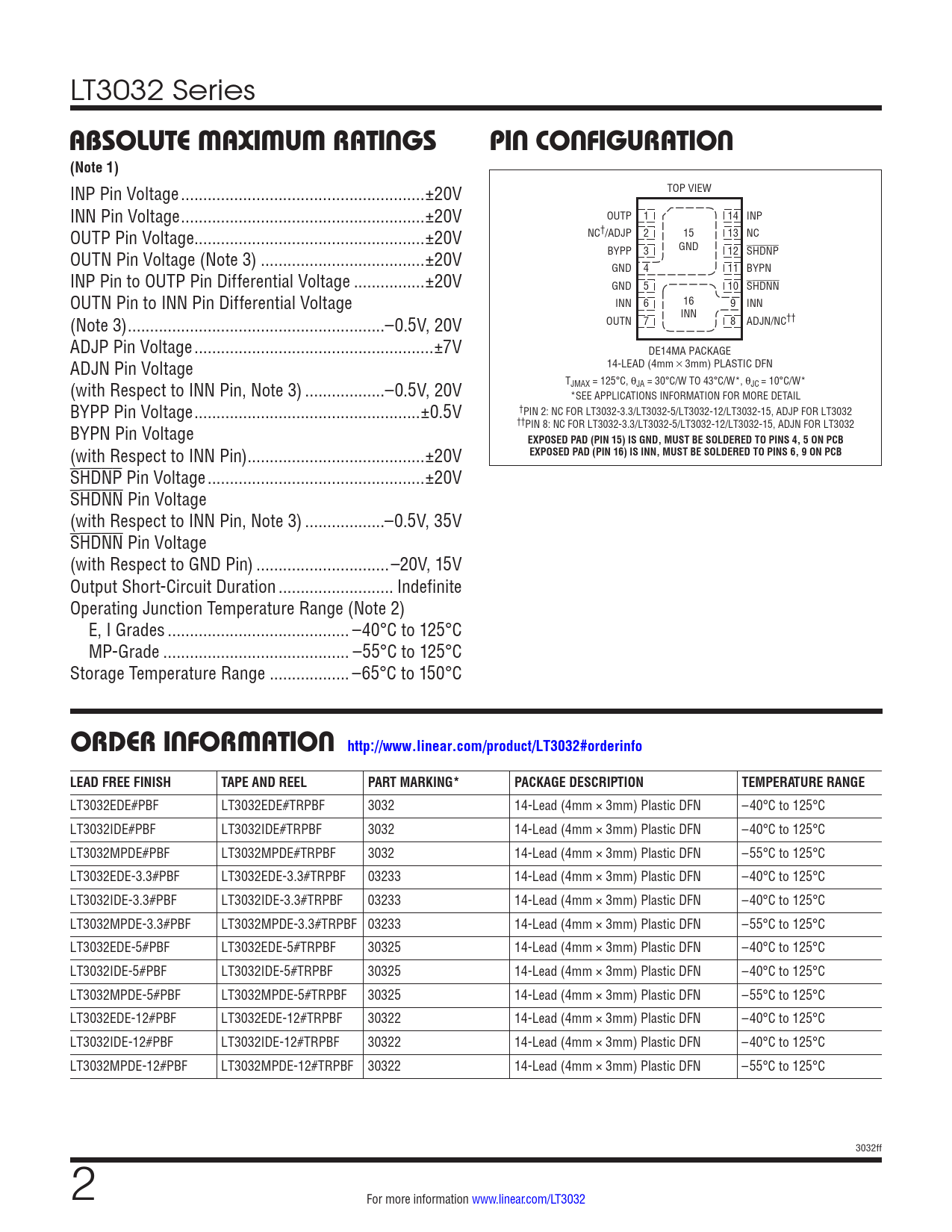

ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
INP Pin Voltage ...±20V TOP VIEW INN Pin Voltage ...±20V OUTP 1 14 INP OUTP Pin Voltage..±20V NC†/ADJP 2 15 13 NC GND OUTN Pin Voltage (Note 3) ...±20V BYPP 3 12 SHDNP GND 4 11 BYPN INP Pin to OUTP Pin Differential Voltage ..±20V GND 5 10 SHDNN OUTN Pin to INN Pin Differential Voltage INN 6 16 9 INN (Note 3) ..–0.5V, 20V INN OUTN 7 8 ADJN/NC†† ADJP Pin Voltage ..±7V DE14MA PACKAGE ADJN Pin Voltage 14-LEAD (4mm × 3mm) PLASTIC DFN (with Respect to INN Pin, Note 3) ..–0.5V, 20V TJMAX = 125°C, θJA = 30°C/W TO 43°C/W*, θJC = 10°C/W* *SEE APPLICATIONS INFORMATION FOR MORE DETAIL BYPP Pin Voltage ...±0.5V †PIN 2: NC FOR LT3032-3.3/LT3032-5/LT3032-12/LT3032-15, ADJP FOR LT3032 †† BYPN Pin Voltage PIN 8: NC FOR LT3032-3.3/LT3032-5/LT3032-12/LT3032-15, ADJN FOR LT3032
EXPOSED PAD (PIN 15) IS GND, MUST BE SOLDERED TO PINS 4, 5 ON PCB
(with Respect to INN Pin) ..±20V
EXPOSED PAD (PIN 16) IS INN, MUST BE SOLDERED TO PINS 6, 9 ON PCB
SHDNP Pin Voltage ...±20V SHDNN Pin Voltage (with Respect to INN Pin, Note 3) ..–0.5V, 35V SHDNN Pin Voltage (with Respect to GND Pin) ..–20V, 15V Output Short-Circuit Duration .. Indefinite Operating Junction Temperature Range (Note 2) E, I Grades ... –40°C to 125°C MP-Grade .. –55°C to 125°C Storage Temperature Range .. –65°C to 150°C
ORDER INFORMATION http://www.linear.com/product/LT3032#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3032EDE#PBF LT3032EDE#TRPBF 3032 14-Lead (4mm × 3mm) Plastic DFN –40°C to 125°C LT3032IDE#PBF LT3032IDE#TRPBF 3032 14-Lead (4mm × 3mm) Plastic DFN –40°C to 125°C LT3032MPDE#PBF LT3032MPDE#TRPBF 3032 14-Lead (4mm × 3mm) Plastic DFN –55°C to 125°C LT3032EDE-3.3#PBF LT3032EDE-3.3#TRPBF 03233 14-Lead (4mm × 3mm) Plastic DFN –40°C to 125°C LT3032IDE-3.3#PBF LT3032IDE-3.3#TRPBF 03233 14-Lead (4mm × 3mm) Plastic DFN –40°C to 125°C LT3032MPDE-3.3#PBF LT3032MPDE-3.3#TRPBF 03233 14-Lead (4mm × 3mm) Plastic DFN –55°C to 125°C LT3032EDE-5#PBF LT3032EDE-5#TRPBF 30325 14-Lead (4mm × 3mm) Plastic DFN –40°C to 125°C LT3032IDE-5#PBF LT3032IDE-5#TRPBF 30325 14-Lead (4mm × 3mm) Plastic DFN –40°C to 125°C LT3032MPDE-5#PBF LT3032MPDE-5#TRPBF 30325 14-Lead (4mm × 3mm) Plastic DFN –55°C to 125°C LT3032EDE-12#PBF LT3032EDE-12#TRPBF 30322 14-Lead (4mm × 3mm) Plastic DFN –40°C to 125°C LT3032IDE-12#PBF LT3032IDE-12#TRPBF 30322 14-Lead (4mm × 3mm) Plastic DFN –40°C to 125°C LT3032MPDE-12#PBF LT3032MPDE-12#TRPBF 30322 14-Lead (4mm × 3mm) Plastic DFN –55°C to 125°C 3032ff 2 For more information www.linear.com/LT3032 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Applications Information Package Description Revision History Typical Application Related Parts
