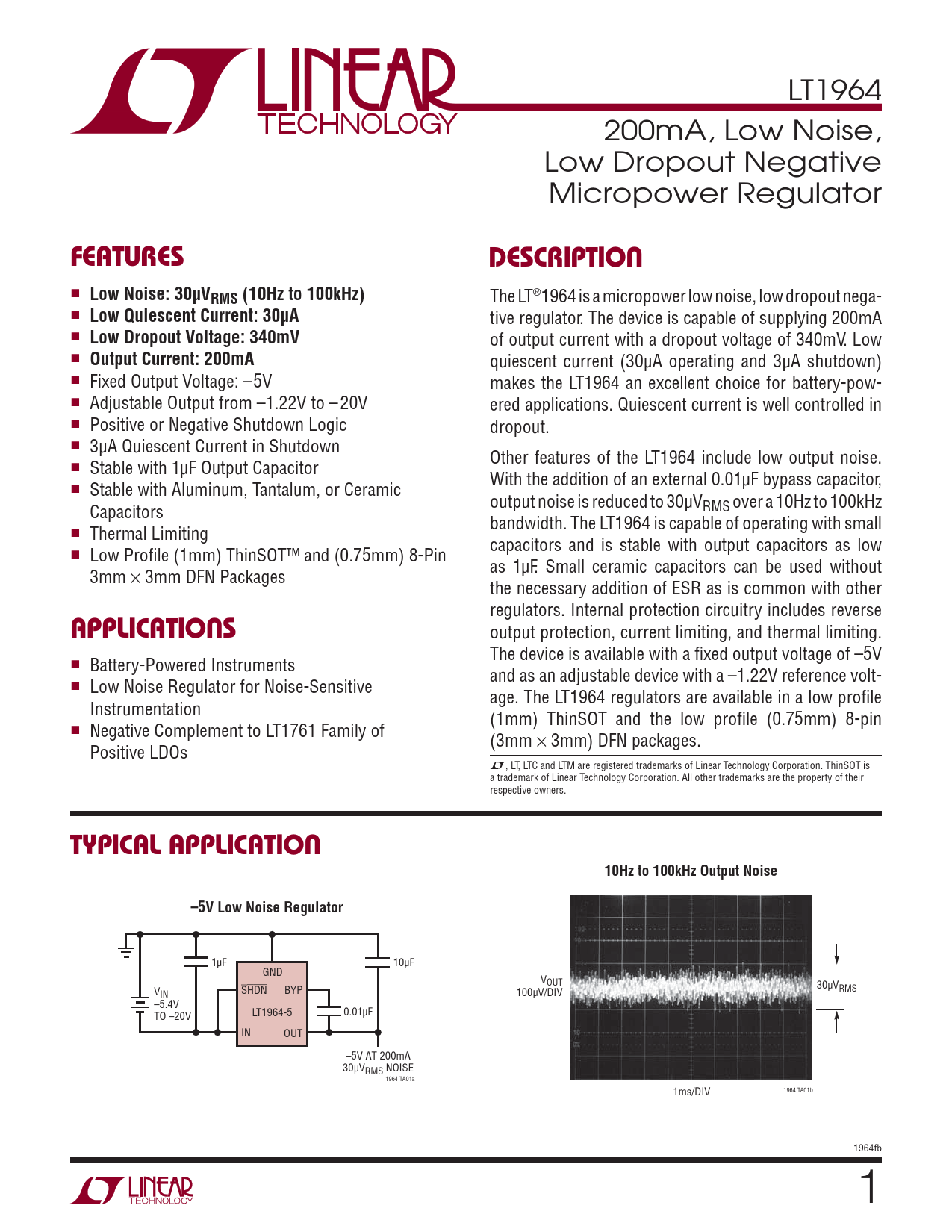

LT1964 200mA, Low Noise, Low Dropout Negative Micropower Regulator
FEATURES DESCRIPTION
n
Low Noise: 30μVRMS (10Hz to 100kHz)
The LT®1964 is a micropower low noise, low dropout nega- n
Low Quiescent Current: 30μA
tive regulator. The device is capable of supplying 200mA n
Low Dropout Voltage: 340mV
of output current with a dropout voltage of 340mV. Low n
Output Current: 200mA
quiescent current (30μA operating and 3μA shutdown) n Fixed Output Voltage: –5V makes the LT1964 an excellent choice for battery-pow- n Adjustable Output from –1.22V to – 20V ered applications. Quiescent current is well controlled in n Positive or Negative Shutdown Logic dropout. n 3μA Quiescent Current in Shutdown Other features of the LT1964 include low output noise. n Stable with 1μF Output Capacitor With the addition of an external 0.01μF bypass capacitor, n Stable with Aluminum, Tantalum, or Ceramic output noise is reduced to 30μVRMS over a 10Hz to 100kHz Capacitors bandwidth. The LT1964 is capable of operating with small n Thermal Limiting capacitors and is stable with output capacitors as low n Low Profi le (1mm) ThinSOT™ and (0.75mm) 8-Pin as 1μF. Small ceramic capacitors can be used without 3mm × 3mm DFN Packages the necessary addition of ESR as is common with other regulators. Internal protection circuitry includes reverse
APPLICATIONS
output protection, current limiting, and thermal limiting. The device is available with a fi xed output voltage of –5V n Battery-Powered Instruments and as an adjustable device with a –1.22V reference volt- n Low Noise Regulator for Noise-Sensitive age. The LT1964 regulators are available in a low profi le Instrumentation (1mm) ThinSOT and the low profi le (0.75mm) 8-pin n Negative Complement to LT1761 Family of (3mm × 3mm) DFN packages. Positive LDOs L, LT, LTC and LTM are registered trademarks of Linear Technology Corporation. ThinSOT is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners.
TYPICAL APPLICATION 10Hz to 100kHz Output Noise –5V Low Noise Regulator
1μF 10μF GND VOUT 30μV V SHDN BYP RMS IN 100μV/DIV –5.4V LT1964-5 0.01μF TO –20V IN OUT –5V AT 200mA 30μVRMS NOISE 1964 TA01a 1ms/DIV 1964 TA01b 1964fb 1
