Abridged Datasheet MAX20004, MAX20006, MAX20008 (Maxim) - 2
| 制造商 | Maxim |
| 描述 | 36V, 220kHz to 2.2MHz, 4A/6A/8A Fully Integrated Step-Down Converters |
| 页数 / 页 | 2 / 2 — ABRIDGED DATA SHEET. Ordering Information/Selector Guide. PART. VOUT. … |
| 修订版 | 3 |
| 文件格式/大小 | PDF / 323 Kb |
| 文件语言 | 英语 |
ABRIDGED DATA SHEET. Ordering Information/Selector Guide. PART. VOUT. MAXIMUM OPERATING. THOLD. SPREAD. (FB TIED TO BIAS). CURRENT (A)
该数据表的模型线
- MAX20004AFOA/VY+ MAX20004AFOA/VY+T MAX20004AFOB/VY+ MAX20004AFOB/VY+T MAX20004AFOC/VY+ MAX20004AFOC/VY+T MAX20004AFOD/VY+ MAX20004AFOD/VY+T
文件文字版本

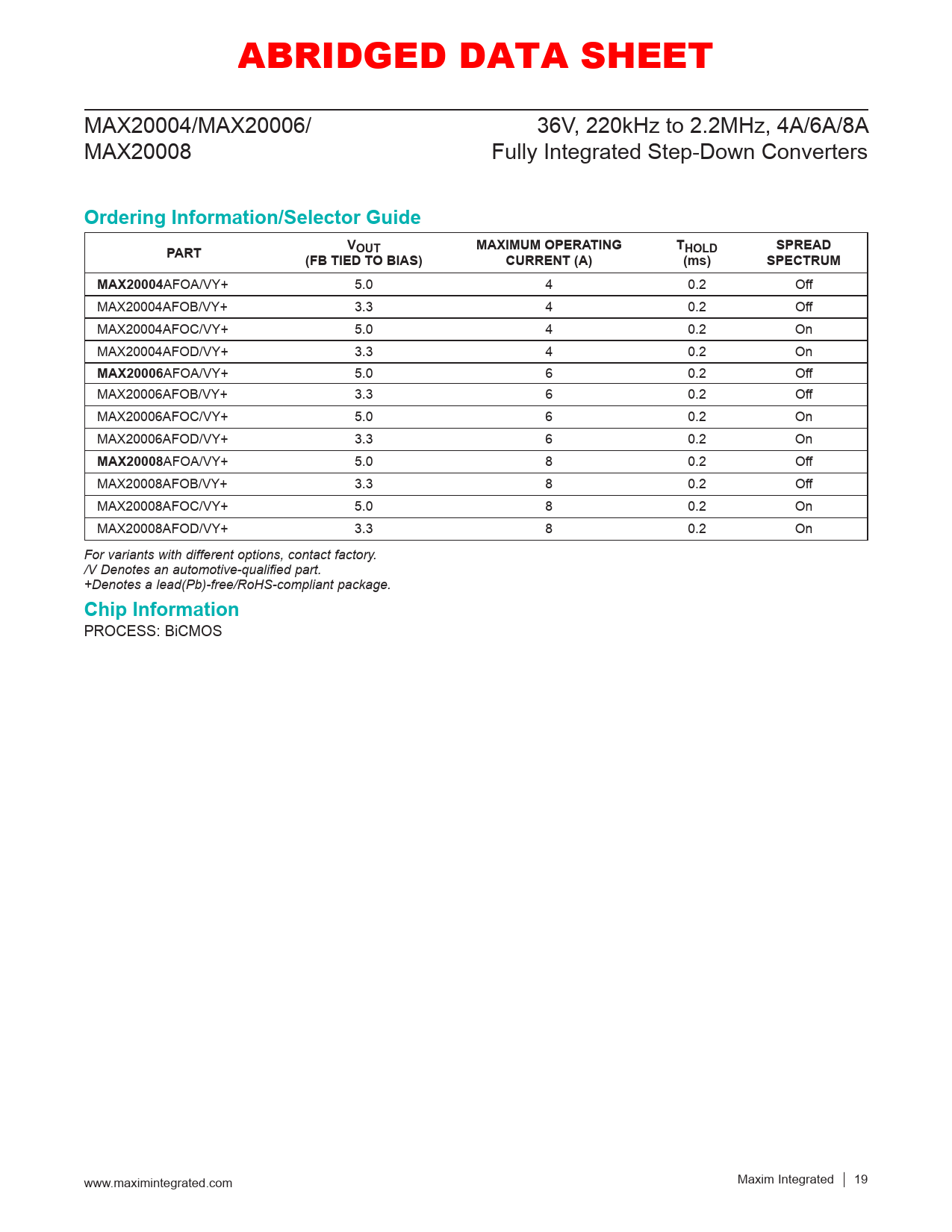

ABRIDGED DATA SHEET
MAX20004/MAX20006/ 36V, 220kHz to 2.2MHz, 4A/6A/8A MAX20008 Fully Integrated Step-Down Converters
Ordering Information/Selector Guide PART VOUT MAXIMUM OPERATING THOLD SPREAD (FB TIED TO BIAS) CURRENT (A) (ms) SPECTRUM MAX20004
AFOA/VY+ 5.0 4 0.2 Off MAX20004AFOB/VY+ 3.3 4 0.2 Off MAX20004AFOC/VY+ 5.0 4 0.2 On MAX20004AFOD/VY+ 3.3 4 0.2 On
MAX20006
AFOA/VY+ 5.0 6 0.2 Off MAX20006AFOB/VY+ 3.3 6 0.2 Off MAX20006AFOC/VY+ 5.0 6 0.2 On MAX20006AFOD/VY+ 3.3 6 0.2 On
MAX20008
AFOA/VY+ 5.0 8 0.2 Off MAX20008AFOB/VY+ 3.3 8 0.2 Off MAX20008AFOC/VY+ 5.0 8 0.2 On MAX20008AFOD/VY+ 3.3 8 0.2 On For variants with different options, contact factory. /V Denotes an automotive-qualified part. +Denotes a lead(Pb)-free/RoHS-compliant package.
Chip Information
PROCESS: BiCMOS www.maximintegrated.com Maxim Integrated │ 19 Document Outline _Hlk484544093
