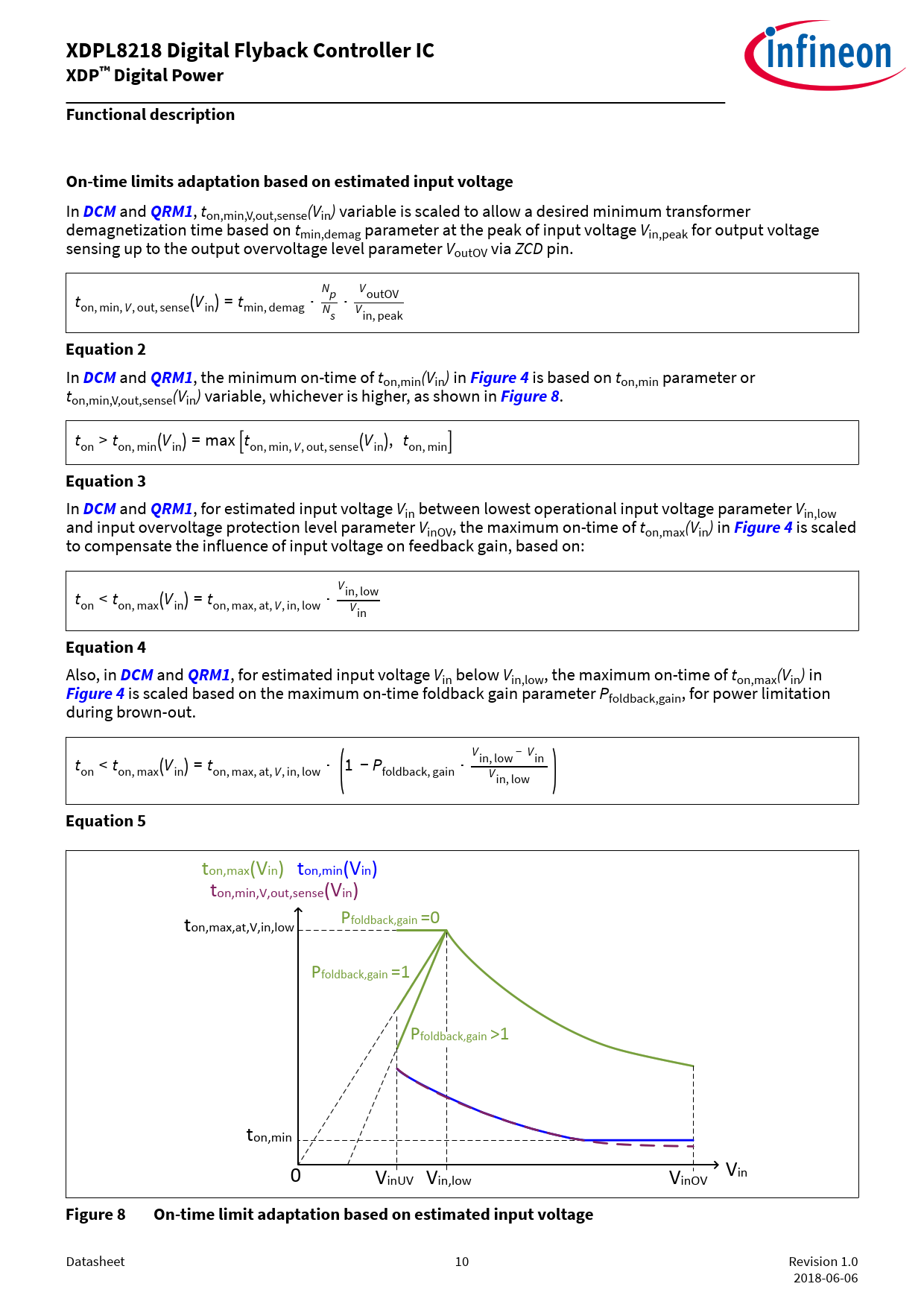

XDPL8218 Digital Flyback Controller IC XDP™ Digital Power Functional description On-time limits adaptation based on estimated input voltage
In
DCM
and
QRM1
, ton,min,V,out,sense(Vin) variable is scaled to allow a desired minimum transformer demagnetization time based on tmin,demag parameter at the peak of input voltage Vin,peak for output voltage sensing up to the output overvoltage level parameter VoutOV via ZCD pin. N V t p outOV on, min, V, out, sense Vin = tmin, demag ⋅ N ⋅ s Vin,peak
Equation 2
In
DCM
and
QRM1
, the minimum on-time of ton,min(Vin) in
Figure 4
is based on ton,min parameter or ton,min,V,out,sense(Vin) variable, whichever is higher, as shown in
Figure 8
. ton > ton,min Vin = max ton,min,V,out,sense Vin , ton,min
Equation 3
In
DCM
and
QRM1
, for estimated input voltage Vin between lowest operational input voltage parameter Vin,low and input overvoltage protection level parameter VinOV, the maximum on-time of ton,max(Vin) in
Figure 4
is scaled to compensate the influence of input voltage on feedback gain, based on: V t in, low on < ton, max Vin = ton, max, at, V, in, low ⋅ Vin
Equation 4
Also, in
DCM
and
QRM1
, for estimated input voltage Vin below Vin,low, the maximum on-time of ton,max(Vin) in
Figure 4
is scaled based on the maximum on-time foldback gain parameter Pfoldback,gain, for power limitation during brown-out. V t in, low − Vin on < ton, max Vin = ton, max, at, V, in, low ⋅ 1 − Pfoldback, gain ⋅ Vin,low
Equation 5
ton,max(Vin) ton,min(Vin) ton,min,V,out,sense(Vin) t P on,max,at,V,in,low foldback,gain =0 Pfoldback,gain =1 Pfoldback,gain >1 ton,min 0 V V inUV Vin,low VinOV in
Figure 8 On-time limit adaptation based on estimated input voltage
