Datasheet MPSA63, MPSA64 (ON Semiconductor) - 2
| 制造商 | ON Semiconductor |
| 描述 | Darlington Transistors |
| 页数 / 页 | 4 / 2 — MPSA63, MPSA64. ELECTRICAL CHARACTERISTICS. Characteristic. Symbol. Min. … |
| 文件格式/大小 | PDF / 146 Kb |
| 文件语言 | 英语 |

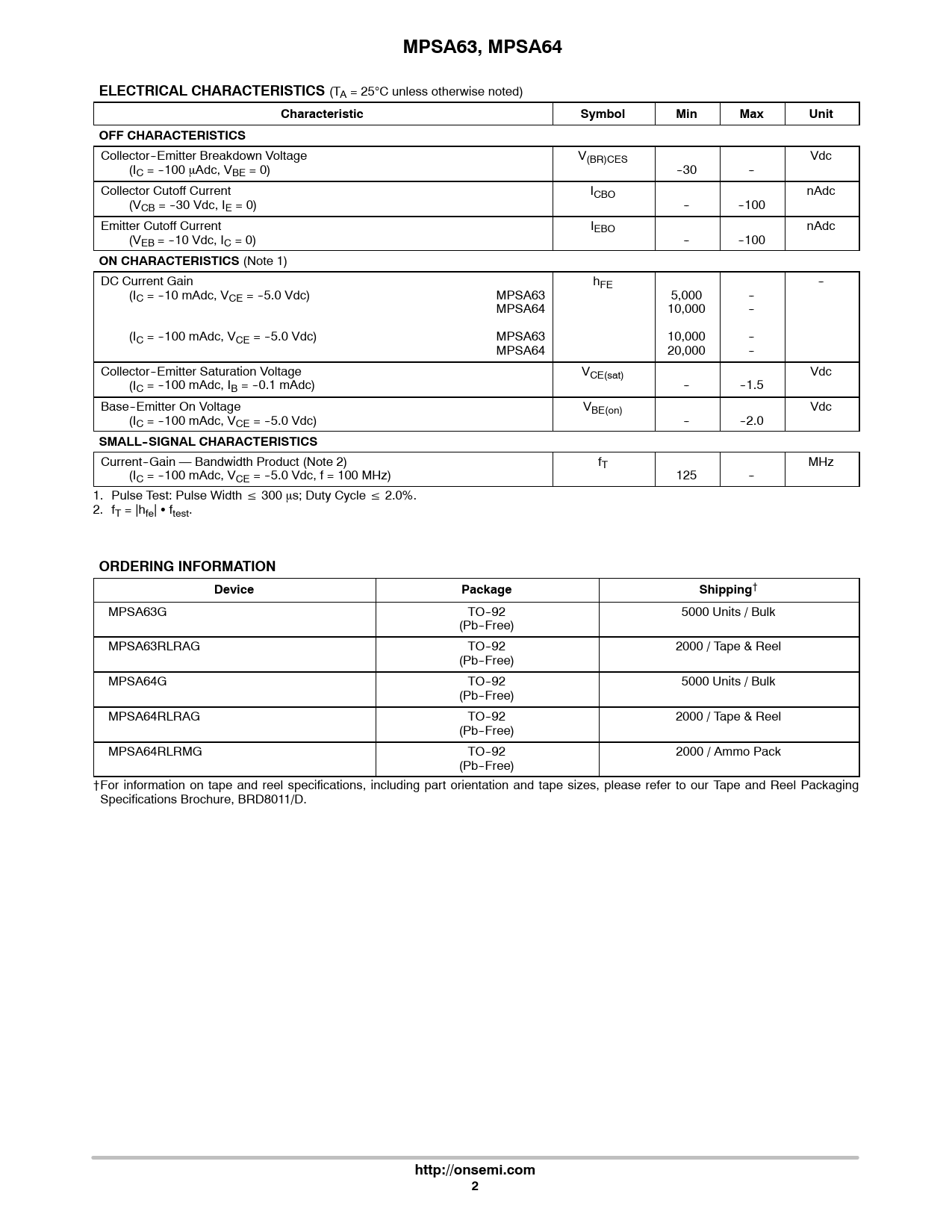

MPSA63, MPSA64. ELECTRICAL CHARACTERISTICS. Characteristic. Symbol. Min. Max. Unit. OFF CHARACTERISTICS. ON CHARACTERISTICS
该数据表的模型线
文件文字版本
MPSA63, MPSA64 ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise noted)
Characteristic Symbol Min Max Unit OFF CHARACTERISTICS
Collector- Emitter Breakdown Voltage V(BR)CES Vdc (IC = - 100 mAdc, VBE = 0) - 30 - Collector Cutoff Current ICBO nAdc (VCB = - 30 Vdc, IE = 0) - - 100 Emitter Cutoff Current IEBO nAdc (VEB = - 10 Vdc, IC = 0) - - 100
ON CHARACTERISTICS
(Note 1) DC Current Gain hFE - (IC = - 10 mAdc, VCE = - 5.0 Vdc) MPSA63 5,000 - MPSA64 10,000 - (IC = - 100 mAdc, VCE = - 5.0 Vdc) MPSA63 10,000 - MPSA64 20,000 - Collector- Emitter Saturation Voltage VCE(sat) Vdc (IC = - 100 mAdc, IB = - 0.1 mAdc) - - 1.5 Base- Emitter On Voltage VBE(on) Vdc (IC = - 100 mAdc, VCE = - 5.0 Vdc) - - 2.0
SMALL- SIGNAL CHARACTERISTICS
Current- Gain — Bandwidth Product (Note 2) fT MHz (IC = - 100 mAdc, VCE = - 5.0 Vdc, f = 100 MHz) 125 - 1. Pulse Test: Pulse Width ≤ 300 ms; Duty Cycle ≤ 2.0%. 2. fT = |hfe| S ftest.
ORDERING INFORMATION Device Package Shipping
† MPSA63G TO- 92 5000 Units / Bulk (Pb- Free) MPSA63RLRAG TO- 92 2000 / Tape & Reel (Pb- Free) MPSA64G TO- 92 5000 Units / Bulk (Pb- Free) MPSA64RLRAG TO- 92 2000 / Tape & Reel (Pb- Free) MPSA64RLRMG TO- 92 2000 / Ammo Pack (Pb- Free) †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.
http://onsemi.com 2
(TA = 25°C unless otherwise noted)
Characteristic Symbol Min Max Unit OFF CHARACTERISTICS
Collector- Emitter Breakdown Voltage V(BR)CES Vdc (IC = - 100 mAdc, VBE = 0) - 30 - Collector Cutoff Current ICBO nAdc (VCB = - 30 Vdc, IE = 0) - - 100 Emitter Cutoff Current IEBO nAdc (VEB = - 10 Vdc, IC = 0) - - 100
ON CHARACTERISTICS
(Note 1) DC Current Gain hFE - (IC = - 10 mAdc, VCE = - 5.0 Vdc) MPSA63 5,000 - MPSA64 10,000 - (IC = - 100 mAdc, VCE = - 5.0 Vdc) MPSA63 10,000 - MPSA64 20,000 - Collector- Emitter Saturation Voltage VCE(sat) Vdc (IC = - 100 mAdc, IB = - 0.1 mAdc) - - 1.5 Base- Emitter On Voltage VBE(on) Vdc (IC = - 100 mAdc, VCE = - 5.0 Vdc) - - 2.0
SMALL- SIGNAL CHARACTERISTICS
Current- Gain — Bandwidth Product (Note 2) fT MHz (IC = - 100 mAdc, VCE = - 5.0 Vdc, f = 100 MHz) 125 - 1. Pulse Test: Pulse Width ≤ 300 ms; Duty Cycle ≤ 2.0%. 2. fT = |hfe| S ftest.
ORDERING INFORMATION Device Package Shipping
† MPSA63G TO- 92 5000 Units / Bulk (Pb- Free) MPSA63RLRAG TO- 92 2000 / Tape & Reel (Pb- Free) MPSA64G TO- 92 5000 Units / Bulk (Pb- Free) MPSA64RLRAG TO- 92 2000 / Tape & Reel (Pb- Free) MPSA64RLRMG TO- 92 2000 / Ammo Pack (Pb- Free) †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.
http://onsemi.com 2
