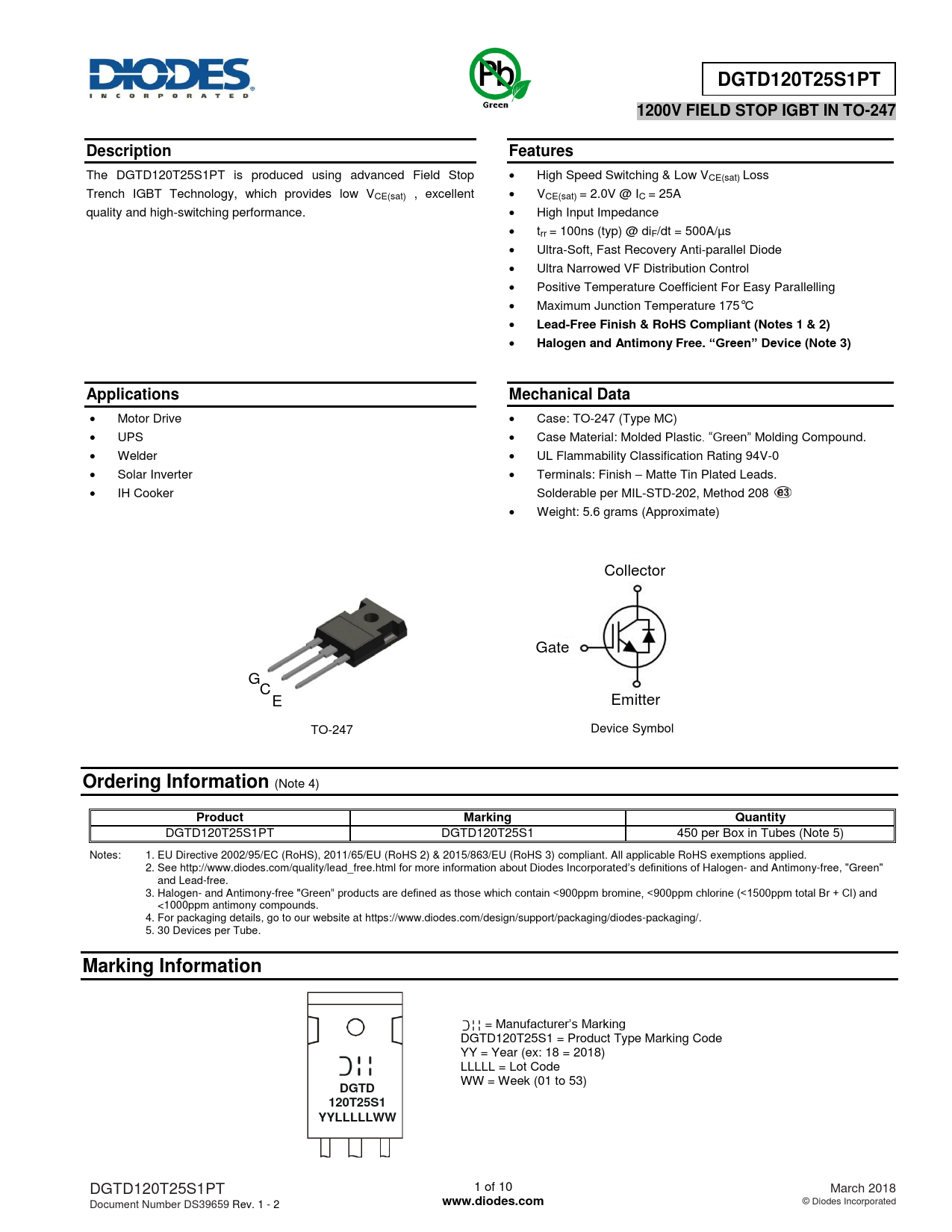

DGTD120T25S1PT. 1200V FIELD STO. P IGBT IN TO-247. Description. Features. Lead-Free Finish & RoHS Compliant (Notes 1 & 2)
该数据表的模型线
文件文字版本
DGTD120T25S1PT 1200V FIELD STO P IGBT IN TO-247 Description Features
The DGTD120T25S1PT is produced using advanced Field Stop High Speed Switching & Low VCE(sat) Loss Trench IGBT Technology, which provides low VCE(sat) , excellent VCE(sat) = 2.0V @ IC = 25A quality and high-switching performance. High Input Impedance trr = 100ns (typ) @ diF/dt = 500A/µs Ultra-Soft, Fast Recovery Anti-parallel Diode Ultra Narrowed VF Distribution Control Positive Temperature Coefficient For Easy Parallelling Maximum Junction Temperature 175°C
Lead-Free Finish & RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Applications Mechanical Data
Motor Drive Case: TO-247 (Type MC) UPS Case Material: Molded Plastic. “Green” Molding Compound. Welder UL Flammability Classification Rating 94V-0 Solar Inverter Terminals: Finish – Matte Tin Plated Leads. IH Cooker Solderable per MIL-STD-202, Method 208 Weight: 5.6 grams (Approximate) Collector Gate G C E Emitter TO-247 Device Symbol
Ordering Information
(Note 4)
Product Marking Quantity
DGTD120T25S1PT DGTD120T25S1 450 per Box in Tubes (Note 5) Notes: 1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied. 2. See http://www.diod es.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/. 5. 30 Devices per Tube .
Marking Information
= Manufacturer’s Marking Typical Configuration DGTD120T25S1 = Product Type Marking Code YY = Year (ex: 18 = 2018) LLLLL = Lot Code WW = Week (01 to 53)
DGTD 120T25S1 YYLLLLLWW
DGTD120T25S1PT 1 of 10 March 2018 Document Number DS39659 Rev. 1 - 2
