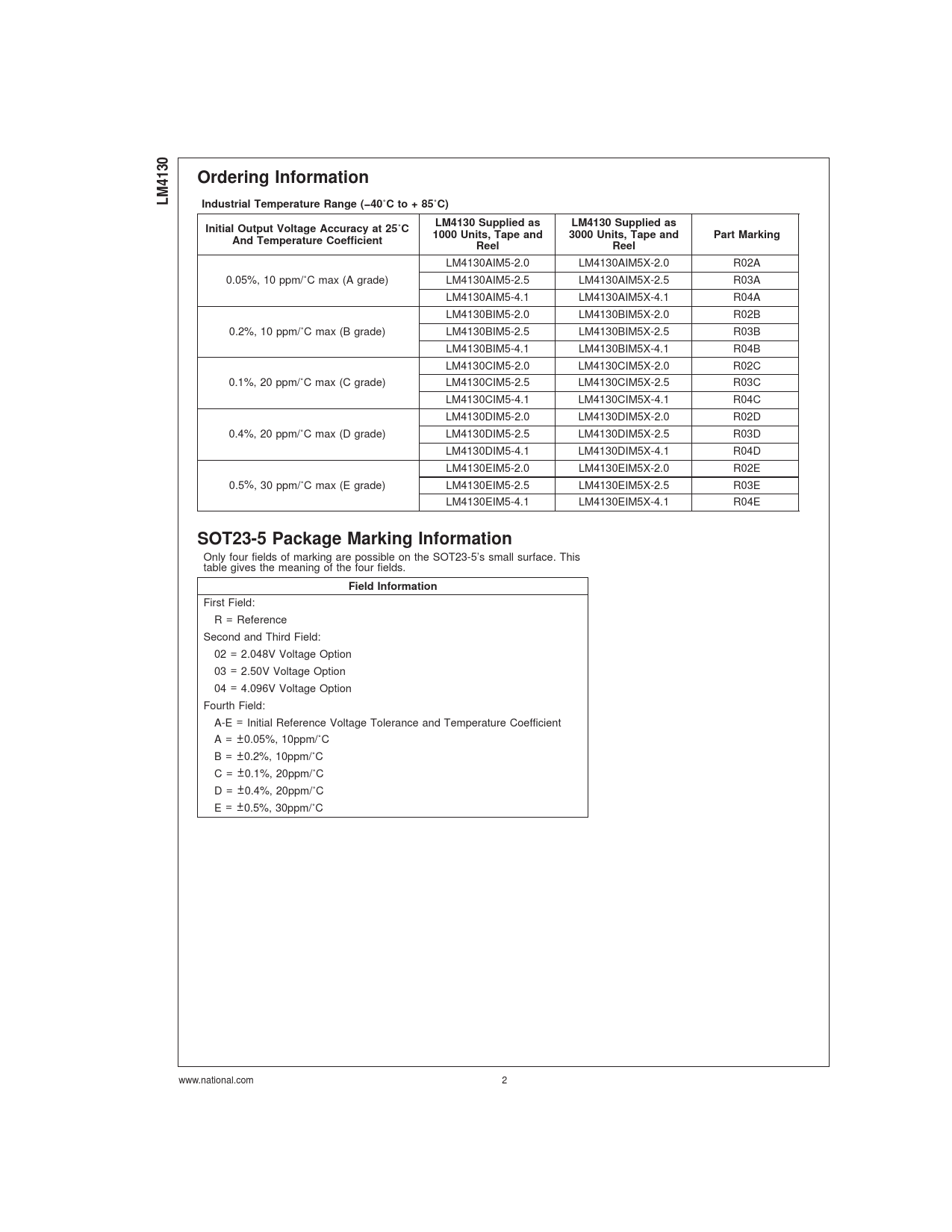

Ordering Information LM4130 Industrial Temperature Range (−40˚C to + 85˚C) LM4130 Supplied as LM4130 Supplied as Initial Output Voltage Accuracy at 25˚C 1000 Units, Tape and 3000 Units, Tape and Part Marking And Temperature Coefficient Reel Reel
LM4130AIM5-2.0 LM4130AIM5X-2.0 R02A 0.05%, 10 ppm/˚C max (A grade) LM4130AIM5-2.5 LM4130AIM5X-2.5 R03A LM4130AIM5-4.1 LM4130AIM5X-4.1 R04A LM4130BIM5-2.0 LM4130BIM5X-2.0 R02B 0.2%, 10 ppm/˚C max (B grade) LM4130BIM5-2.5 LM4130BIM5X-2.5 R03B LM4130BIM5-4.1 LM4130BIM5X-4.1 R04B LM4130CIM5-2.0 LM4130CIM5X-2.0 R02C 0.1%, 20 ppm/˚C max (C grade) LM4130CIM5-2.5 LM4130CIM5X-2.5 R03C LM4130CIM5-4.1 LM4130CIM5X-4.1 R04C LM4130DIM5-2.0 LM4130DIM5X-2.0 R02D 0.4%, 20 ppm/˚C max (D grade) LM4130DIM5-2.5 LM4130DIM5X-2.5 R03D LM4130DIM5-4.1 LM4130DIM5X-4.1 R04D LM4130EIM5-2.0 LM4130EIM5X-2.0 R02E 0.5%, 30 ppm/˚C max (E grade) LM4130EIM5-2.5 LM4130EIM5X-2.5 R03E LM4130EIM5-4.1 LM4130EIM5X-4.1 R04E
SOT23-5 Package Marking Information
Only four fields of marking are possible on the SOT23-5’s small surface. This table gives the meaning of the four fields.
Field Information
First Field: R = Reference Second and Third Field: 02 = 2.048V Voltage Option 03 = 2.50V Voltage Option 04 = 4.096V Voltage Option Fourth Field: A-E = Initial Reference Voltage Tolerance and Temperature Coefficient A = ±0.05%, 10ppm/˚C B = ±0.2%, 10ppm/˚C C = ±0.1%, 20ppm/˚C D = ±0.4%, 20ppm/˚C E = ±0.5%, 30ppm/˚C www.national.com 2
