link to page 9 Si8921/22 Data Sheet Electrical Specifications

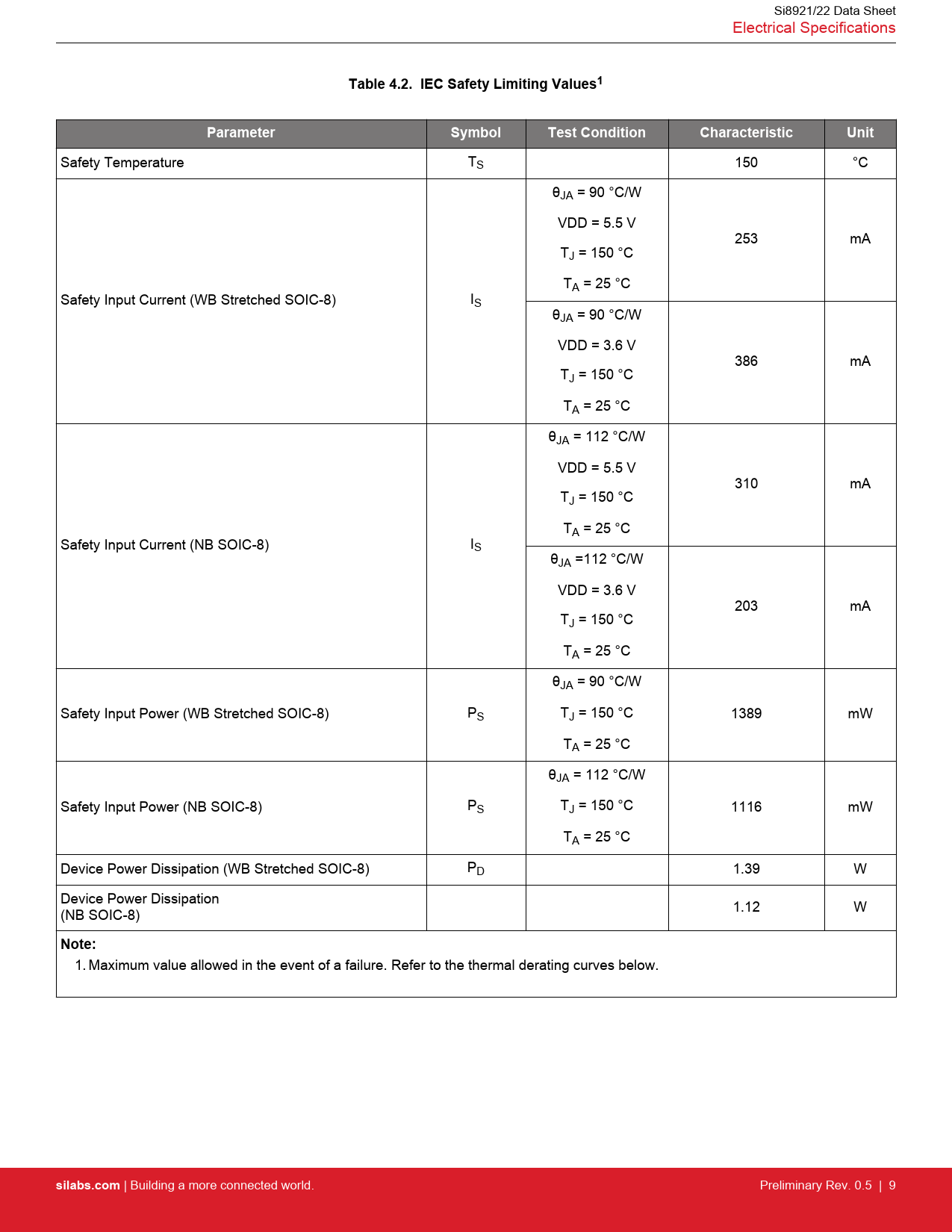

Table 4.2. IEC Safety Limiting Values1 Parameter Symbol Test Condition Characteristic Unit
Safety Temperature TS 150 °C θJA = 90 °C/W VDD = 5.5 V 253 mA TJ = 150 °C TA = 25 °C Safety Input Current (WB Stretched SOIC-8) IS θJA = 90 °C/W VDD = 3.6 V 386 mA TJ = 150 °C TA = 25 °C θJA = 112 °C/W VDD = 5.5 V 310 mA TJ = 150 °C TA = 25 °C Safety Input Current (NB SOIC-8) IS θJA =112 °C/W VDD = 3.6 V 203 mA TJ = 150 °C TA = 25 °C θJA = 90 °C/W Safety Input Power (WB Stretched SOIC-8) PS TJ = 150 °C 1389 mW TA = 25 °C θJA = 112 °C/W Safety Input Power (NB SOIC-8) PS TJ = 150 °C 1116 mW TA = 25 °C Device Power Dissipation (WB Stretched SOIC-8) PD 1.39 W Device Power Dissipation 1.12 W (NB SOIC-8)
Note:
1. Maximum value allowed in the event of a failure. Refer to the thermal derating curves below.
silabs.com
