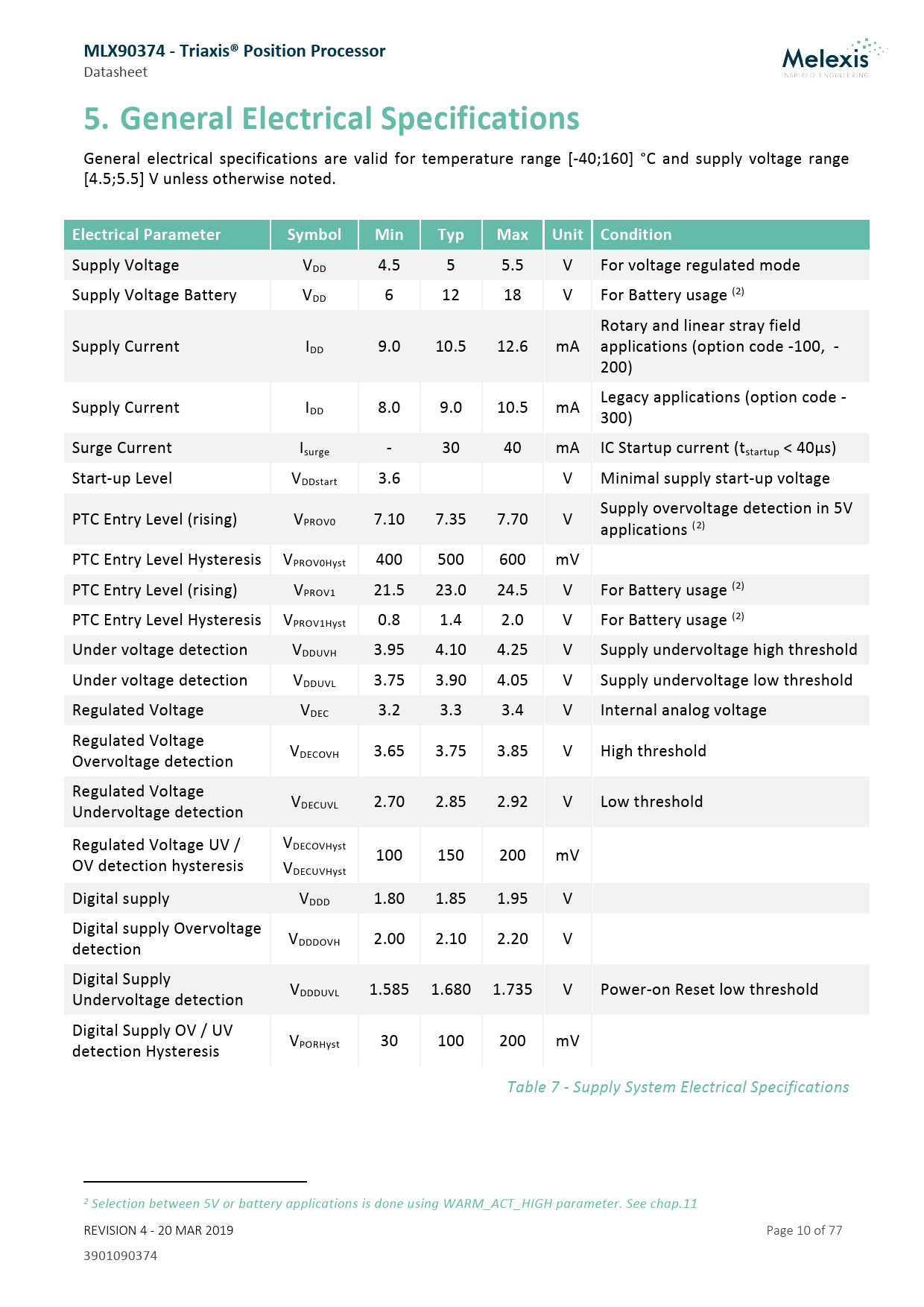

MLX90374 - Triaxis® Position Processor
Datasheet
5. General Electrical Specifications
General electrical specifications are valid for temperature range [-40;160] °C and supply voltage range [4.5;5.5] V unless otherwise noted.
Electrical Parameter Symbol Min Typ Max Unit Condition
Supply Voltage VDD 4.5 5 5.5 V For voltage regulated mode Supply Voltage Battery VDD 6 12 18 V For Battery usage (2) Rotary and linear stray field Supply Current IDD 9.0 10.5 12.6 mA applications (option code -100, - 200) Supply Current IDD 8.0 9.0 10.5 mA Legacy applications (option code - 300) Surge Current Isurge - 30 40 mA IC Startup current (tstartup < 40µs) Start-up Level VDDstart 3.6 V Minimal supply start-up voltage PTC Entry Level (rising) VPROV0 7.10 7.35 7.70 V Supply overvoltage detection in 5V applications (2) PTC Entry Level Hysteresis VPROV0Hyst 400 500 600 mV PTC Entry Level (rising) VPROV1 21.5 23.0 24.5 V For Battery usage (2) PTC Entry Level Hysteresis VPROV1Hyst 0.8 1.4 2.0 V For Battery usage (2) Under voltage detection VDDUVH 3.95 4.10 4.25 V Supply undervoltage high threshold Under voltage detection VDDUVL 3.75 3.90 4.05 V Supply undervoltage low threshold Regulated Voltage VDEC 3.2 3.3 3.4 V Internal analog voltage Regulated Voltage Overvoltage detection VDECOVH 3.65 3.75 3.85 V High threshold Regulated Voltage Undervoltage detection VDECUVL 2.70 2.85 2.92 V Low threshold Regulated Voltage UV / VDECOVHyst OV detection hysteresis 100 150 200 mV VDECUVHyst Digital supply VDDD 1.80 1.85 1.95 V Digital supply Overvoltage detection VDDDOVH 2.00 2.10 2.20 V Digital Supply Undervoltage detection VDDDUVL 1.585 1.680 1.735 V Power-on Reset low threshold Digital Supply OV / UV detection Hysteresis VPORHyst 30 100 200 mV Table 7 - Supply System Electrical Specifications 2 Selection between 5V or battery applications is done using WARM_ACT_HIGH parameter. See chap.11 REVISION 4 - 20 MAR 2019 Page 10 of 77 3901090374 Document Outline Features and Benefits Application Examples Description Ordering Information 1. Functional Diagram and Application Modes 2. Glossary of Terms 3. Pin Definitions and Descriptions 3.1. Pin Definition for SOIC-8 package 3.2. Pin Definition for DMP 4. Absolute Maximum Ratings 5. General Electrical Specifications 6. Timing Specification 6.1. General Timing Specifications 6.2. Timing Modes 6.2.1. Continuous Asynchronous Acquisition Mode 6.2.2. Continuous Synchronous Acquisition Mode 6.3. Timing Definitions 6.3.1. Startup Time 6.3.1.1. Normal Startup 6.3.1.2. Safe Startup 6.3.1.3. Startup phase in PWM mode 6.3.2. Latency (average) 6.3.3. Step Response (worst case) 6.4. PWM timing specifications 6.5. SENT timing specifications 7. Magnetic Field Specifications 7.1. Rotary Stray-field Immune Mode (-100 code) 7.2. Linear Stray-field Immune (-200 code) 7.3. Standard/Legacy Mode (-300 code) 8. Accuracy Specifications 8.1. Definition 8.1.1. Intrinsic Linearity Error 8.1.2. Total Angle Drift 8.2. Rotary Stray-field Immune (-100 code) 8.2.1. Nominal Performance 8.2.2. Limited Performances 8.3. Linear Stray-field Immune Mode (-200 code) 8.3.1. Nominal Performances 8.3.2. Limited Performances 8.4. Standard/Legacy Mode (-300 code) 8.4.1. Nominal Performances 8.4.2. Limited Performances 9. Memory Specifications 10. Digital output protocol 10.1. PWM (pulse width modulation) 10.1.1. Definition 10.1.2. PWM performances 10.2. Single Edge Nibble Transmission (SENT) SAE J2716 10.2.1. Sensor message definition 10.2.2. Sensor message frame contents 10.2.3. Single secure sensor A.3 10.2.4. Dual Throttle position sensor A.1 10.2.5. Start-up behaviour 10.2.6. SENT Output Timing configuration 10.2.7. Serial message channel (slow channel) 10.2.8. Serial Message Error Code 10.2.9. SENT configuration shorthand definition 11. End-User Programmable Items 11.1. End User Identification Items 12. Description of End-User Programmable Items 12.1. Sensor Front-End 12.1.1. SENSING MODE 12.1.2. GAINMIN and GAINMAX Parameters 12.2. Sensor DSP Configuration 12.2.1. Discontinuity Point (or Zero Degree Point) 12.2.2. CW (Clockwise) Parameter 12.2.3. Filter 12.2.3.1. FIR Filter 12.2.3.2. Exponential Moving Average (IIR) Filter 12.2.4. WORKING_RANGE Parameter for Angle Range Selection 12.2.5. WORK_RANGE_GAIN Parameter for Angle Range Selection 12.2.6. Piecewise Linear Transform 12.2.6.1. 4-Pts LNR Parameters 12.2.6.2. 8-Pts LNR Parameters 12.2.6.3. 17-Pts LNR Parameters 12.2.6.4. 32-Pts LNR parameters 12.2.7. Scaling Parameter 12.2.8. Thermal offset correction - OUTSLOPE 12.2.9. Second Output Gain and Offset Parameters 12.2.10. CLAMPING Parameters 12.3. Selection of Output modes 12.3.1. Digital Output Protocol (PROTOCOL) 12.3.2. PWM Output Polarity and Frequency 12.3.3. PWM Redundant Output 12.3.4. Dual PWM fault Reporting Mode 12.3.5. OUT mode (ABE_OUT_MODE) 12.3.6. SENT Serial Channel Configuration - Status and Communication Nibble 12.3.7. Switch Function (Kickdown) 12.4. Programmable Diagnostics Settings 12.4.1. Diagnostics Global Enable 12.4.2. Diagnostic Debouncer 12.4.3. Over/Under Temperature Diagnostic 12.4.4. PWM Diagnostic 13. Functional Safety 13.1. Safety Manual 13.2. Safety Mechanisms 14. Recommended Application Diagrams 14.1. Wiring with the MLX90374 in SOIC-8 Package 14.2. Wiring with the MLX90374 in DMP-4 Package (built-in capacitors) 15. Standard information regarding manufacturability of Melexis products with different soldering processes 16. ESD Precautions 17. Package Information 17.1. SOIC-8 - Package Dimensions 17.2. SOIC-8 - Pinout and Marking 17.3. SOIC-8 - Sensitive spot positioning 17.3.1. Rotary Stray-field Immune and Standard Mode Applications 17.3.2. Linear Stray-field Immune Applications 17.4. SOIC-8 - Angle detection 17.5. DMP-4 - Package Outline Dimensions (POD) STD1 1.27 17.6. DMP-4 - Package Outline Dimensions (POD) STD3 2.00 17.7. DMP-4 - Marking 17.8. DMP-4 - Sensitive Spot Positioning 17.8.1. Rotary Stray-field Immune or Standard Mode Applications 17.8.2. Linear Stray-field Immune Applications 17.9. DMP-4 - Angle detection 17.10. Packages Thermal Performances 18. Contact 19. Disclaimer 20. Revision History Table
