Datasheet SLND (Songle Relay) - 2
| 制造商 | Songle Relay |
| 描述 | Automotive Relay 30A |
| 页数 / 页 | 2 / 2 — SLND. Series. 30A. OUTLINE. DIMENSIONS. ,WIRING. DIAGRAM. Unit:mm. S. L. … |
| 文件格式/大小 | PDF / 4.1 Mb |
| 文件语言 | 英语 |

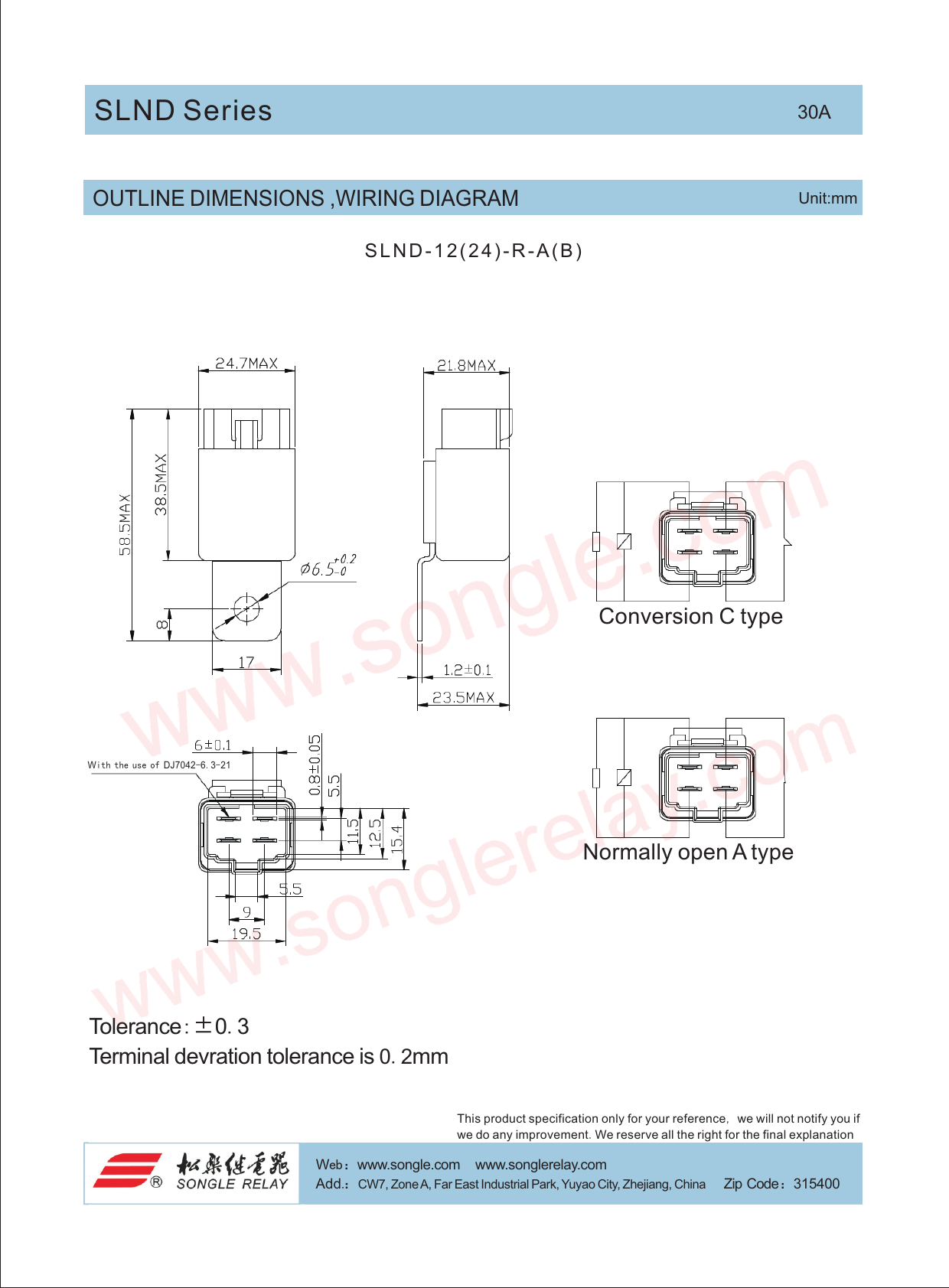

SLND. Series. 30A. OUTLINE. DIMENSIONS. ,WIRING. DIAGRAM. Unit:mm. S. L. N. D. -. 1. 2. (. 2. 4. ). -. R. -. A. (. B. ). Conversion. C. type. With. the. use. of. DJ7042-6.3-21. Normally
该数据表的模型线
文件文字版本
SLND Series 30A OUTLINE DIMENSIONS ,WIRING DIAGRAM Unit:mm S L N D - 1 2 ( 2 4 ) - R - A ( B ) Conversion C type With the use of DJ7042-6.3-21 Normally open A type Tolerance:±0.3 Terminal devration tolerance is 0.2mm This product specification only for your reference, we will not notify you if we do any improvement.We reserve all the right for the final explanation Web：www.songle.com www.songlerelay.com Email:sale@songle.com Web：www.songle.com www.songlerelay.com Add.：CW7, Zone A, Far East Industrial Park, Yuyao City, Zhejiang, China i Z p Code：315400 Add.：CW7, Zone A, Far East Industrial Park, Yuyao City, Zhejiang, China Zip Code：315400 Tel.： +86 574 62717777 62762658 62721968 a F x：+86 574 62721978 Document Outline 页 1 页 2
