Datasheet VLDB1232, VLDTG1232 (Vishay)
| 制造商 | Vishay |
| 描述 | Dome Lens SMD LED |
| 页数 / 页 | 10 / 1 — VLDB1232.., VLDTG1232.. Dome Lens SMD LED. FEATURES. DESCRIPTION. PRODUCT … |
| 修订版 | 1.0 |
| 文件格式/大小 | PDF / 238 Kb |
| 文件语言 | 英语 |
VLDB1232.., VLDTG1232.. Dome Lens SMD LED. FEATURES. DESCRIPTION. PRODUCT GROUP AND PACKAGE DATA. APPLICATIONS. SAFETY ADVICES
该数据表的模型线
文件文字版本

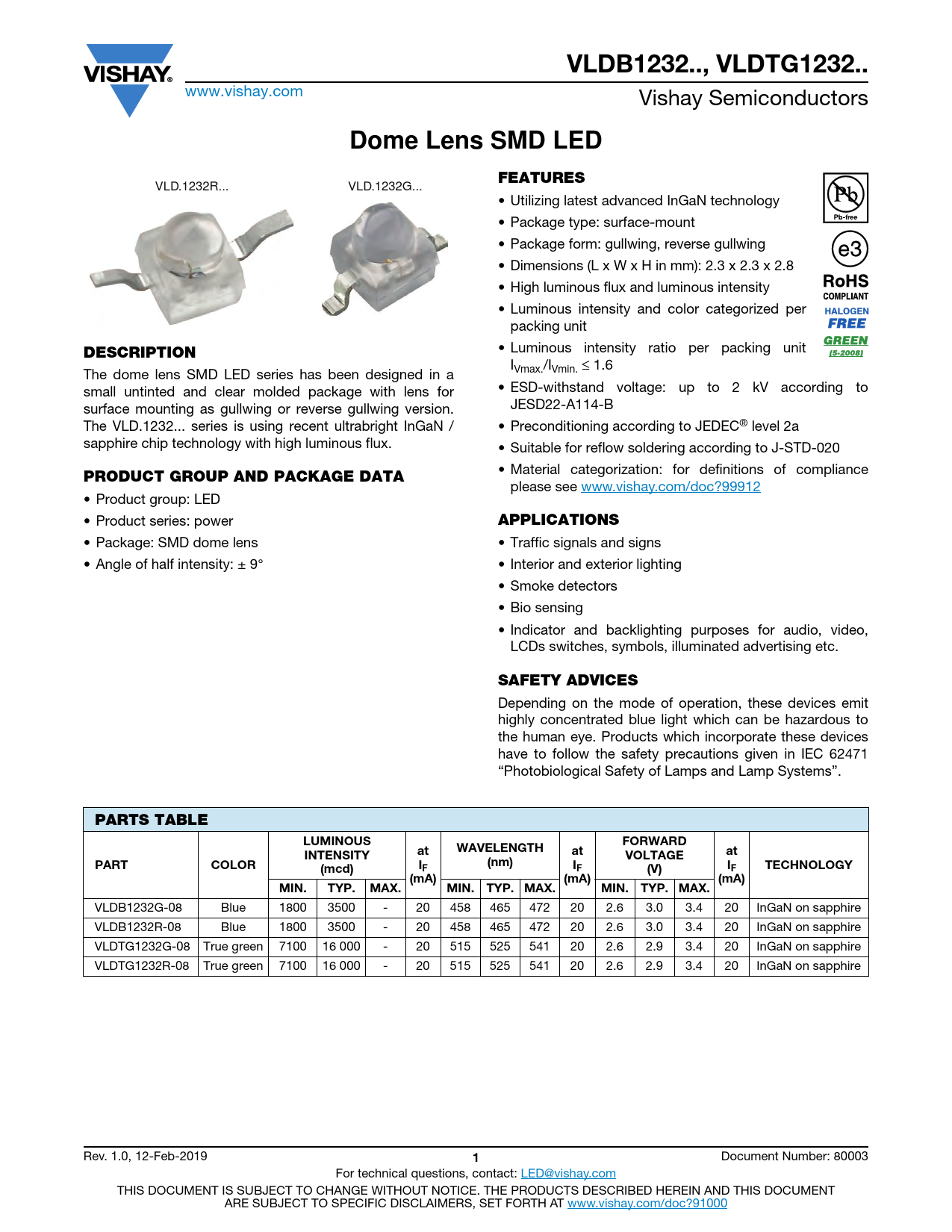

VLDB1232.., VLDTG1232..
www.vishay.com Vishay Semiconductors
Dome Lens SMD LED FEATURES
VLD.1232R... VLD.1232G... • Utilizing latest advanced InGaN technology • Package type: surface-mount • Package form: gullwing, reverse gullwing • Dimensions (L x W x H in mm): 2.3 x 2.3 x 2.8 • High luminous flux and luminous intensity • Luminous intensity and color categorized per packing unit
DESCRIPTION
• Luminous intensity ratio per packing unit I The dome lens SMD LED series has been designed in a Vmax./IVmin. ≤ 1.6 small untinted and clear molded package with lens for • ESD-withstand voltage: up to 2 kV according to surface mounting as gullwing or reverse gullwing version. JESD22-A114-B The VLD.1232... series is using recent ultrabright InGaN / • Preconditioning according to JEDEC® level 2a sapphire chip technology with high luminous flux. • Suitable for reflow soldering according to J-STD-020
PRODUCT GROUP AND PACKAGE DATA
• Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 • Product group: LED • Product series: power
APPLICATIONS
• Package: SMD dome lens • Traffic signals and signs • Angle of half intensity: ± 9° • Interior and exterior lighting • Smoke detectors • Bio sensing • Indicator and backlighting purposes for audio, video, LCDs switches, symbols, illuminated advertising etc.
SAFETY ADVICES
Depending on the mode of operation, these devices emit highly concentrated blue light which can be hazardous to the human eye. Products which incorporate these devices have to follow the safety precautions given in IEC 62471 “Photobiological Safety of Lamps and Lamp Systems”.
PARTS TABLE LUMINOUS FORWARD WAVELENGTH INTENSITY at at VOLTAGE at PART COLOR (nm) (mcd) IF IF (V) IF TECHNOLOGY (mA) (mA) (mA) MIN. TYP. MAX. MIN. TYP. MAX. MIN. TYP. MAX.
VLDB1232G-08 Blue 1800 3500 - 20 458 465 472 20 2.6 3.0 3.4 20 InGaN on sapphire VLDB1232R-08 Blue 1800 3500 - 20 458 465 472 20 2.6 3.0 3.4 20 InGaN on sapphire VLDTG1232G-08 True green 7100 16 000 - 20 515 525 541 20 2.6 2.9 3.4 20 InGaN on sapphire VLDTG1232R-08 True green 7100 16 000 - 20 515 525 541 20 2.6 2.9 3.4 20 InGaN on sapphire Rev. 1.0, 12-Feb-2019
1
Document Number: 80003 For technical questions, contact: LED@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
