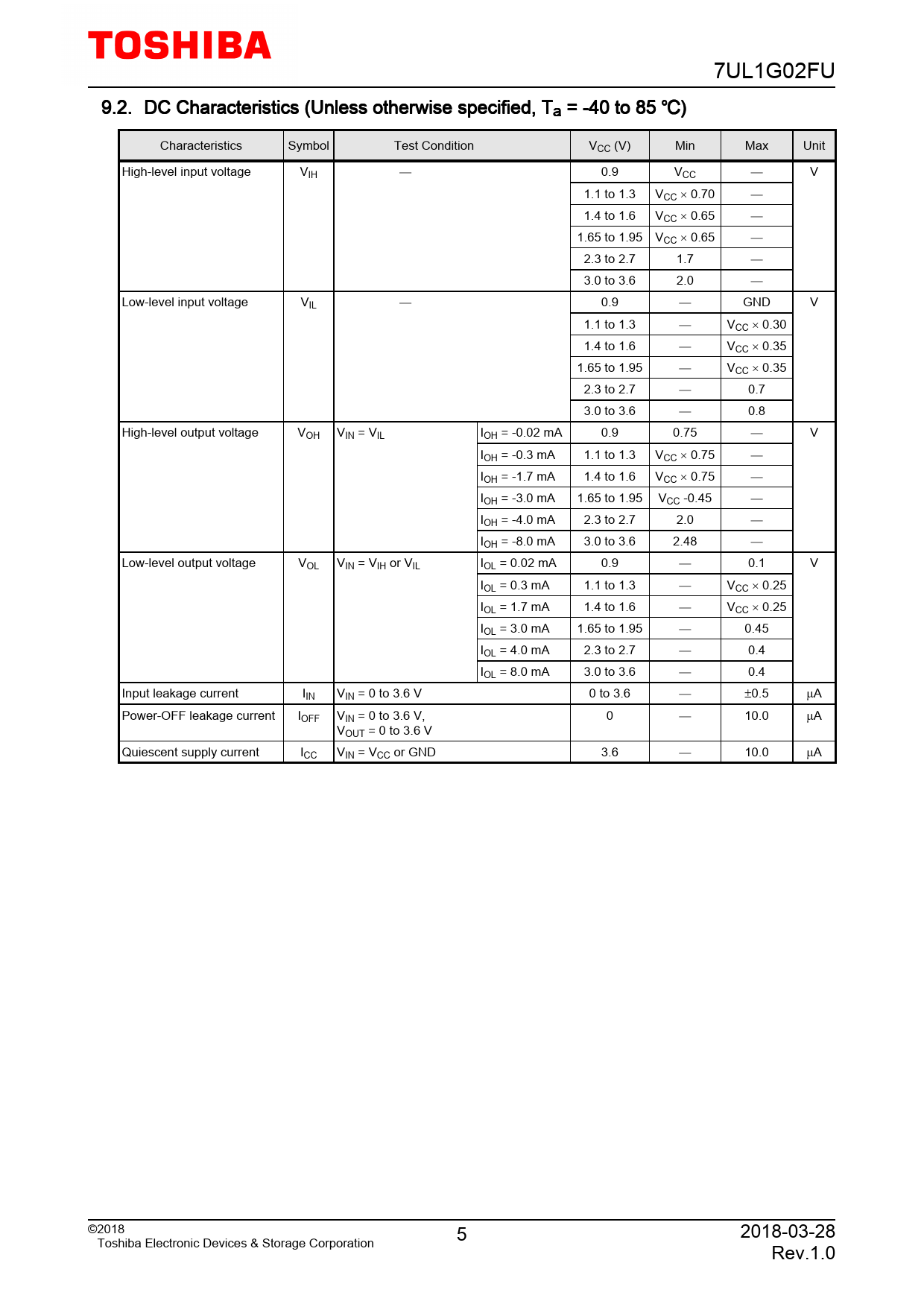

7UL1G02FU 9.2. DC Characteristics (Unless otherwise specified, Ta = -40 to 85 ) Characteristics Symbol Test Condition VCC (V) Min Max Unit High-level input voltage VIH  0.9 VCC  V 1.1 to 1.3 VCC × 0.70  1.4 to 1.6 VCC × 0.65  1.65 to 1.95 VCC × 0.65  2.3 to 2.7 1.7  3.0 to 3.6 2.0  Low-level input voltage VIL  0.9  GND V 1.1 to 1.3  VCC × 0.30 1.4 to 1.6  VCC × 0.35 1.65 to 1.95  VCC × 0.35 2.3 to 2.7  0.7 3.0 to 3.6  0.8 High-level output voltage VOH VIN = VIL IOH = -0.02 mA 0.9 0.75  V IOH = -0.3 mA 1.1 to 1.3 VCC × 0.75  IOH = -1.7 mA 1.4 to 1.6 VCC × 0.75  IOH = -3.0 mA 1.65 to 1.95 VCC -0.45  IOH = -4.0 mA 2.3 to 2.7 2.0  IOH = -8.0 mA 3.0 to 3.6 2.48  Low-level output voltage VOL VIN = VIH or VIL IOL = 0.02 mA 0.9  0.1 V IOL = 0.3 mA 1.1 to 1.3  VCC × 0.25 IOL = 1.7 mA 1.4 to 1.6  VCC × 0.25 IOL = 3.0 mA 1.65 to 1.95  0.45 IOL = 4.0 mA 2.3 to 2.7  0.4 IOL = 8.0 mA 3.0 to 3.6  0.4 Input leakage current IIN VIN = 0 to 3.6 V 0 to 3.6  ±0.5 µA Power-OFF leakage current IOFF VIN = 0 to 3.6 V, 0  10.0 µA VOUT = 0 to 3.6 V Quiescent supply current ICC VIN = VCC or GND 3.6  10.0 µA ©2018 5 2018-03-28 Toshiba Electronic Devices & Storage Corporation Rev.1.0
