Datasheet 7UL1T32FU (Toshiba) - 4

制造商Toshiba
描述2-Input OR Gate with Level Shifting. L-MOS LVP series
页数 / 页7 / 4 — 7UL1T32FU. 9. Electrical. Characteristics. 9.1. DC. Characteristics. …
文件格式/大小PDF / 147 Kb
文件语言英语

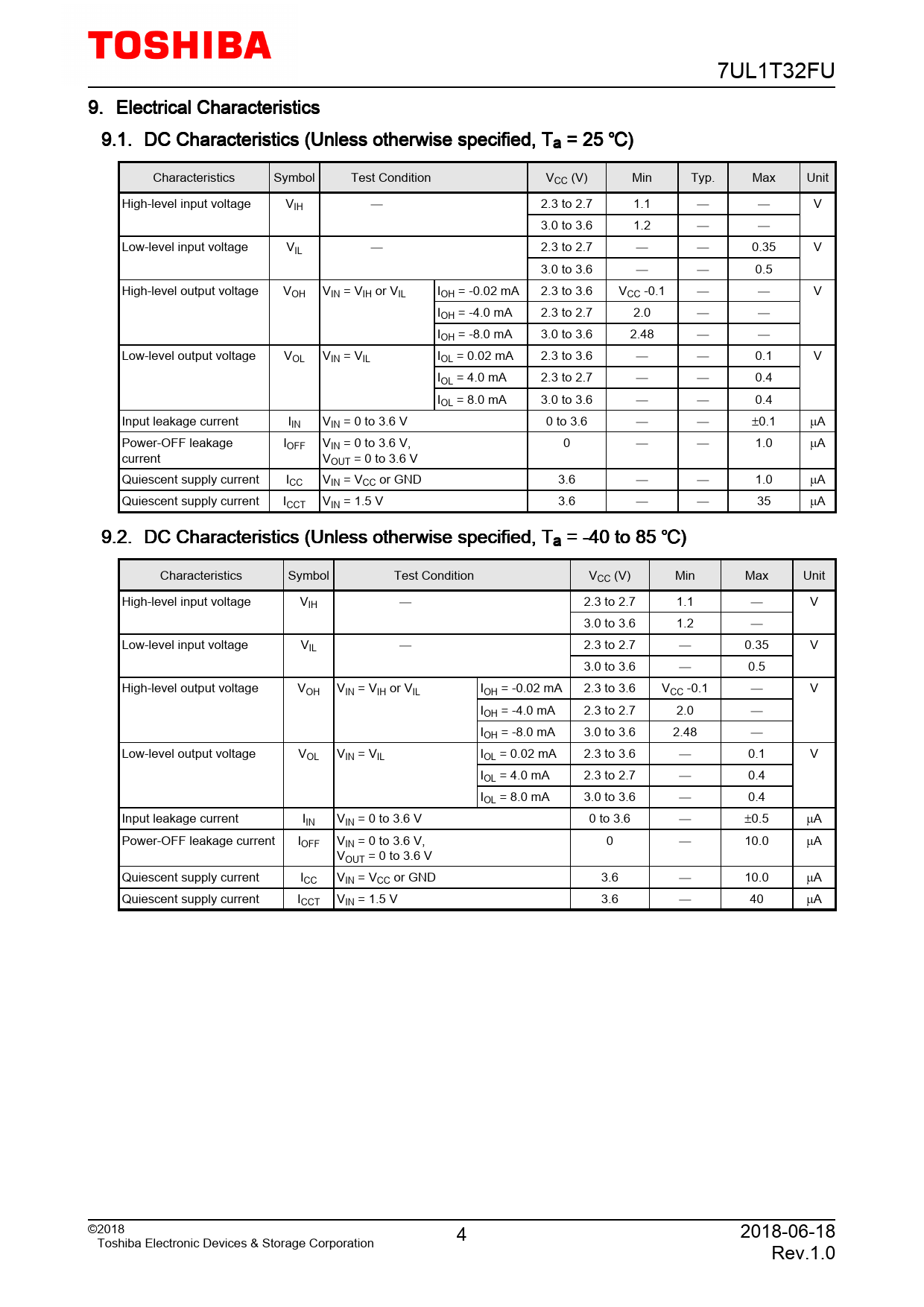

7UL1T32FU. 9. Electrical. Characteristics. 9.1. DC. Characteristics. (Unless. otherwise. specified,. Ta. =. 25. ). Characteristics. Symbol. Test

7UL1T32FU 9 Electrical Characteristics 9.1 DC Characteristics (Unless otherwise specified, Ta = 25 ) Characteristics Symbol Test

该数据表的模型线

7UL1T

文件文字版本

7UL1T32FU 9. Electrical Characteristics 9.1. DC Characteristics (Unless otherwise specified, Ta = 25 ) Characteristics Symbol Test Condition VCC (V) Min Typ. Max Unit High-level input voltage VIH  2.3 to 2.7 1.1   V 3.0 to 3.6 1.2   Low-level input voltage VIL  2.3 to 2.7   0.35 V 3.0 to 3.6   0.5 High-level output voltage VOH VIN = VIH or VIL IOH = -0.02 mA 2.3 to 3.6 VCC -0.1   V IOH = -4.0 mA 2.3 to 2.7 2.0   IOH = -8.0 mA 3.0 to 3.6 2.48   Low-level output voltage VOL VIN = VIL IOL = 0.02 mA 2.3 to 3.6   0.1 V IOL = 4.0 mA 2.3 to 2.7   0.4 IOL = 8.0 mA 3.0 to 3.6   0.4 Input leakage current IIN VIN = 0 to 3.6 V 0 to 3.6   ±0.1 µA Power-OFF leakage IOFF VIN = 0 to 3.6 V, 0   1.0 µA current VOUT = 0 to 3.6 V Quiescent supply current ICC VIN = VCC or GND 3.6   1.0 µA Quiescent supply current ICCT VIN = 1.5 V 3.6   35 µA 9.2. DC Characteristics (Unless otherwise specified, Ta = -40 to 85 ) Characteristics Symbol Test Condition VCC (V) Min Max Unit High-level input voltage VIH  2.3 to 2.7 1.1  V 3.0 to 3.6 1.2  Low-level input voltage VIL  2.3 to 2.7  0.35 V 3.0 to 3.6  0.5 High-level output voltage VOH VIN = VIH or VIL IOH = -0.02 mA 2.3 to 3.6 VCC -0.1  V IOH = -4.0 mA 2.3 to 2.7 2.0  IOH = -8.0 mA 3.0 to 3.6 2.48  Low-level output voltage VOL VIN = VIL IOL = 0.02 mA 2.3 to 3.6  0.1 V IOL = 4.0 mA 2.3 to 2.7  0.4 IOL = 8.0 mA 3.0 to 3.6  0.4 Input leakage current IIN VIN = 0 to 3.6 V 0 to 3.6  ±0.5 µA Power-OFF leakage current IOFF VIN = 0 to 3.6 V, 0  10.0 µA VOUT = 0 to 3.6 V Quiescent supply current ICC VIN = VCC or GND 3.6  10.0 µA Quiescent supply current ICCT VIN = 1.5 V 3.6  40 µA ©2018 4 2018-06-18 Toshiba Electronic Devices & Storage Corporation Rev.1.0
