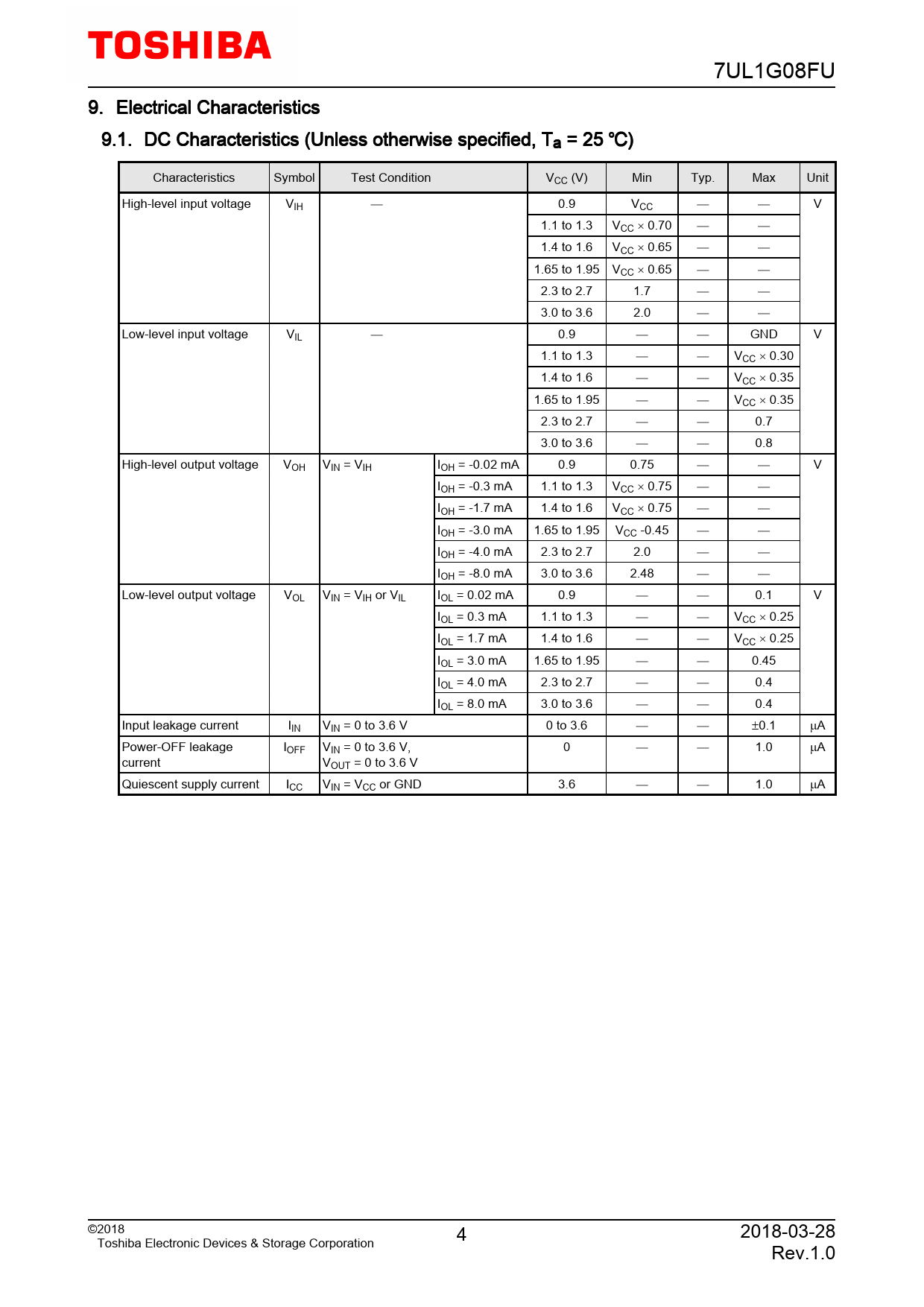

7UL1G08FU 9. Electrical Characteristics 9.1. DC Characteristics (Unless otherwise specified, Ta = 25 ) Characteristics Symbol Test Condition VCC (V) Min Typ. Max Unit High-level input voltage VIH  0.9 VCC   V 1.1 to 1.3 VCC × 0.70   1.4 to 1.6 VCC × 0.65   1.65 to 1.95 VCC × 0.65   2.3 to 2.7 1.7   3.0 to 3.6 2.0   Low-level input voltage VIL  0.9   GND V 1.1 to 1.3   VCC × 0.30 1.4 to 1.6   VCC × 0.35 1.65 to 1.95   VCC × 0.35 2.3 to 2.7   0.7 3.0 to 3.6   0.8 High-level output voltage VOH VIN = VIH IOH = -0.02 mA 0.9 0.75   V IOH = -0.3 mA 1.1 to 1.3 VCC × 0.75   IOH = -1.7 mA 1.4 to 1.6 VCC × 0.75   IOH = -3.0 mA 1.65 to 1.95 VCC -0.45   IOH = -4.0 mA 2.3 to 2.7 2.0   IOH = -8.0 mA 3.0 to 3.6 2.48   Low-level output voltage VOL VIN = VIH or VIL IOL = 0.02 mA 0.9   0.1 V IOL = 0.3 mA 1.1 to 1.3   VCC × 0.25 IOL = 1.7 mA 1.4 to 1.6   VCC × 0.25 IOL = 3.0 mA 1.65 to 1.95   0.45 IOL = 4.0 mA 2.3 to 2.7   0.4 IOL = 8.0 mA 3.0 to 3.6   0.4 Input leakage current IIN VIN = 0 to 3.6 V 0 to 3.6   ±0.1 µA Power-OFF leakage IOFF VIN = 0 to 3.6 V, 0   1.0 µA current VOUT = 0 to 3.6 V Quiescent supply current ICC VIN = VCC or GND 3.6   1.0 µA ©2018 4 2018-03-28 Toshiba Electronic Devices & Storage Corporation Rev.1.0
