Datasheet 7UL1G32FU (Toshiba)

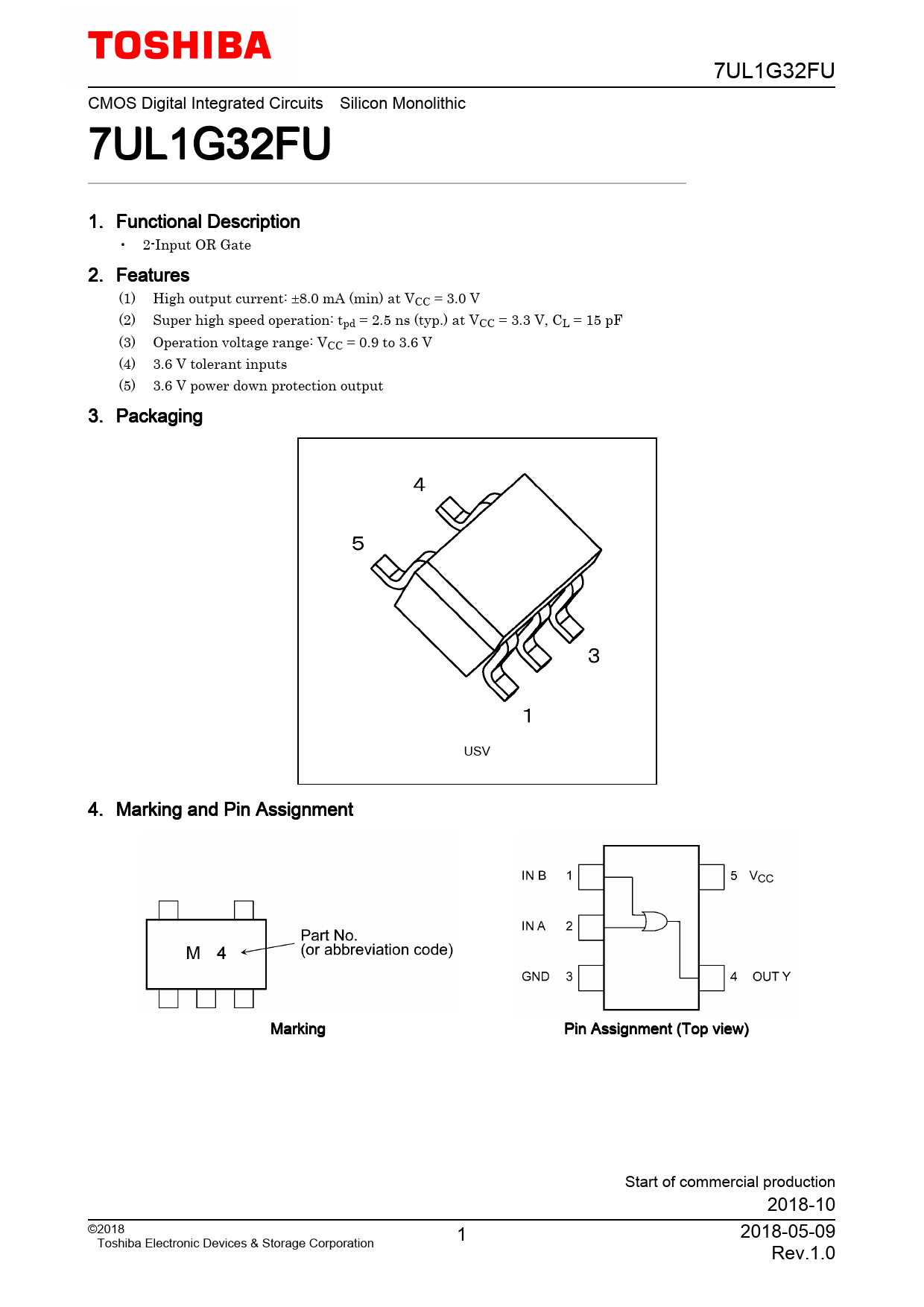

7UL1G32FU CMOS Digital Integrated Circuits Silicon Monolithic 7UL1G32FU 1. Functional Description • 2-Input OR Gate 2. Features (1) High output current: ±8.0 mA (min) at VCC = 3.0 V (2) Super high speed operation: tpd = 2.5 ns (typ.) at VCC = 3.3 V, CL = 15 pF (3) Operation voltage range: VCC = 0.9 to 3.6 V (4) 3.6 V tolerant inputs (5) 3.6 V power down protection output 3. Packaging USV 4. Marking and Pin Assignment Marking Pin Assignment (Top view) Start of commercial production 2018-10 ©2018 1 2018-05-09 Toshiba Electronic Devices & Storage Corporation Rev.1.0
