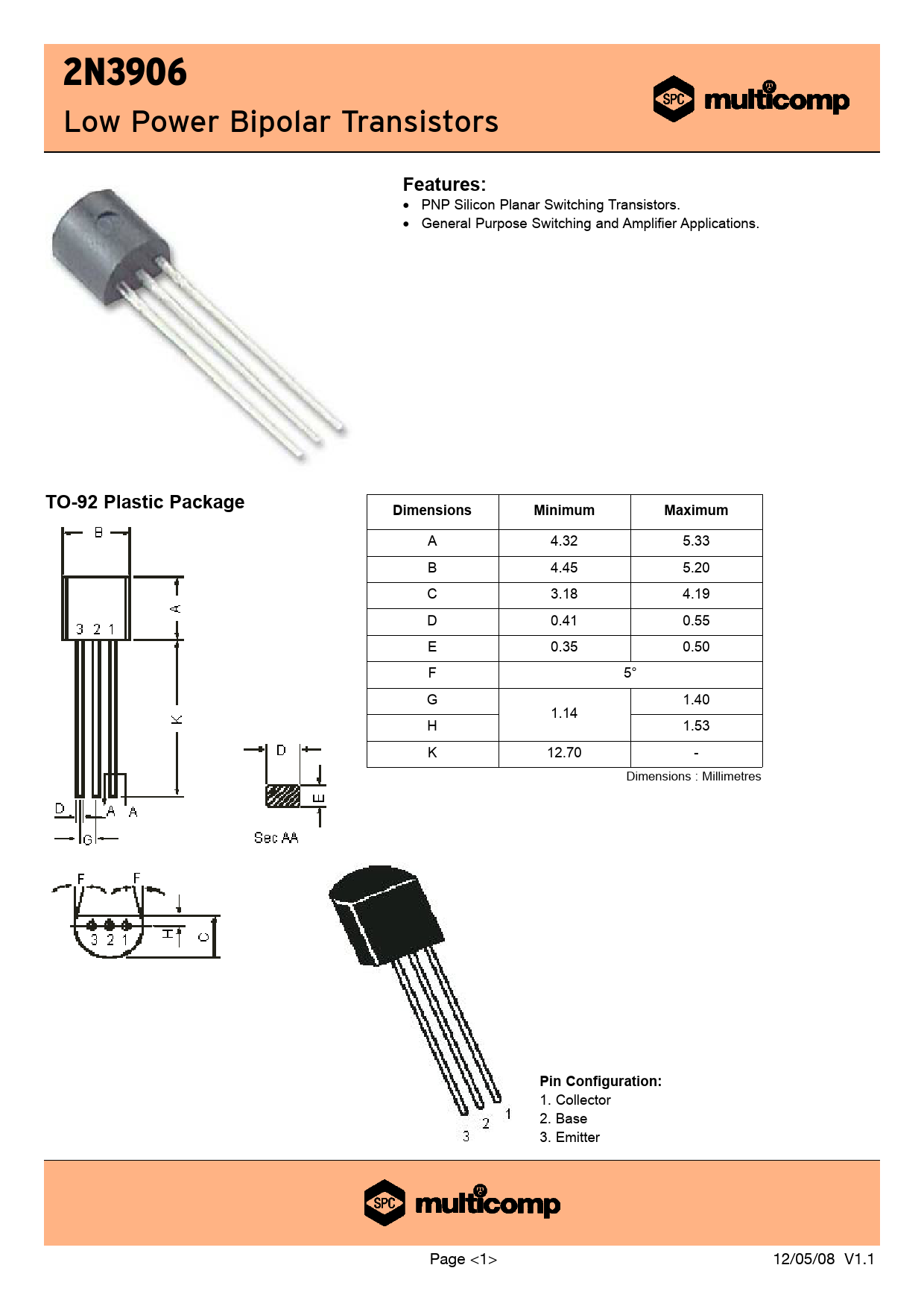

2N3906 Low Power Bipolar Transistors
Features:
• PNP Silicon Planar Switching Transistors. • General Purpose Switching and Amplifier Applications.
TO-92 Plastic Package Dimensions Minimum Maximum
A 4.32 5.33 B 4.45 5.20 C 3.18 4.19 D 0.41 0.55 E 0.35 0.50 F 5° G 1.40 1.14 H 1.53 K 12.70 - Dimensions : Millimetres
Pin Configuration:
1. Collector 2. Base 3. Emitter Page <1> 12/05/08 V1.1
