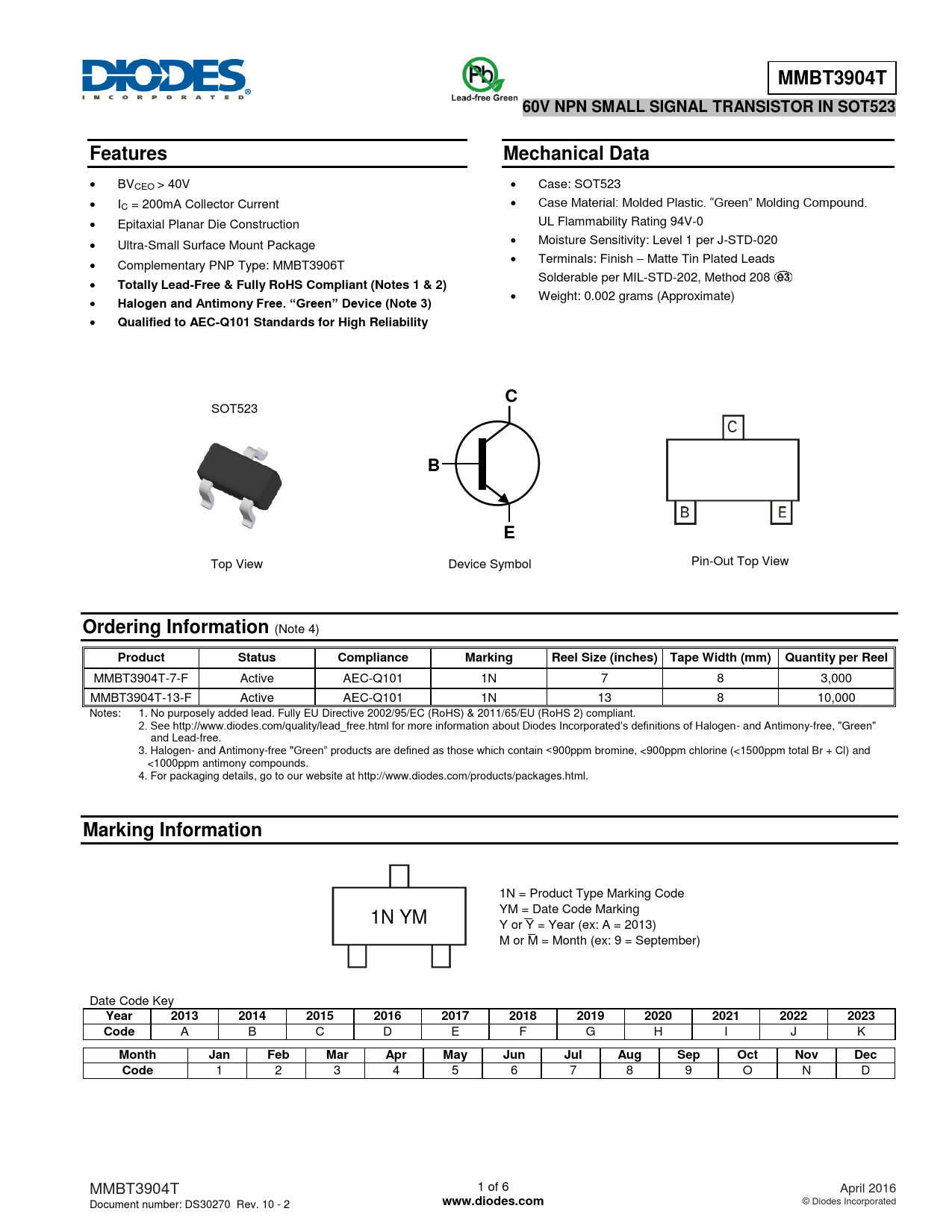

MMBT3904T. 60V NPN SMALL SIGNAL TRANSISTOR IN SOT523. Features. Mechanical Data
该数据表的模型线
文件文字版本
MMBT3904T 60V NPN SMALL SIGNAL TRANSISTOR IN SOT523 Features Mechanical Data
BVCEO > 40V Case: SOT523 I C = 200mA Collector Current Case Material: Molded Plastic. “Green” Molding Compound. Epitaxial Planar Die Construction UL Flammability Rating 94V-0 Ultra-Small Surface Mount Package Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish – Matte Tin Plated Leads Complementary PNP Type: MMBT3906T Solderable per MIL-STD-202, Method 208
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Weight: 0.002 grams (Approximate)
Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability C
SOT523
B E
Top View Device Symbol Pin-Out Top View
Ordering Information
(Note 4)
Product Status Compliance Marking Reel Size (inches) Tape Width (mm) Quantity per Reel
MMBT3904T-7-F Active AEC-Q101 1N 7 8 3,000 MMBT3904T-13-F Active AEC-Q101 1N 13 8 10,000 Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
1N = Product Type Marking Code YM = Date Code Marking K 1 2N N YM M Y Y or Y = Year (ex: A = 2013) M or M = Month (ex: 9 = September) Date Code Key
Year 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 Code
A B C D E F G H I J K
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Code
1 2 3 4 5 6 7 8 9 O N D MMBT3904T 1 of 6 April 2016 Document number: DS30270 Rev. 10 - 2
