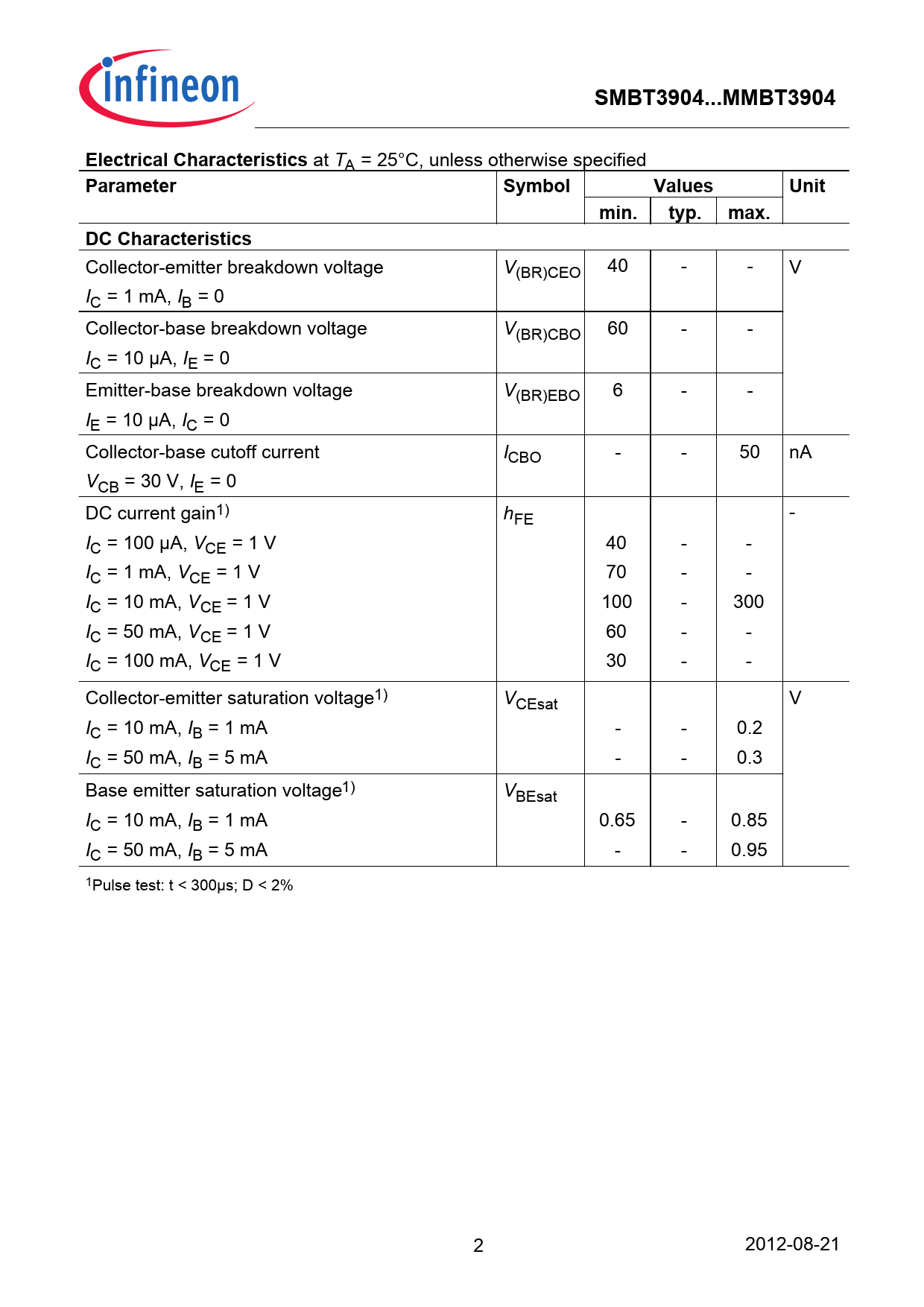

SMBT3904...MMBT3904 Electrical Characteristics
at TA = 25°C, unless otherwise specified
Parameter Symbol Values Unit min. typ. max. DC Characteristics
Collector-emitter breakdown voltage V(BR)CEO 40 - - V IC = 1 mA, IB = 0 Collector-base breakdown voltage V(BR)CBO 60 - - IC = 10 µA, IE = 0 Emitter-base breakdown voltage V(BR)EBO 6 - - IE = 10 µA, IC = 0 Collector-base cutoff current ICBO - - 50 nA VCB = 30 V, IE = 0 DC current gain1) hFE - IC = 100 µA, VCE = 1 V 40 - - IC = 1 mA, VCE = 1 V 70 - - IC = 10 mA, VCE = 1 V 100 - 300 IC = 50 mA, VCE = 1 V 60 - - IC = 100 mA, VCE = 1 V 30 - - Collector-emitter saturation voltage1) VCEsat V IC = 10 mA, IB = 1 mA - - 0.2 IC = 50 mA, IB = 5 mA - - 0.3 Base emitter saturation voltage1) VBEsat IC = 10 mA, IB = 1 mA 0.65 - 0.85 IC = 50 mA, IB = 5 mA - - 0.95 1Pulse test: t < 300µs; D < 2% 2 2012-08-21
