Datasheet 2N3904 (MCC)
| 制造商 | MCC |
| 描述 | NPN General Purpose Amplifier, 40 V DC, TO-92 |
| 页数 / 页 | 5 / 1 — Micro Commercial Components. 2N3904. NPN General. Purpose Amplifier. … |
| 修订版 | E |
| 文件格式/大小 | PDF / 569 Kb |
| 文件语言 | 英语 |

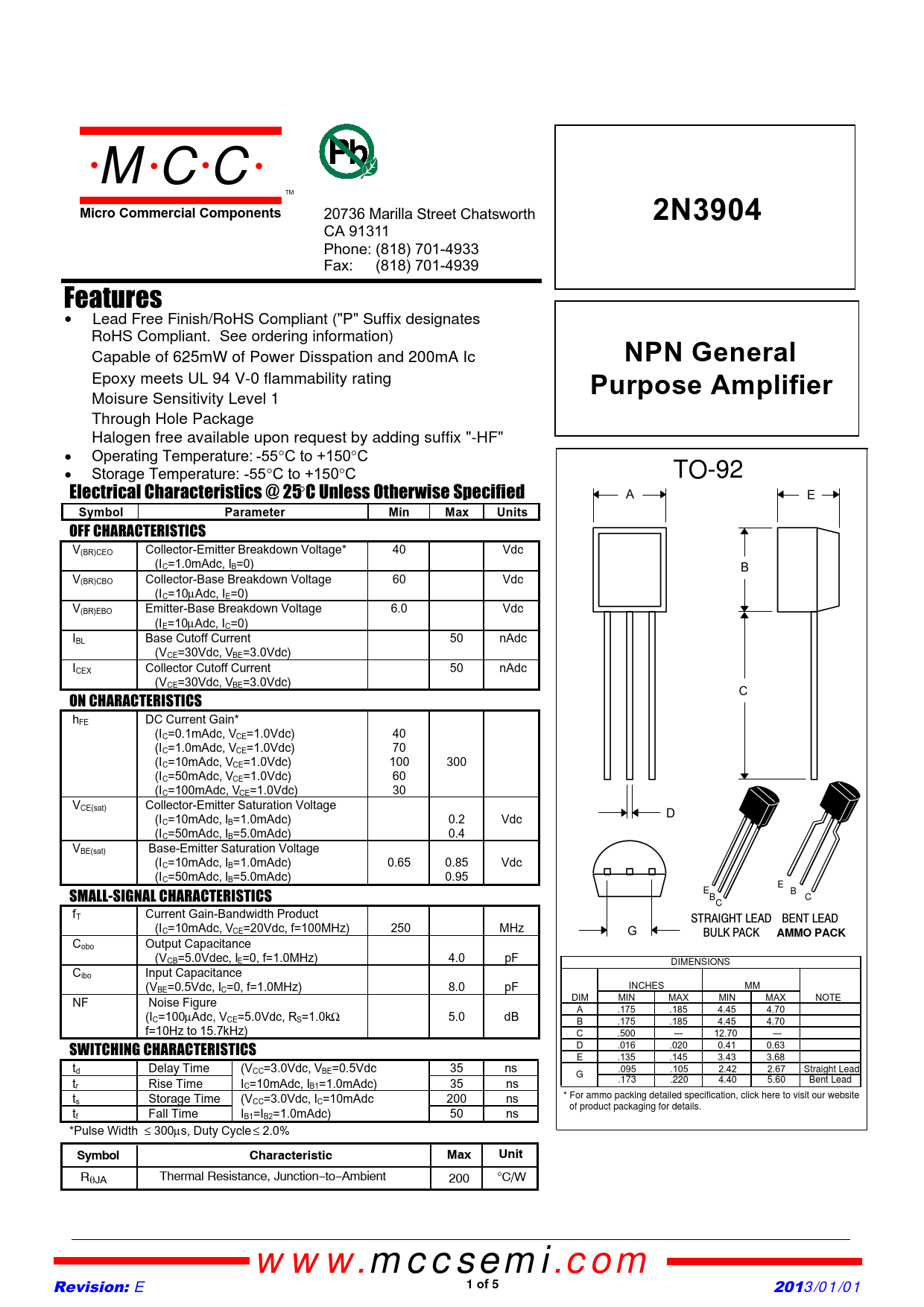

Micro Commercial Components. 2N3904. NPN General. Purpose Amplifier. Symbol. Parameter. Min. Max. Units. AMMO PACK. Characteristic. Unit
该数据表的模型线
文件文字版本
M C C TM
Micro Commercial Components
20736 Marilla Street Chatsworth
2N3904
!"# $ % !"# Features • Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information) x Capable of 625mW of Power Disspation and 200mA Ic
NPN General
x Epoxy meets UL 94 V-0 flammability rating
Purpose Amplifier
x Moisure Sensitivity Level 1 x Through Hole Package x Halogen free available upon request by adding suffix "-HF" • Operating Temperature: -55°C to +150°C • Storage Temperature: -55°C to +150°C TO-92 Electrical Characteristics @ 25°C Unless Otherwise Specified A E
Symbol Parameter Min Max Units
OFF CHARACTERISTICS V(BR)CEO Collector-Emitter Breakdown Voltage* 40 Vdc (IC=1.0mAdc, IB=0) B V(BR)CBO Collector-Base Breakdown Voltage 60 Vdc (IC=10µAdc, IE=0) V(BR)EBO Emitter-Base Breakdown Voltage 6.0 Vdc (IE=10µAdc, IC=0) IBL Base Cutoff Current 50 nAdc (VCE=30Vdc, VBE=3.0Vdc) ICEX Collector Cutoff Current 50 nAdc (VCE=30Vdc, VBE=3.0Vdc) C ON CHARACTERISTICS hFE DC Current Gain* (IC=0.1mAdc, VCE=1.0Vdc) 40 (IC=1.0mAdc, VCE=1.0Vdc) 70 (IC=10mAdc, VCE=1.0Vdc) 100 300 (IC=50mAdc, VCE=1.0Vdc) 60 (IC=100mAdc, VCE=1.0Vdc) 30 VCE(sat) Collector-Emitter Saturation Voltage D (IC=10mAdc, IB=1.0mAdc) 0.2 Vdc (IC=50mAdc, IB=5.0mAdc) 0.4 VBE(sat) Base-Emitter Saturation Voltage (IC=10mAdc, IB=1.0mAdc) 0.65 0.85 Vdc (IC=50mAdc, IB=5.0mAdc) 0.95 E SMALL-SIGNAL CHARACTERISTICS E B B C C fT Current Gain-Bandwidth Product STRAIGHT LEAD BENT LEAD (IC=10mAdc, VCE=20Vdc, f=100MHz) 250 MHz G BULK PACK
AMMO PACK
Cobo Output Capacitance (VCB=5.0Vdec, IE=0, f=1.0MHz) 4.0 pF DIMENSIONS Cibo Input Capacitance (V INCHES MM BE=0.5Vdc, IC=0, f=1.0MHz) 8.0 pF NF Noise Figure DIM MIN MAX MIN MAX NOTE A .175 .185 4.45 4.70 (IC=100µAdc, VCE=5.0Vdc, RS=1.0kΩ 5.0 dB B .175 .185 4.45 4.70 f=10Hz to 15.7kHz) C .500 --- 12.70 --- SWITCHING CHARACTERISTICS D .016 .020 0.41 0.63 E .135 .145 3.43 3.68 td Delay Time (VCC=3.0Vdc, VBE=0.5Vdc 35 ns .095 .105 2.42 2.67 Straight Lead G t .173 .220 4.40 5.60 Bent Lead r Rise Time IC=10mAdc, IB1=1.0mAdc) 35 ns t * For ammo packing detailed specification, click here to visit our website s Storage Time (VCC=3.0Vdc, IC=10mAdc 200 ns of product packaging for details. tf Fall Time IB1=IB2=1.0mAdc) 50 ns *Pulse Width ≤ 300µs, Duty Cycle ≤ 2.0%
Symbol Characteristic Max Unit
R Thermal Resistance, Junction−to−Ambient qJA 200 °C/W www.mccsemi .com Revision: E
1 of 5
2013/01/01
