Datasheet BC847, BC547 (NXP) - 3
| 制造商 | NXP |
| 描述 | 45 V, 100 mA NPN general-purpose transistors |
| 页数 / 页 | 15 / 3 — NXP Semiconductors. BC847/BC547 series. 45 V, 100 mA NPN general-purpose … |
| 文件格式/大小 | PDF / 100 Kb |
| 文件语言 | 英语 |
NXP Semiconductors. BC847/BC547 series. 45 V, 100 mA NPN general-purpose transistors. Table 3. Pinning. Pin. Description
该数据表的模型线
文件文字版本
link to page 4

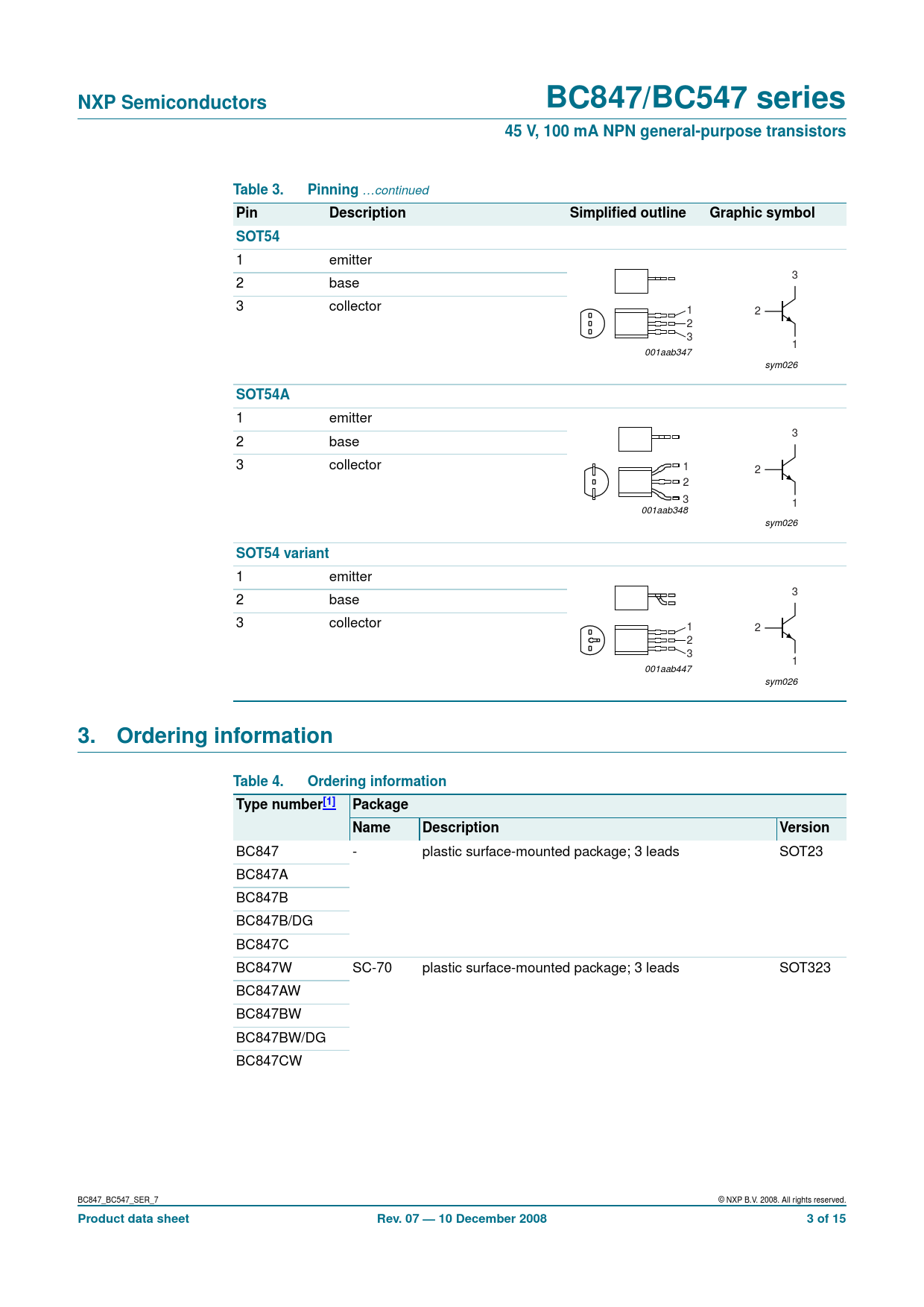

NXP Semiconductors BC847/BC547 series 45 V, 100 mA NPN general-purpose transistors Table 3. Pinning
…continued
Pin Description Simplified outline Graphic symbol SOT54
1 emitter 3 2 base 3 collector 1 2 2 3 1 001aab347 sym026
SOT54A
1 emitter 3 2 base 3 collector 1 2 2 3 1 001aab348 sym026
SOT54 variant
1 emitter 3 2 base 3 collector 1 2 2 3 1 001aab447 sym026
3. Ordering information Table 4. Ordering information Type number[1] Package Name Description Version
BC847 - plastic surface-mounted package; 3 leads SOT23 BC847A BC847B BC847B/DG BC847C BC847W SC-70 plastic surface-mounted package; 3 leads SOT323 BC847AW BC847BW BC847BW/DG BC847CW BC847_BC547_SER_7 © NXP B.V. 2008. All rights reserved.
Product data sheet Rev. 07 — 10 December 2008 3 of 15
Document Outline 1. Product profile 1.1 General description 1.2 Features 1.3 Applications 1.4 Quick reference data 2. Pinning information 3. Ordering information 4. Marking 5. Limiting values 6. Thermal characteristics 7. Characteristics 8. Package outline 9. Packing information 10. Revision history 11. Legal information 11.1 Data sheet status 11.2 Definitions 11.3 Disclaimers 11.4 Trademarks 12. Contact information 13. Contents
