Datasheet HMC589AST89E (Analog Devices)
| 制造商 | Analog Devices |
| 描述 | InGaP HBT GAIN BLOCK MMIC AMPLIFIER, DC - 4 GHz |
| 页数 / 页 | 6 / 1 — HMC589AST89E. InGaP HBT GAIN BLOCK. MMIC AMPLIFIER, DC - 4 GHz. Typical … |
| 文件格式/大小 | PDF / 914 Kb |
| 文件语言 | 英语 |
HMC589AST89E. InGaP HBT GAIN BLOCK. MMIC AMPLIFIER, DC - 4 GHz. Typical Applications. Features. Functional Diagram
该数据表的模型线
文件文字版本

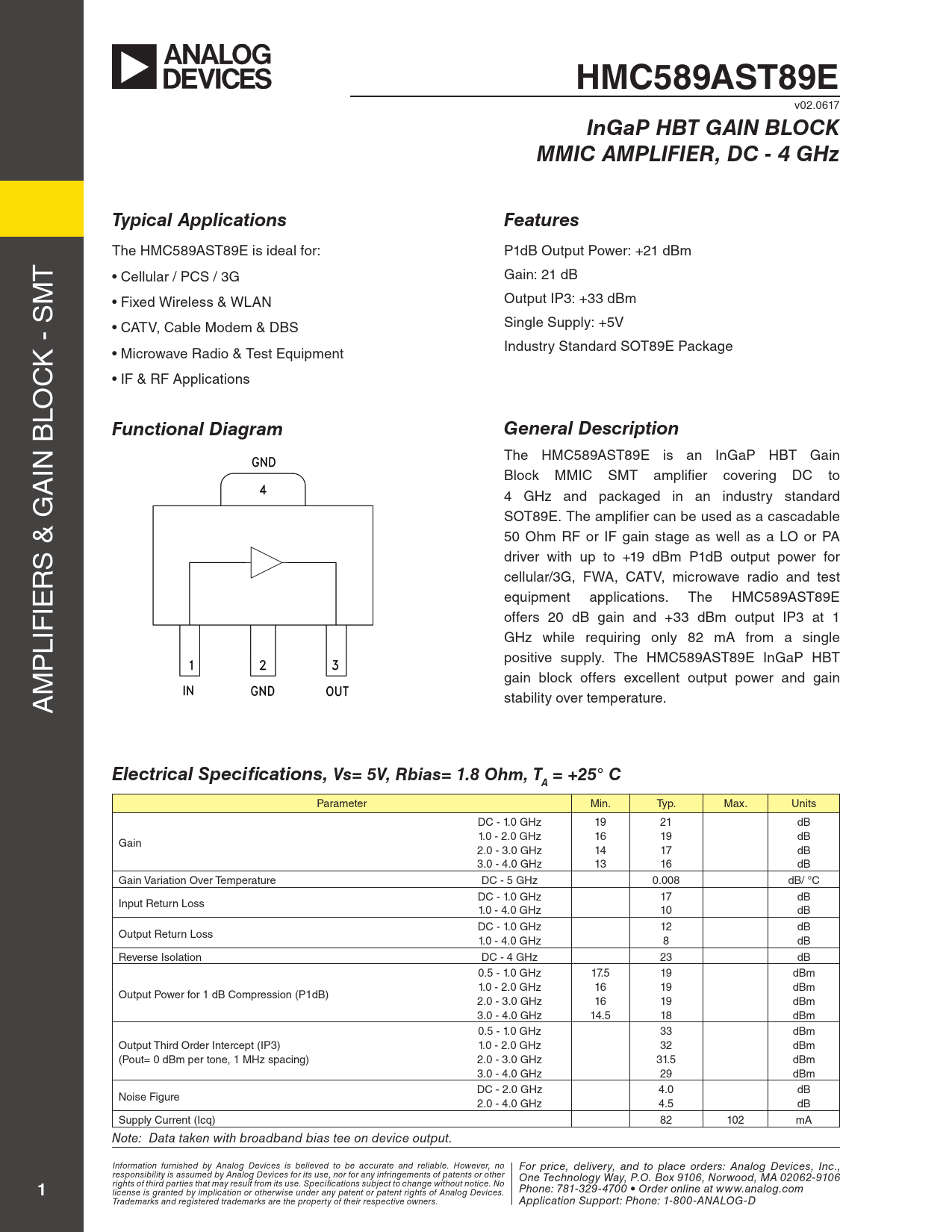

HMC589AST89E
v02.0617
InGaP HBT GAIN BLOCK MMIC AMPLIFIER, DC - 4 GHz Typical Applications Features
The HMC589AST89E is ideal for: P1dB Output Power: +21 dBm T • Cel ular / PCS / 3G Gain: 21 dB M Output IP3: +33 dBm • Fixed Wireless & WLAN Single Supply: +5V • CATV, Cable Modem & DBS K - S Industry Standard SOT89E Package • Microwave Radio & Test Equipment C • IF & RF Applications LO
Functional Diagram General Description
IN B The HMC589AST89E is an InGaP HBT Gain A Block MMIC SMT amplifier covering DC to 4 GHz and packaged in an industry standard SOT89E. The amplifier can be used as a cascadable 50 Ohm RF or IF gain stage as well as a LO or PA S & G driver with up to +19 dBm P1dB output power for R cel ular/3G, FWA, CATV, microwave radio and test IE equipment applications. The HMC589AST89E offers 20 dB gain and +33 dBm output IP3 at 1 LIF GHz while requiring only 82 mA from a single P positive supply. The HMC589AST89E InGaP HBT M gain block offers excel ent output power and gain A stability over temperature.
Electrical Specifications, Vs= 5V, Rbias= 1.8 Ohm, T = +25° C A
Parameter Min. Typ. Max. Units DC - 1.0 GHz 19 21 dB 1.0 - 2.0 GHz 16 19 dB Gain 2.0 - 3.0 GHz 14 17 dB 3.0 - 4.0 GHz 13 16 dB Gain Variation Over Temperature DC - 5 GHz 0.008 dB/ °C DC - 1.0 GHz 17 dB Input Return Loss 1.0 - 4.0 GHz 10 dB DC - 1.0 GHz 12 dB Output Return Loss 1.0 - 4.0 GHz 8 dB Reverse Isolation DC - 4 GHz 23 dB 0.5 - 1.0 GHz 17.5 19 dBm 1.0 - 2.0 GHz 16 19 dBm Output Power for 1 dB Compression (P1dB) 2.0 - 3.0 GHz 16 19 dBm 3.0 - 4.0 GHz 14.5 18 dBm 0.5 - 1.0 GHz 33 dBm Output Third Order Intercept (IP3) 1.0 - 2.0 GHz 32 dBm (Pout= 0 dBm per tone, 1 MHz spacing) 2.0 - 3.0 GHz 31.5 dBm 3.0 - 4.0 GHz 29 dBm DC - 2.0 GHz 4.0 dB Noise Figure 2.0 - 4.0 GHz 4.5 dB Supply Current (Icq) 82 102 mA Note: Data taken with broadband bias tee on device output. Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
