制造商 | Analog Devices |
描述 | 30 MHz to 6 GHz RF/IF Gain Block |
页数 / 页 | 16 / 1 — 30 MHz to 6 GHz. RF/IF Gain Block. Data Sheet. ADL5611. FEATURES. … |
修订版 | B |
文件格式/大小 | PDF / 503 Kb |
文件语言 | 英语 |
30 MHz to 6 GHz. RF/IF Gain Block. Data Sheet. ADL5611. FEATURES. FUNCTIONAL BLOCK DIAGRAM. Fixed gain of 22.2 dB. GND. (2)
该数据表的模型线
文件文字版本

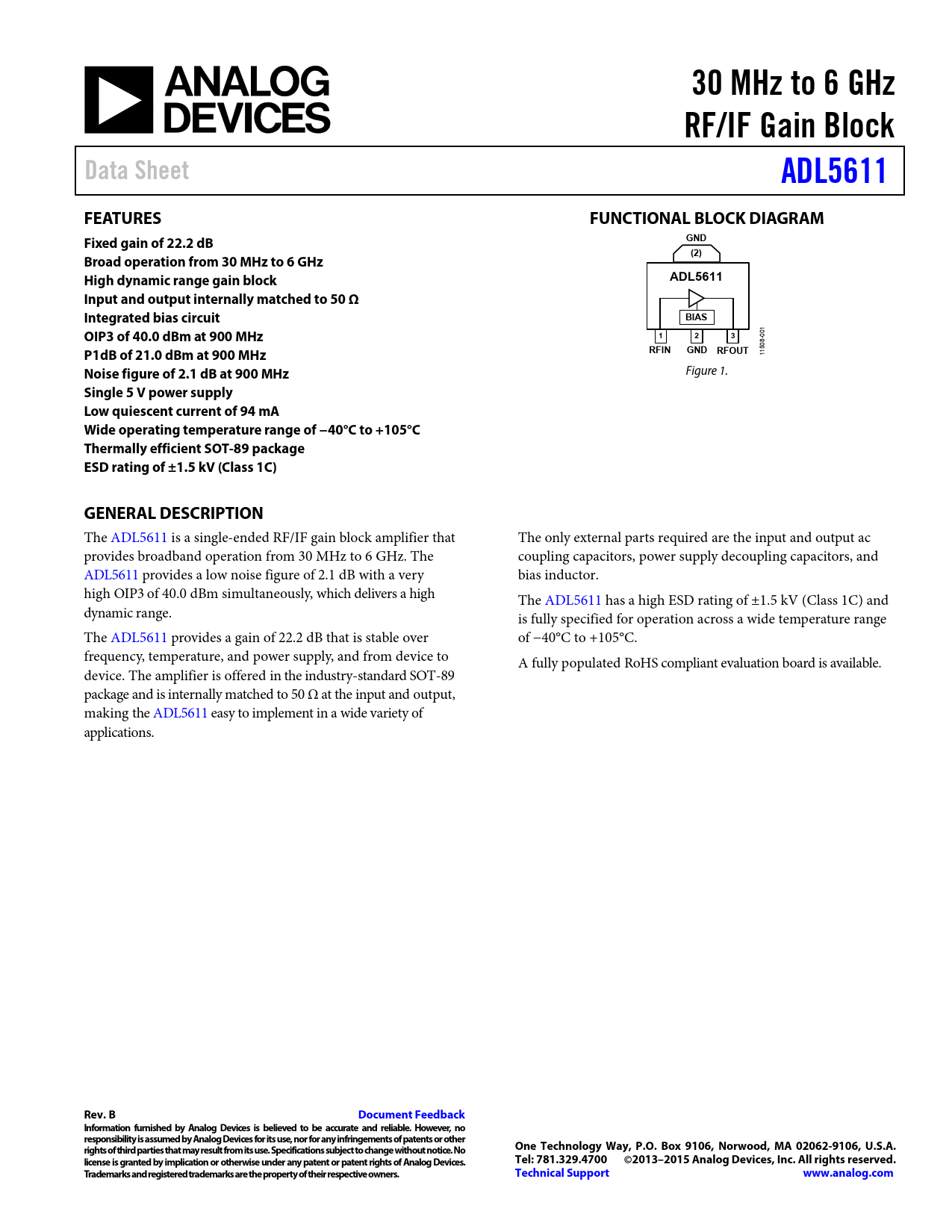

30 MHz to 6 GHz RF/IF Gain Block Data Sheet ADL5611 FEATURES FUNCTIONAL BLOCK DIAGRAM Fixed gain of 22.2 dB GND (2) Broad operation from 30 MHz to 6 GHz High dynamic range gain block ADL5611 Input and output internally matched to 50 Ω Integrated bias circuit BIAS OIP3 of 40.0 dBm at 900 MHz 1 2 3
001
P1dB of 21.0 dBm at 900 MHz RFIN GND RFOUT
1508-1
Noise figure of 2.1 dB at 900 MHz
Figure 1.
Single 5 V power supply Low quiescent current of 94 mA Wide operating temperature range of −40°C to +105°C Thermally efficient SOT-89 package ESD rating of ±1.5 kV (Class 1C) GENERAL DESCRIPTION
The ADL5611 is a single-ended RF/IF gain block amplifier that The only external parts required are the input and output ac provides broadband operation from 30 MHz to 6 GHz. The coupling capacitors, power supply decoupling capacitors, and ADL5611 provides a low noise figure of 2.1 dB with a very bias inductor. high OIP3 of 40.0 dBm simultaneously, which delivers a high The ADL5611 has a high ESD rating of ±1.5 kV (Class 1C) and dynamic range. is fully specified for operation across a wide temperature range The ADL5611 provides a gain of 22.2 dB that is stable over of −40°C to +105°C. frequency, temperature, and power supply, and from device to A fully populated RoHS compliant evaluation board is available. device. The amplifier is offered in the industry-standard SOT-89 package and is internal y matched to 50 Ω at the input and output, making the ADL5611 easy to implement in a wide variety of applications.
Rev. B Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2013–2015 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS TYPICAL SCATTERING PARAMETERS (S-PARAMETERS) ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS 500 MHz TO 6 GHz FREQUENCY BAND 30 MHz TO 500 MHz FREQUENCY BAND GENERAL APPLICATIONS INFORMATION BASIC CONNECTIONS SOLDERING INFORMATION AND RECOMMENDED PCB LAND PATTERN W-CDMA ACPR PERFORMANCE EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
