Datasheet ADL5601 (Analog Devices) - 3
| 制造商 | Analog Devices |
| 描述 | 50 MHz TO 4.0 GHz RF/IF Gain Block |
| 页数 / 页 | 16 / 3 — Data Sheet. ADL5601. SPECIFICATIONS. Table 1. Parameter. Test … |
| 修订版 | A |
| 文件格式/大小 | PDF / 323 Kb |
| 文件语言 | 英语 |

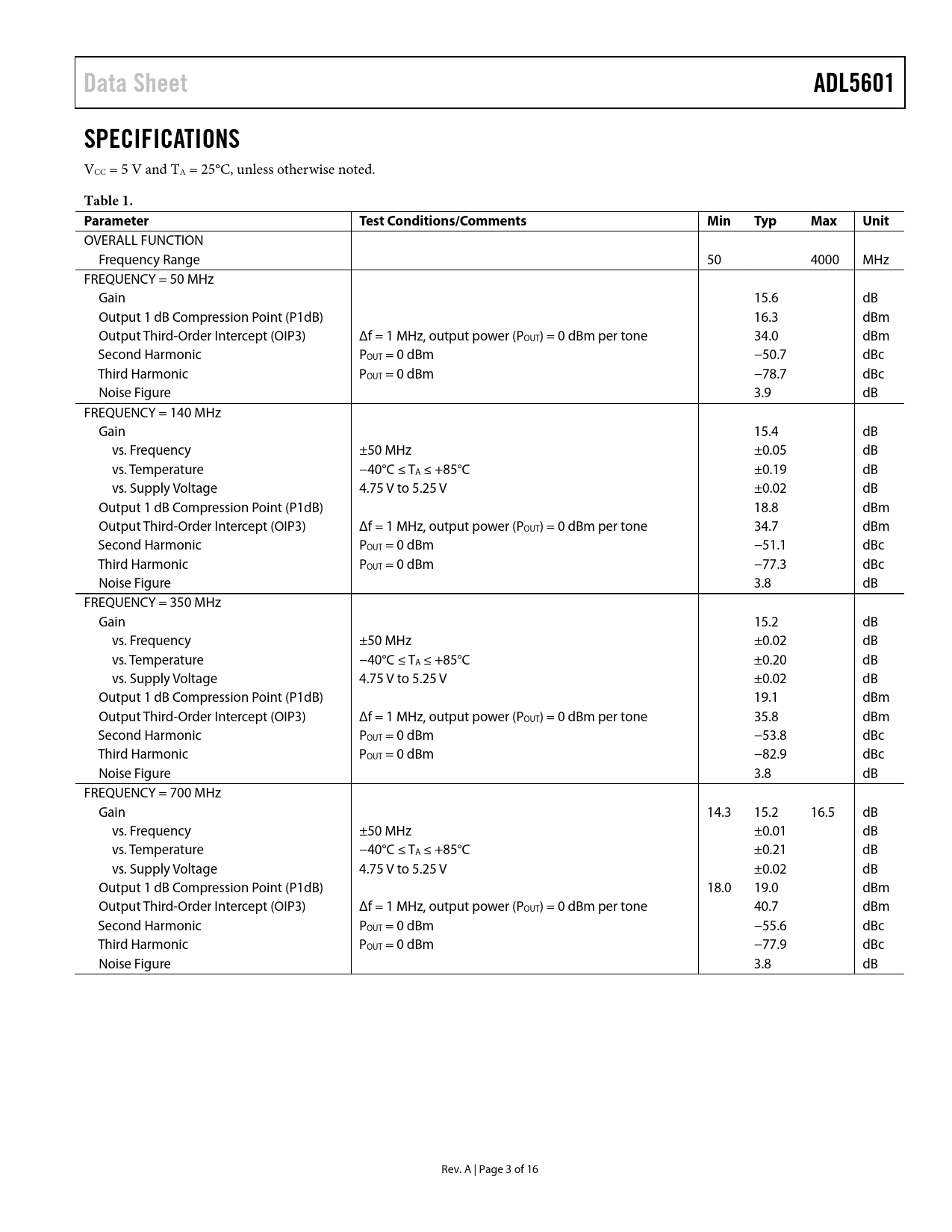

Data Sheet. ADL5601. SPECIFICATIONS. Table 1. Parameter. Test Conditions/Comments. Min. Typ. Max. Unit
该数据表的模型线
文件文字版本
Data Sheet ADL5601 SPECIFICATIONS
VCC = 5 V and TA = 25°C, unless otherwise noted.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
OVERALL FUNCTION Frequency Range 50 4000 MHz FREQUENCY = 50 MHz Gain 15.6 dB Output 1 dB Compression Point (P1dB) 16.3 dBm Output Third-Order Intercept (OIP3) Δf = 1 MHz, output power (POUT) = 0 dBm per tone 34.0 dBm Second Harmonic POUT = 0 dBm −50.7 dBc Third Harmonic POUT = 0 dBm −78.7 dBc Noise Figure 3.9 dB FREQUENCY = 140 MHz Gain 15.4 dB vs. Frequency ±50 MHz ±0.05 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.19 dB vs. Supply Voltage 4.75 V to 5.25 V ±0.02 dB Output 1 dB Compression Point (P1dB) 18.8 dBm Output Third-Order Intercept (OIP3) Δf = 1 MHz, output power (POUT) = 0 dBm per tone 34.7 dBm Second Harmonic POUT = 0 dBm −51.1 dBc Third Harmonic POUT = 0 dBm −77.3 dBc Noise Figure 3.8 dB FREQUENCY = 350 MHz Gain 15.2 dB vs. Frequency ±50 MHz ±0.02 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.20 dB vs. Supply Voltage 4.75 V to 5.25 V ±0.02 dB Output 1 dB Compression Point (P1dB) 19.1 dBm Output Third-Order Intercept (OIP3) Δf = 1 MHz, output power (POUT) = 0 dBm per tone 35.8 dBm Second Harmonic POUT = 0 dBm −53.8 dBc Third Harmonic POUT = 0 dBm −82.9 dBc Noise Figure 3.8 dB FREQUENCY = 700 MHz Gain 14.3 15.2 16.5 dB vs. Frequency ±50 MHz ±0.01 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.21 dB vs. Supply Voltage 4.75 V to 5.25 V ±0.02 dB Output 1 dB Compression Point (P1dB) 18.0 19.0 dBm Output Third-Order Intercept (OIP3) Δf = 1 MHz, output power (POUT) = 0 dBm per tone 40.7 dBm Second Harmonic POUT = 0 dBm −55.6 dBc Third Harmonic POUT = 0 dBm −77.9 dBc Noise Figure 3.8 dB Rev. A | Page 3 of 16 Document Outline Features Functional Block Diagram General Description Revision History Specifications Typical Scattering Parameters (S-Parameters) Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Basic Connections Soldering Information and Recommended PCB Land Pattern W-CDMA ACPR Performance Evaluation Board Outline Dimensions Ordering Guide
