Data Sheet. ADL5541. TYPICAL SCATTERING PARAMETERS. Table 2. S11. S21. S12. S22
该数据表的模型线
文件文字版本

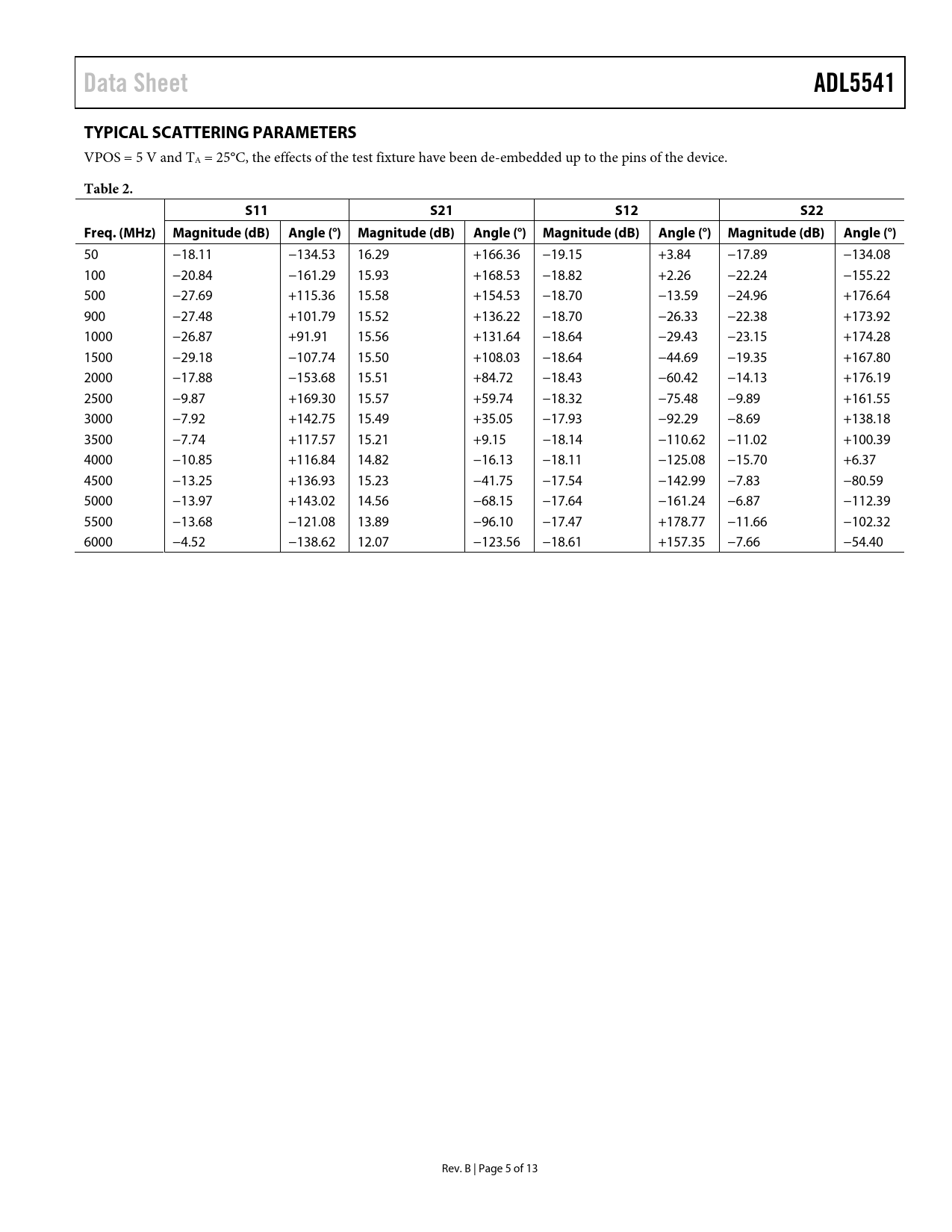

Data Sheet ADL5541 TYPICAL SCATTERING PARAMETERS
VPOS = 5 V and TA = 25°C, the effects of the test fixture have been de-embedded up to the pins of the device.
Table 2. S11 S21 S12 S22 Freq. (MHz) Magnitude (dB) Angle (°) Magnitude (dB) Angle (°) Magnitude (dB) Angle (°) Magnitude (dB) Angle (°)
50 −18.11 −134.53 16.29 +166.36 −19.15 +3.84 −17.89 −134.08 100 −20.84 −161.29 15.93 +168.53 −18.82 +2.26 −22.24 −155.22 500 −27.69 +115.36 15.58 +154.53 −18.70 −13.59 −24.96 +176.64 900 −27.48 +101.79 15.52 +136.22 −18.70 −26.33 −22.38 +173.92 1000 −26.87 +91.91 15.56 +131.64 −18.64 −29.43 −23.15 +174.28 1500 −29.18 −107.74 15.50 +108.03 −18.64 −44.69 −19.35 +167.80 2000 −17.88 −153.68 15.51 +84.72 −18.43 −60.42 −14.13 +176.19 2500 −9.87 +169.30 15.57 +59.74 −18.32 −75.48 −9.89 +161.55 3000 −7.92 +142.75 15.49 +35.05 −17.93 −92.29 −8.69 +138.18 3500 −7.74 +117.57 15.21 +9.15 −18.14 −110.62 −11.02 +100.39 4000 −10.85 +116.84 14.82 −16.13 −18.11 −125.08 −15.70 +6.37 4500 −13.25 +136.93 15.23 −41.75 −17.54 −142.99 −7.83 −80.59 5000 −13.97 +143.02 14.56 −68.15 −17.64 −161.24 −6.87 −112.39 5500 −13.68 −121.08 13.89 −96.10 −17.47 +178.77 −11.66 −102.32 6000 −4.52 −138.62 12.07 −123.56 −18.61 +157.35 −7.66 −54.40 Rev. B | Page 5 of 13 Document Outline FEATURES FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TYPICAL SCATTERING PARAMETERS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OPERATING TO 20 MHz BASIC CONNECTIONS SOLDERING INFORMATION AND RECOMMENDED PCB LAND PATTERN EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
