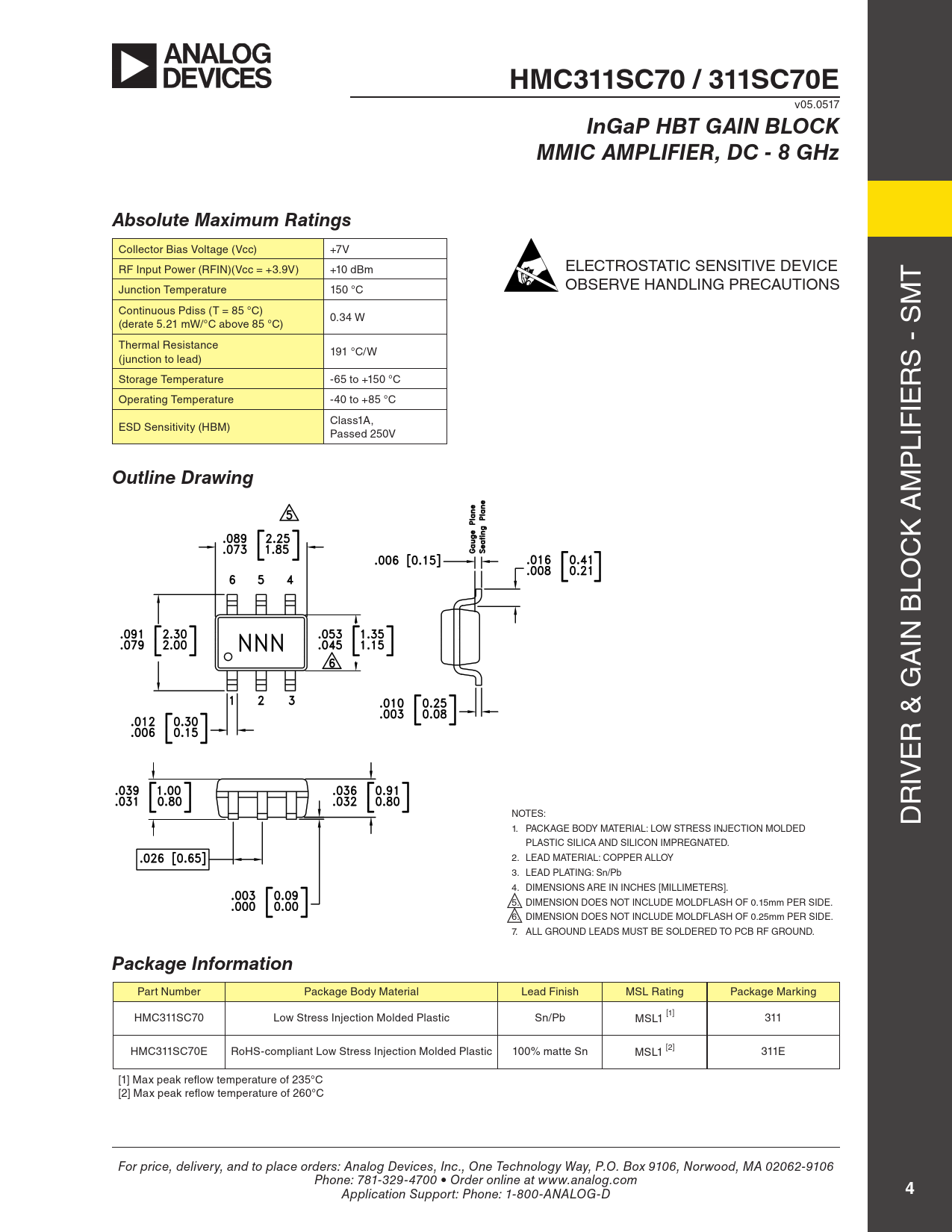

HMC311SC70 / 311SC70E. InGaP HBT GAIN BLOCK. MMIC AMPLIFIER, DC - 8 GHz. Absolute Maximum Ratings. Outline Drawing
该数据表的模型线
文件文字版本
HMC311SC70 / 311SC70E
v05.0517
InGaP HBT GAIN BLOCK MMIC AMPLIFIER, DC - 8 GHz Absolute Maximum Ratings
Collector Bias Voltage (Vcc) +7V RF Input Power (RFIN)(Vcc = +3.9V) +10 dBm ELECTROSTATIC SENSITIVE DEVICE T Junction Temperature 150 °C OBSERVE HANDLING PRECAUTIONS M Continuous Pdiss (T = 85 °C) 0.34 W (derate 5.21 mW/°C above 85 °C) Thermal Resistance 191 °C/W (junction to lead) S - S Storage Temperature -65 to +150 °C R Operating Temperature -40 to +85 °C IE Class1A, ESD Sensitivity (HBM) Passed 250V LIF P
Outline Drawing
M K A C LO IN B A R & G E IV R NOTES: D 1. PACKAGE BODY MATERIAL: LOW STRESS INJECTION MOLDED PLASTIC SILICA AND SILICON IMPREGNATED. 2. LEAD MATERIAL: COPPER ALLOY 3. LEAD PLATING: Sn/Pb 4. DIMENSIONS ARE IN INCHES [MILLIMETERS]. 5. DIMENSION DOES NOT INCLUDE MOLDFLASH OF 0.15mm PER SIDE. 6. DIMENSION DOES NOT INCLUDE MOLDFLASH OF 0.25mm PER SIDE. 7. ALL GROUND LEADS MUST BE SOLDERED TO PCB RF GROUND.
Package Information
Part Number Package Body Material Lead Finish MSL Rating Package Marking HMC311SC70 Low Stress Injection Molded Plastic Sn/Pb MSL1 [1] 311 HMC311SC70E RoHS-compliant Low Stress Injection Molded Plastic 100% matte Sn MSL1 [2] 311E [1] Max peak reflow temperature of 235°C [2] Max peak reflow temperature of 260°C For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
4
