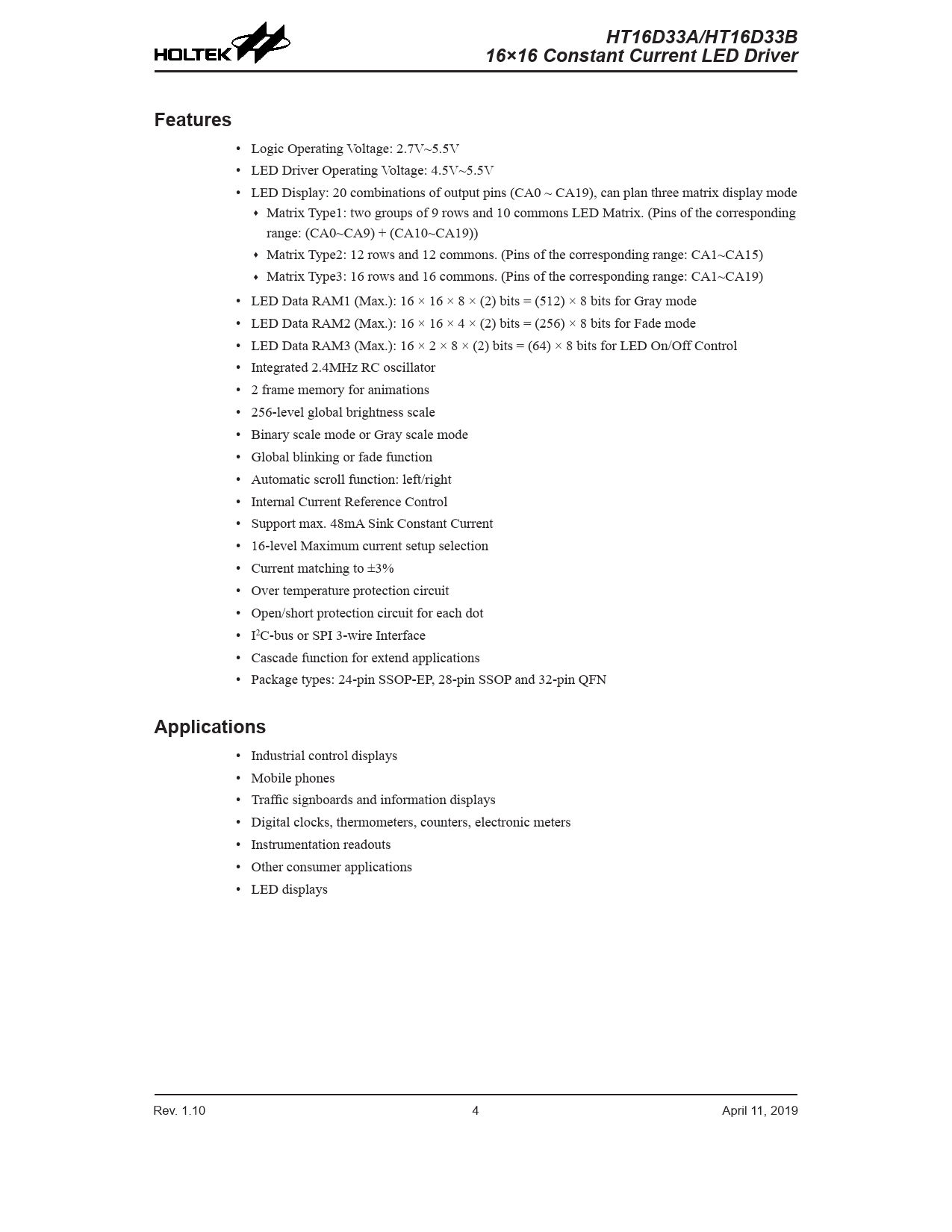

HT16D33A/HT16D33B HT16D33A/HT16D33B 16×16 Constant Current LED Driver 16×16 Constant Current LED Driver Features
• Logic Operating Voltage: 2.7V~5.5V • LED Driver Operating Voltage: 4.5V~5.5V • LED Display: 20 combinations of output pins (CA0 ~ CA19), can plan three matrix display mode ♦ Matrix Type1: two groups of 9 rows and 10 commons LED Matrix. (Pins of the corresponding range: (CA0~CA9) + (CA10~CA19)) ♦ Matrix Type2: 12 rows and 12 commons. (Pins of the corresponding range: CA1~CA15) ♦ Matrix Type3: 16 rows and 16 commons. (Pins of the corresponding range: CA1~CA19) • LED Data RAM1 (Max.): 16 × 16 × 8 × (2) bits = (512) × 8 bits for Gray mode • LED Data RAM2 (Max.): 16 × 16 × 4 × (2) bits = (256) × 8 bits for Fade mode • LED Data RAM3 (Max.): 16 × 2 × 8 × (2) bits = (64) × 8 bits for LED On/Off Control • Integrated 2.4MHz RC oscillator • 2 frame memory for animations • 256-level global brightness scale • Binary scale mode or Gray scale mode • Global blinking or fade function • Automatic scroll function: left/right • Internal Current Reference Control • Support max. 48mA Sink Constant Current • 16-level Maximum current setup selection • Current matching to ±3% • Over temperature protection circuit • Open/short protection circuit for each dot • I2C-bus or SPI 3-wire Interface • Cascade function for extend applications • Package types: 24-pin SSOP-EP, 28-pin SSOP and 32-pin QFN
Applications
• Industrial control displays • Mobile phones • Traffic signboards and information displays • Digital clocks, thermometers, counters, electronic meters • Instrumentation readouts • Other consumer applications • LED displays Rev. 1.10 4 April 11, 2019 Rev. 1.10 5 April 11, 2019 Document Outline Features Applications General Description Selection Table Block Diagram Pin Assignment Pin Description Approximate Internal Connections Absolute Maximum Ratings D.C. Characteristics A.C. Characteristics A.C. Characteristics – SPI 3-wire Serial Bus A.C. Characteristics – I2C Serial Bus Timing Diagrams SPI 3-wire Serial Bus Timing I2C Bus Timing Power on Reset Timing Functional Description Power-on Reset LED Driver System Oscillator Driver Outputs Address Pointer Open/Short Detection Function Over Temperature Protection Constant Current Output Load Supply Voltage – LED_VDD Display Data RAM – DDRAM PWM Data WidthTiming Fade Data RAM LED On/Off Control RAM Data Command Description Command Table Software Reset RAM Page Address Set Picture Display Address Movie Display Start Address Movie Playing Length Movie Cycle Time Movie Page Delay Time Last Page Set Picture Scrolling Control Display Mode Configuration Mode Fade Function Control Global Fade Time Cascade Mode System Control Constant Current Ratio Brightness Control Mode Control Blanking Control Voltage Setting Read Open Detection Data Read Short Detection Data Read Register Status Read Movie Frame Status Read Movie Loop Status Read Function Flag SPI 3-wire Serial Interface Write Operation Read Operation I2C Serial Interface Data Validity START and STOP Conditions Byte Format Acknowledge Slave Addressing Write Operation Read Operation Power Supply Sequence Operation Flow Charts Application Circuits LED Matrix Circuit RGB LED Matrix Circuit Single LED IC Application Cascade Function Cascade Control Flow Package Information 24-pin SSOP-EP (150mil) Outline Dimensions 28-pin SSOP (150mil) Outline Dimensions SAW Type 32-pin QFN (4mm×4mm×0.75mm) Outline Dimensions
