Datasheet IM231-M6S1B / IM231-M6T2B (Infineon) - 8
| 制造商 | Infineon |
| 描述 | 600 V three-phase Intelligent Power Module |
| 页数 / 页 | 24 / 8 — CIPOS™ Micro. IM231-M6S1B / IM231-M6T2B. Thermal Characteristics. Table … |
| 修订版 | 02_00 |
| 文件格式/大小 | PDF / 1.4 Mb |
| 文件语言 | 英语 |
CIPOS™ Micro. IM231-M6S1B / IM231-M6T2B. Thermal Characteristics. Table 6. Parameter. Symbol. Conditions. Min. Typ. Max. Units
该数据表的模型线
文件文字版本

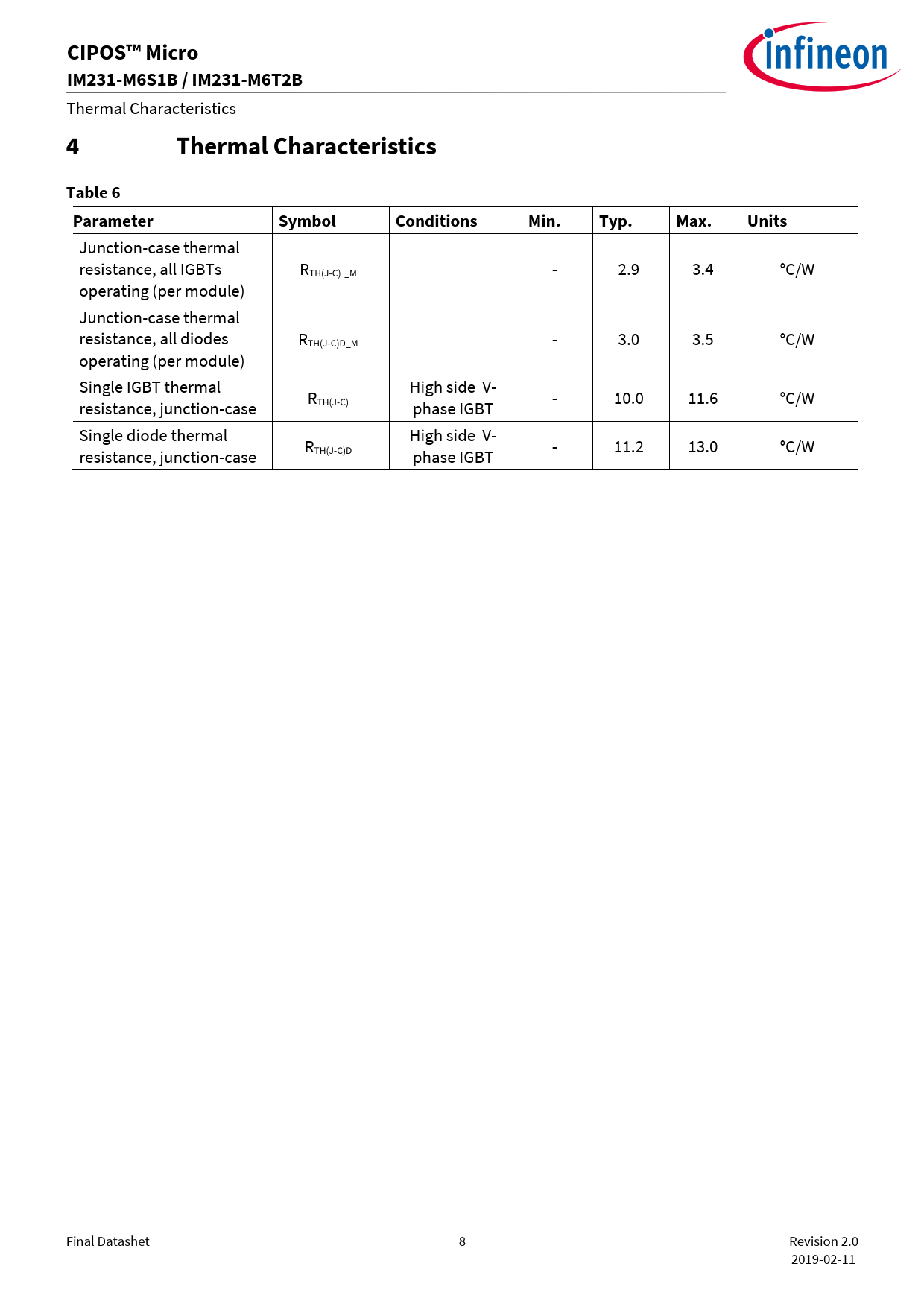

CIPOS™ Micro IM231-M6S1B / IM231-M6T2B
Thermal Characteristics
4 Thermal Characteristics Table 6 Parameter Symbol Conditions Min. Typ. Max. Units
Junction-case thermal resistance, all IGBTs RTH(J-C) _M - 2.9 3.4 °C/W operating (per module) Junction-case thermal resistance, all diodes RTH(J-C)D_M - 3.0 3.5 °C/W operating (per module) Single IGBT thermal High side V- R - 10.0 11.6 °C/W resistance, junction-case TH(J-C) phase IGBT Single diode thermal High side V- R - 11.2 13.0 °C/W resistance, junction-case TH(J-C)D phase IGBT Final Datashet 8 Revision 2.0 2019-02-11 Document Outline Description Features Potential Applications Product validation Table 1 Part Ordering Table Table of contents 1 Internal Electrical Schematic 2 Pin Configuration 3 Absolute Maximum Rating 4 Thermal Characteristics 5 Recommended Operating Conditions 6 Static Parameters 7 Dynamic Parameters 8 Thermistor Characteristics 9 Mechanical Characteristics and Ratings 10 Qualification Information 11 Diagrams & Tables 12 Application Guide 13 Package Outline 14 Revision History Disclaimer
Thermal Characteristics
4 Thermal Characteristics Table 6 Parameter Symbol Conditions Min. Typ. Max. Units
Junction-case thermal resistance, all IGBTs RTH(J-C) _M - 2.9 3.4 °C/W operating (per module) Junction-case thermal resistance, all diodes RTH(J-C)D_M - 3.0 3.5 °C/W operating (per module) Single IGBT thermal High side V- R - 10.0 11.6 °C/W resistance, junction-case TH(J-C) phase IGBT Single diode thermal High side V- R - 11.2 13.0 °C/W resistance, junction-case TH(J-C)D phase IGBT Final Datashet 8 Revision 2.0 2019-02-11 Document Outline Description Features Potential Applications Product validation Table 1 Part Ordering Table Table of contents 1 Internal Electrical Schematic 2 Pin Configuration 3 Absolute Maximum Rating 4 Thermal Characteristics 5 Recommended Operating Conditions 6 Static Parameters 7 Dynamic Parameters 8 Thermistor Characteristics 9 Mechanical Characteristics and Ratings 10 Qualification Information 11 Diagrams & Tables 12 Application Guide 13 Package Outline 14 Revision History Disclaimer
