MAX22513 Surge Protected Dual Driver IO-Link Device Transceiver with DC-DC

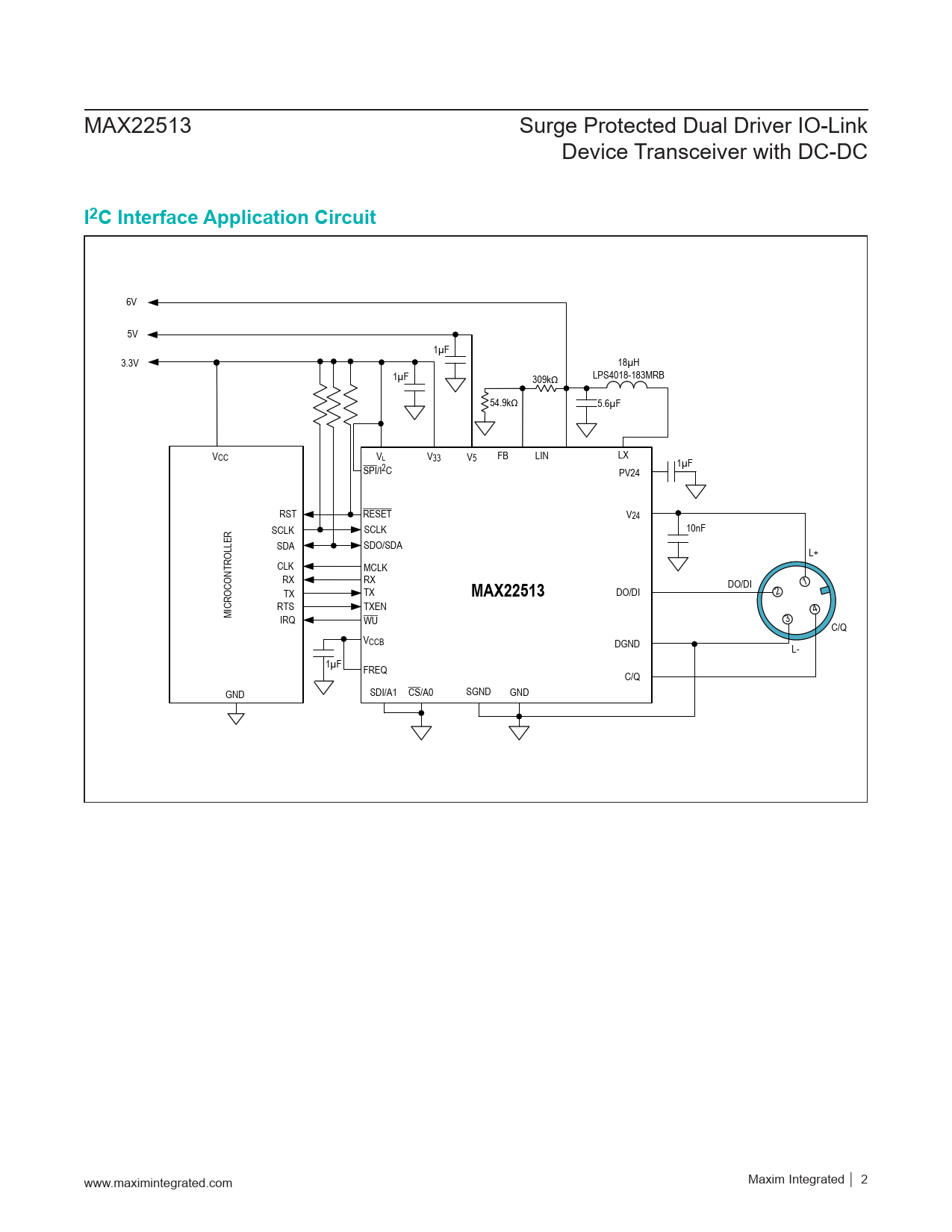

I2C Interface Application Circuit
6V 5V 1µF 3.3V 18µH 1µF 309kΩ LPS4018-183MRB 54.9kΩ 5.6µF VCC VL V33 V5 FB LIN LX 1µF SPI/I2C PV24 RST RESET V24 SCLK SCLK 10nF SDA SDO/SDA L+ CLK MCLK RX RX DO/DI TX TX
MAX22513
1 DO/DI 2 RTS TXEN 4 MICROCONTROLLER IRQ WU 3 C/Q VCCB DGND L- 1µF FREQ C/Q GND SDI/A1 CS/A0 SGND GND www.maximintegrated.com Maxim Integrated │ 2
I2C Interface Application Circuit
6V 5V 1µF 3.3V 18µH 1µF 309kΩ LPS4018-183MRB 54.9kΩ 5.6µF VCC VL V33 V5 FB LIN LX 1µF SPI/I2C PV24 RST RESET V24 SCLK SCLK 10nF SDA SDO/SDA L+ CLK MCLK RX RX DO/DI TX TX
MAX22513
1 DO/DI 2 RTS TXEN 4 MICROCONTROLLER IRQ WU 3 C/Q VCCB DGND L- 1µF FREQ C/Q GND SDI/A1 CS/A0 SGND GND www.maximintegrated.com Maxim Integrated │ 2
