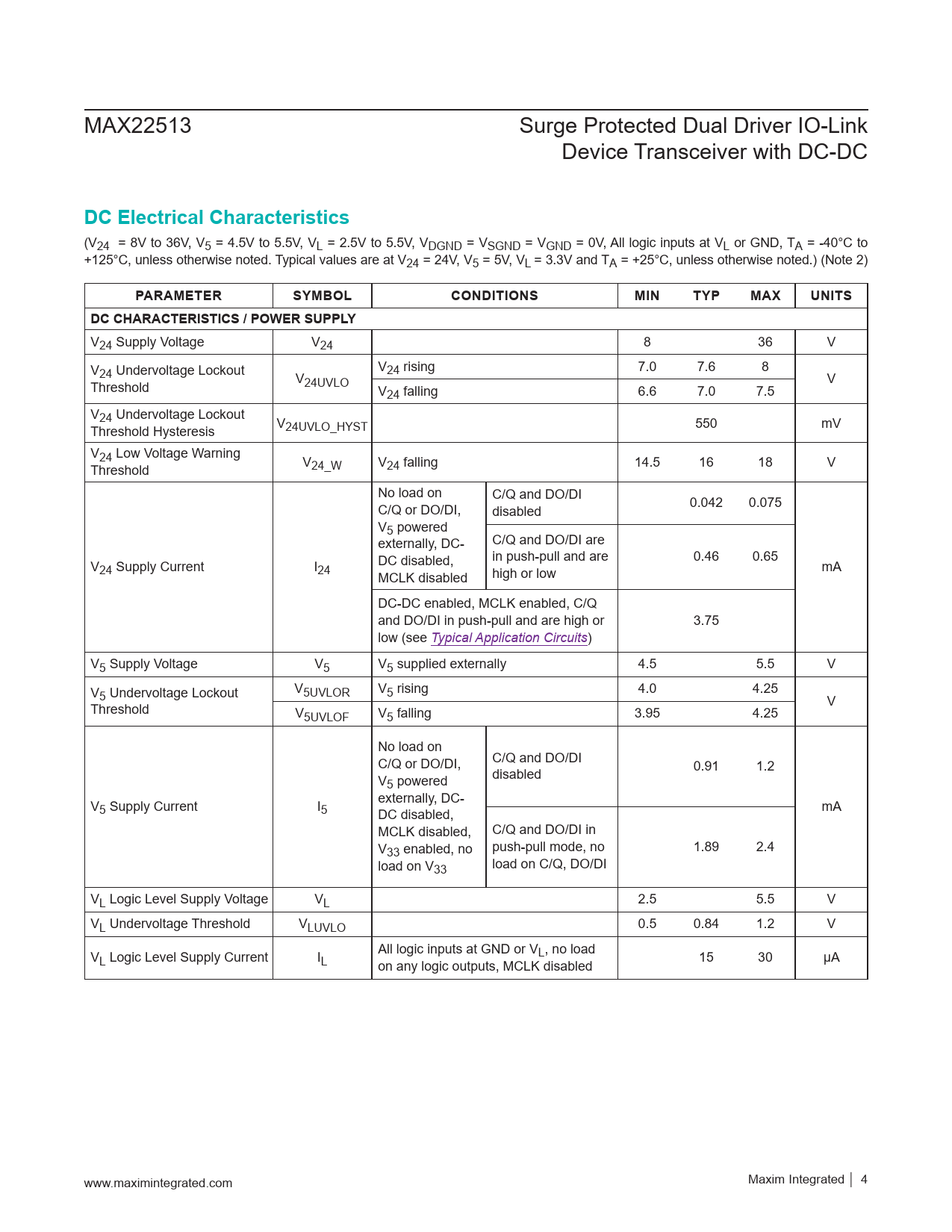

link to page 45 MAX22513 Surge Protected Dual Driver IO-Link Device Transceiver with DC-DC
DC Electrical Characteristics
(V24 = 8V to 36V, V5 = 4.5V to 5.5V, VL = 2.5V to 5.5V, VDGND = VSGND = VGND = 0V, All logic inputs at VL or GND, TA = -40°C to +125°C, unless otherwise noted. Typical values are at V24 = 24V, V5 = 5V, VL = 3.3V and TA = +25°C, unless otherwise noted.) (Note 2)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS DC CHARACTERISTICS / POWER SUPPLY
V24 Supply Voltage V24 8 36 V V24 Undervoltage Lockout V24 rising 7.0 7.6 8 Threshold V24UVLO V V24 falling 6.6 7.0 7.5 V24 Undervoltage Lockout Threshold Hysteresis V24UVLO_HYST 550 mV V24 Low Voltage Warning Threshold V24_W V24 falling 14.5 16 18 V No load on C/Q and DO/DI C/Q or DO/DI, disabled 0.042 0.075 V5 powered externally, DC- C/Q and DO/DI are in push-pull and are 0.46 0.65 V DC disabled, 24 Supply Current I24 mA MCLK disabled high or low DC-DC enabled, MCLK enabled, C/Q and DO/DI in push-pull and are high or 3.75 low (see Typical Application Circuits) V5 Supply Voltage V5 V5 supplied externally 4.5 5.5 V V5 Undervoltage Lockout V5UVLOR V5 rising 4.0 4.25 Threshold V V5UVLOF V5 falling 3.95 4.25 No load on C/Q or DO/DI, C/Q and DO/DI V disabled 0.91 1.2 5 powered V externally, DC- 5 Supply Current I5 DC disabled, mA MCLK disabled, C/Q and DO/DI in V33 enabled, no push-pull mode, no 1.89 2.4 load on V33 load on C/Q, DO/DI VL Logic Level Supply Voltage VL 2.5 5.5 V VL Undervoltage Threshold VLUVLO 0.5 0.84 1.2 V V All logic inputs at GND or VL, no load L Logic Level Supply Current IL on any logic outputs, MCLK disabled 15 30 µA www.maximintegrated.com Maxim Integrated │ 4
