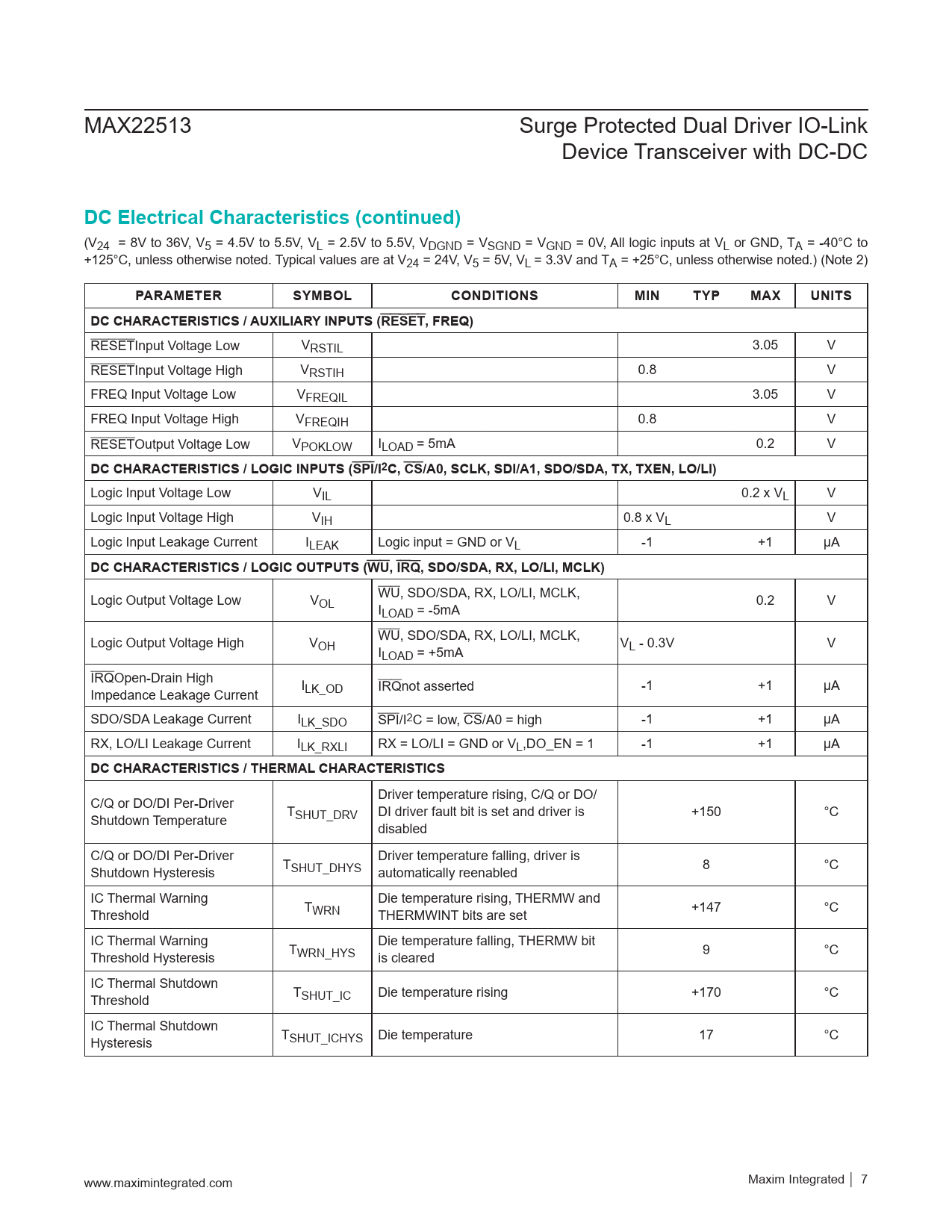

MAX22513 Surge Protected Dual Driver IO-Link Device Transceiver with DC-DC
DC Electrical Characteristics (continued)
(V24 = 8V to 36V, V5 = 4.5V to 5.5V, VL = 2.5V to 5.5V, VDGND = VSGND = VGND = 0V, All logic inputs at VL or GND, TA = -40°C to +125°C, unless otherwise noted. Typical values are at V24 = 24V, V5 = 5V, VL = 3.3V and TA = +25°C, unless otherwise noted.) (Note 2)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS DC CHARACTERISTICS / AUXILIARY INPUTS (RESET, FREQ)
RESETInput Voltage Low VRSTIL 3.05 V RESETInput Voltage High VRSTIH 0.8 V FREQ Input Voltage Low VFREQIL 3.05 V FREQ Input Voltage High VFREQIH 0.8 V RESETOutput Voltage Low VPOKLOW ILOAD = 5mA 0.2 V
DC CHARACTERISTICS / LOGIC INPUTS (SPI/I2C, CS/A0, SCLK, SDI/A1, SDO/SDA, TX, TXEN, LO/LI)
Logic Input Voltage Low VIL 0.2 x VL V Logic Input Voltage High VIH 0.8 x VL V Logic Input Leakage Current ILEAK Logic input = GND or VL -1 +1 μA
DC CHARACTERISTICS / LOGIC OUTPUTS (WU, IRQ, SDO/SDA, RX, LO/LI, MCLK)
Logic Output Voltage Low V WU, SDO/SDA, RX, LO/LI, MCLK, OL 0.2 V ILOAD = -5mA Logic Output Voltage High V WU, SDO/SDA, RX, LO/LI, MCLK, OH V I L - 0.3V V LOAD = +5mA IRQOpen-Drain High I Impedance Leakage Current LK_OD IRQnot asserted -1 +1 μA SDO/SDA Leakage Current ILK_SDO SPI/I2C = low, CS/A0 = high -1 +1 μA RX, LO/LI Leakage Current ILK_RXLI RX = LO/LI = GND or VL,DO_EN = 1 -1 +1 μA
DC CHARACTERISTICS / THERMAL CHARACTERISTICS
C/Q or DO/DI Per-Driver Driver temperature rising, C/Q or DO/ Shutdown Temperature TSHUT_DRV DI driver fault bit is set and driver is +150 °C disabled C/Q or DO/DI Per-Driver Driver temperature falling, driver is Shutdown Hysteresis TSHUT_DHYS automatically reenabled 8 °C IC Thermal Warning Die temperature rising, THERMW and Threshold TWRN THERMWINT bits are set +147 °C IC Thermal Warning Die temperature falling, THERMW bit Threshold Hysteresis TWRN_HYS is cleared 9 °C IC Thermal Shutdown Threshold TSHUT_IC Die temperature rising +170 °C IC Thermal Shutdown Hysteresis TSHUT_ICHYS Die temperature 17 °C www.maximintegrated.com Maxim Integrated │
7
